TR 2000/3000/9650
Shower trolleys and Mobile Bath Lift System
Hygiene Equipment
Designed for People
1. Lower the stretcher by pressing the hydraulic pedal to the
bottom. Remove the pillow, drainage hose and the
mattress.
2. Lift the white shelf and loosen one end of the wire for
the tiling and pull it out from the sledge. Remove the two
screws on top of the gas springs, the two screws holding
the stretcher and remove the stretcher. Two persons are
needed for this work.
3. Remove the screw on top of the sledge, see picture which
holds the hydraulic pistonrod. We recommend you to put
some adhesive tape around the sledge, see picture to
keep the top and bottom sliding washers with shims in
place, otherwise they will fall out when you remove the
sledge. Before pulling off the sledge completely, test by
pulling it up and down a few times by hand to get a feeling
of how tight the shims is, if you shall change to a new
sledge and need new shims.
4. Now you can remove and change the top cover
(if needed). Do not tilt a hydraulic trolley on its side.
5. Before the sledge is mounted, clean the stainless steel
column and add some very thin oil or grease.
If a new sledge shall be mounted, put some adhesive
tape around the sledge to cover the holes for the sliding
washers. Put shims and the sliding washers from inside
the sledge and press the washers to stick to the tape.
6. Push the sledge all the way down on the column and
remove all the tape.
7. If a new sledge is mounted, you may have to test some
times with different shims to get it as steady as above (3).
It is better to shims little tighter than too loose.
When testing you maybe need to change the tape.
8. Mount the hexagon screw on top of the sledge. If the
piston rod does not match the hole in top of the sledge,
centre the piston rod by adjusting the 4 bolts holding the
jack. Do not tilt an hydraulic trolley on its side.
9. Mount the stretcher, gas springs and the wire. Test the
trolley by raising and lowering it some times after the
mattress, pillow and drainage hose are in place.

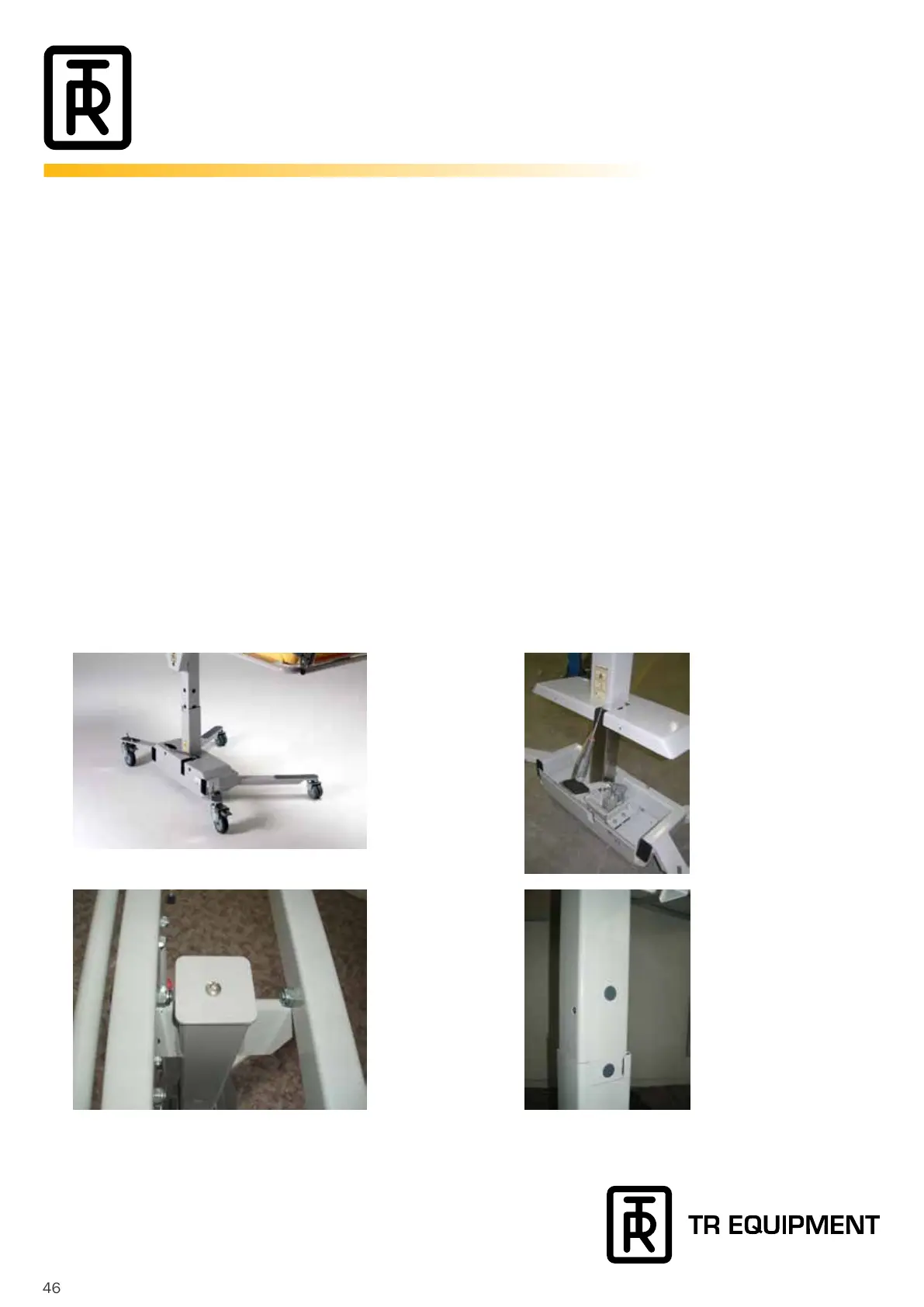

TR 2000 (-2006) - Change the metal cover and sledge
