No Colour / Connection Connection to
1 Flat connection Motor
2 Orange Charging inlet +
3 Red Battery +
4 Green Charging inlet -
5 Brown and White UP Pedal
6 Blue and Yellow (black cover) Microswitch
7 Green and Yellow DOWN Pedal

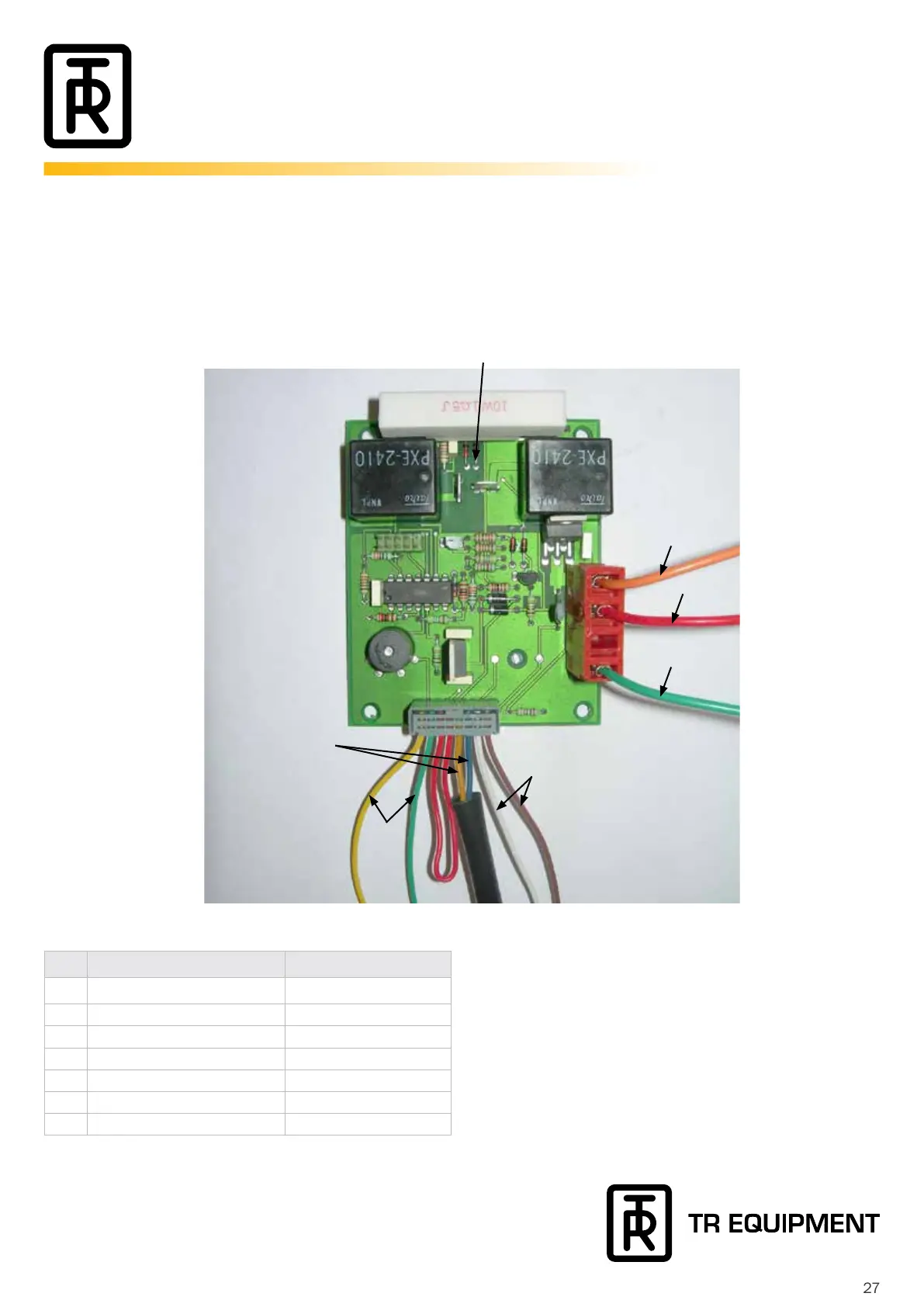

TR 3000 / 9650 (2007-) - Circuit Board
1
2
3
4
5
6
7
