1. Let the shower trolley stand on its castors in normal
position.

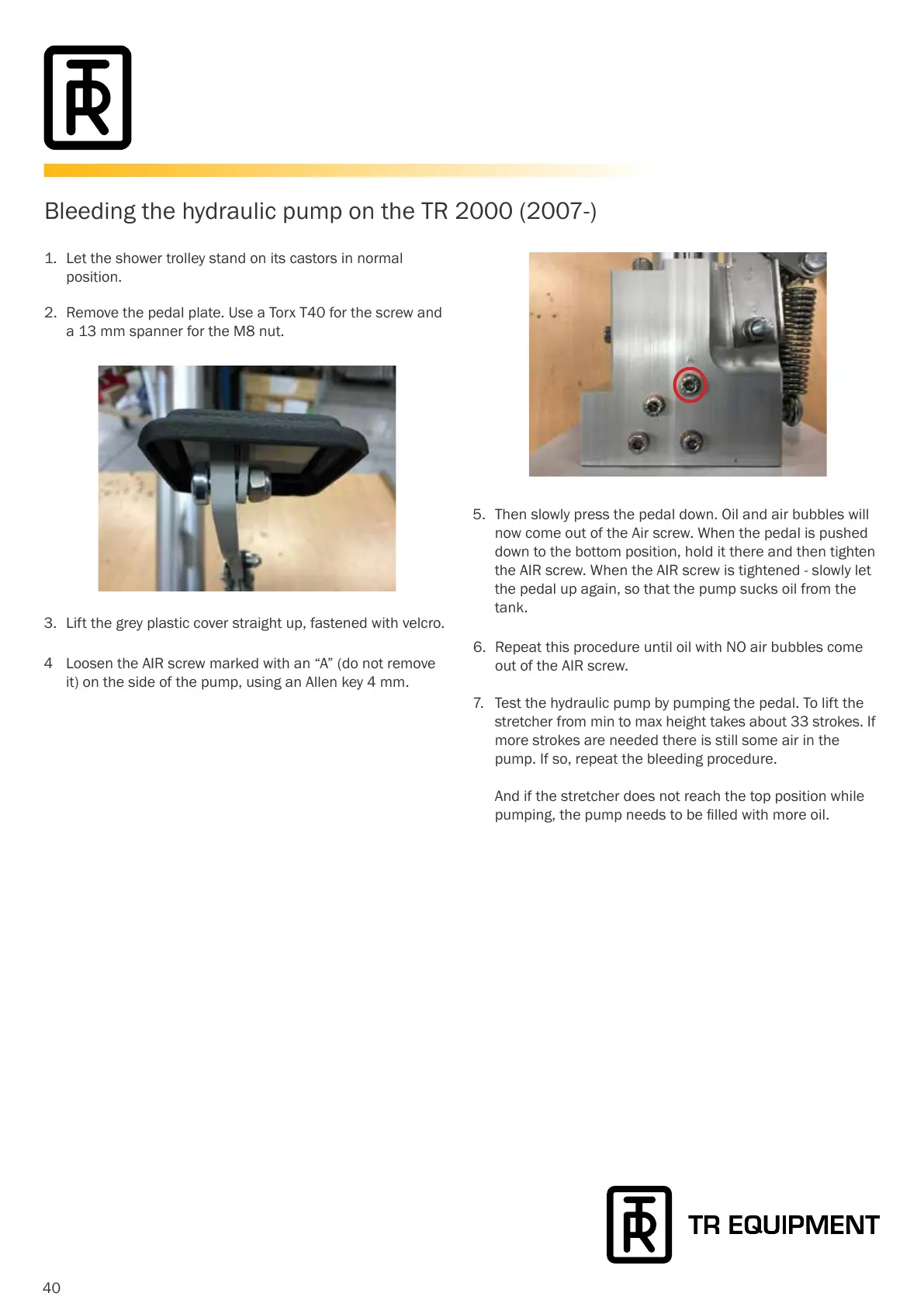

Bleeding the hydraulic pump on the TR 2000 (2007-)
2. Remove the pedal plate. Use a Torx T40 for the screw and
a 13 mm spanner for the M8 nut.
3. Lift the grey plastic cover straight up, fastened with velcro.
4 Loosen the AIR screw marked with an “A” (do not remove
it) on the side of the pump, using an Allen key 4 mm.
5. Then slowly press the pedal down. Oil and air bubbles will
now come out of the Air screw. When the pedal is pushed
down to the bottom position, hold it there and then tighten
the AIR screw. When the AIR screw is tightened - slowly let
the pedal up again, so that the pump sucks oil from the
tank.
6. Repeat this procedure until oil with NO air bubbles come
out of the AIR screw.
7. Test the hydraulic pump by pumping the pedal. To lift the
stretcher from min to max height takes about 33 strokes. If
more strokes are needed there is still some air in the
pump. If so, repeat the bleeding procedure.
And if the stretcher does not reach the top position while
pumping,thepumpneedstobelledwithmoreoil.
