63

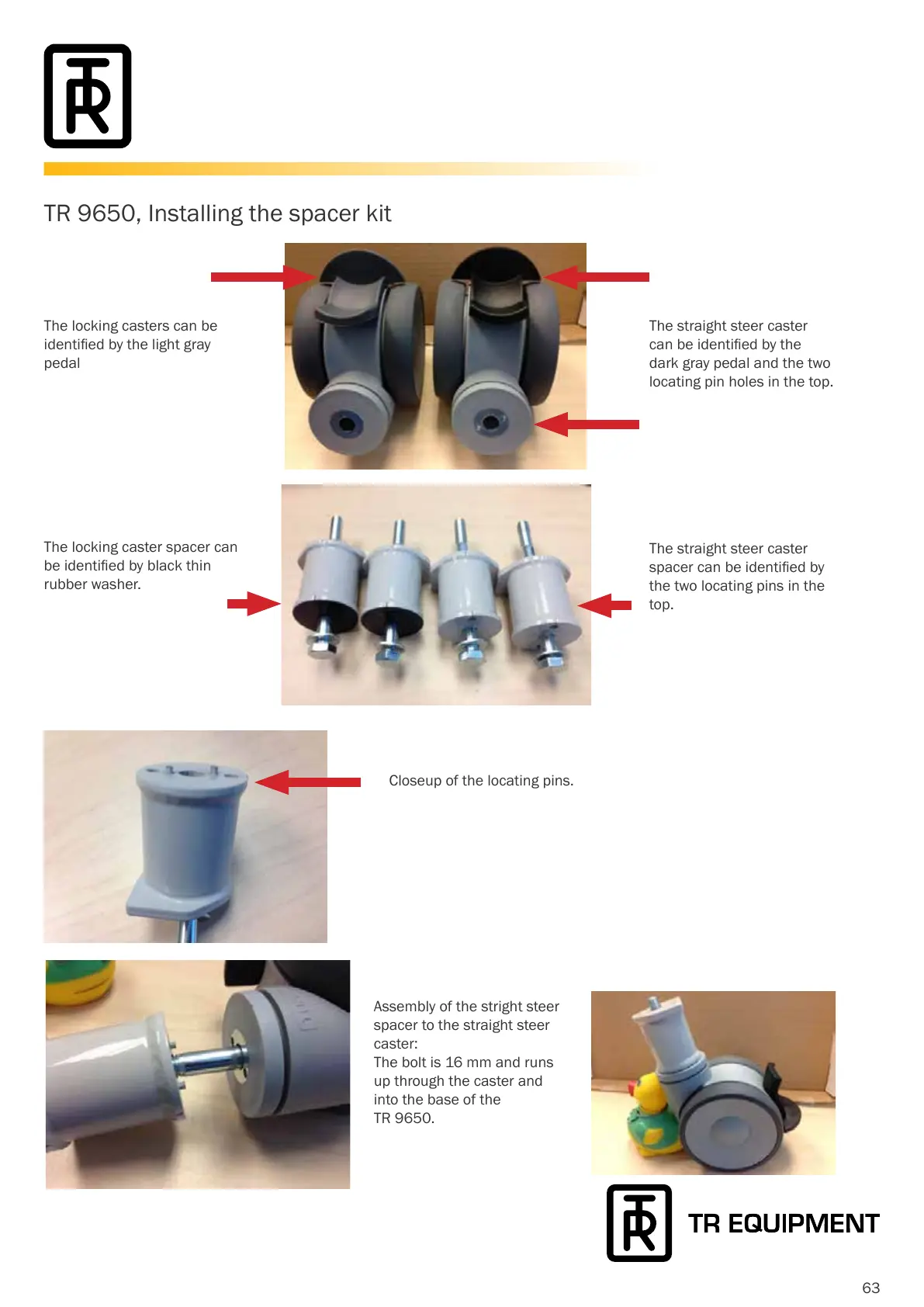

TR 9650, Installing the spacer kit
The locking casters can be
identied by the light gray
pedal
The straight steer caster
can be identied by the
dark gray pedal and the two
locating pin holes in the top.
The locking caster spacer can
be identied by black thin
rubber washer.
The straight steer caster
spacer can be identied by
the two locating pins in the
top.
Closeup of the locating pins.
Assembly of the stright steer
spacer to the straight steer
caster:
The bolt is 16 mm and runs
up through the caster and
into the base of the
TR 9650.
