The product had two micro switches one for the belt slacking
mechanism and one to stop the motor at the top.
There is a possibility to change the belt slacken switch by
following the instruction below.
1. Lay down the trolley on its side and remove the bottom
cover.
2. Remove the fuse.
3. Remove the gray wire socket on the circuit board, coming
from the switches.
4. Cut the four wires close to the gray socket.
5. Remove the black hose protecting the wires.
6. Remove the faulty belt slacking micro switch from its
backet.

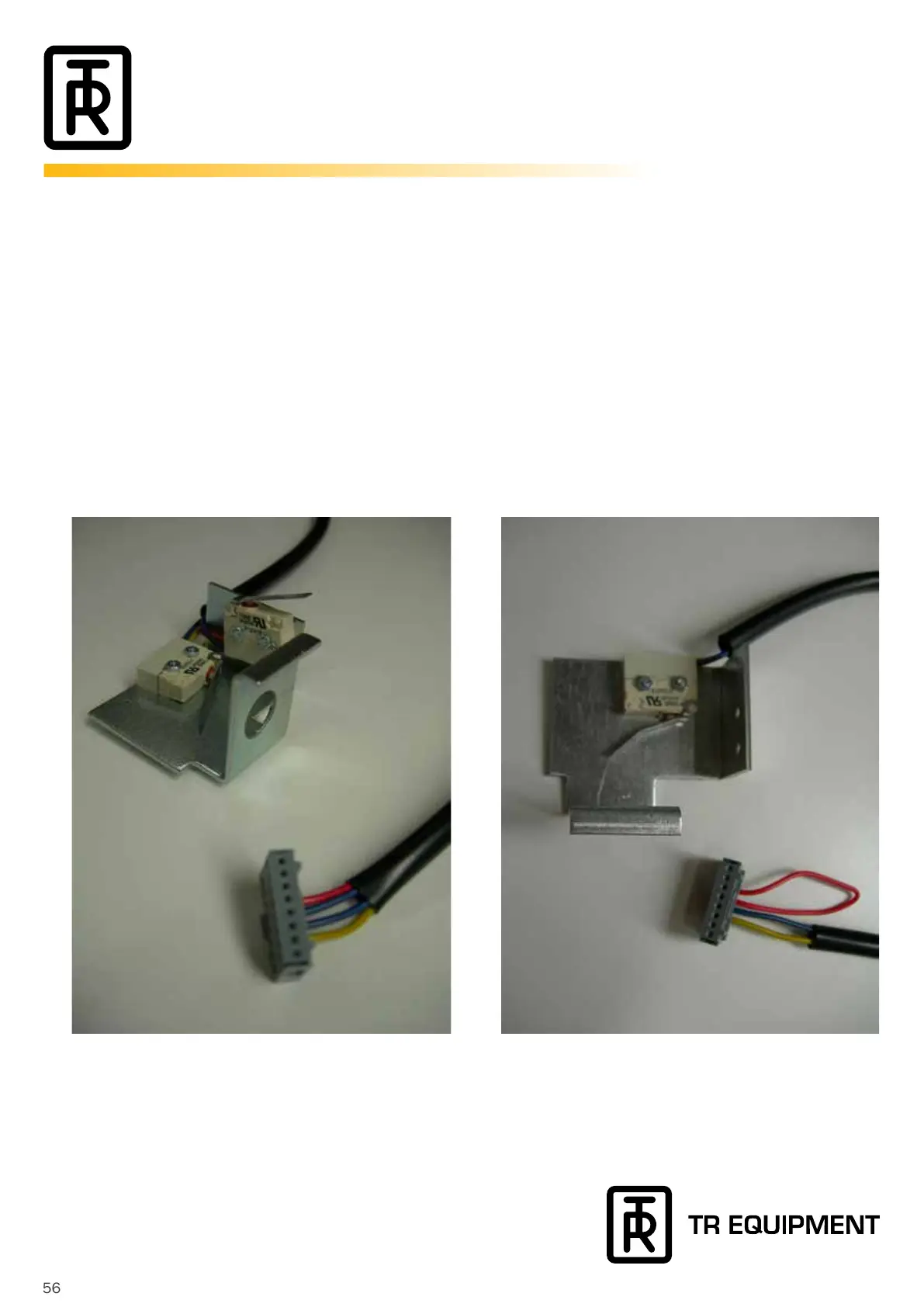

7. Mount the new belt slacken switch (with its new wires
and hose) on the bracket.
8. Put also the two existing wires from the “top switch” in the
black hose.
9. Cut the red wire loop on the new gray socket and connect
them to the “top switch” wires.
10. Assemble the bottom cover and test.
TR 3000/TR 9650 (-200408) - Changing the belt micro switch
