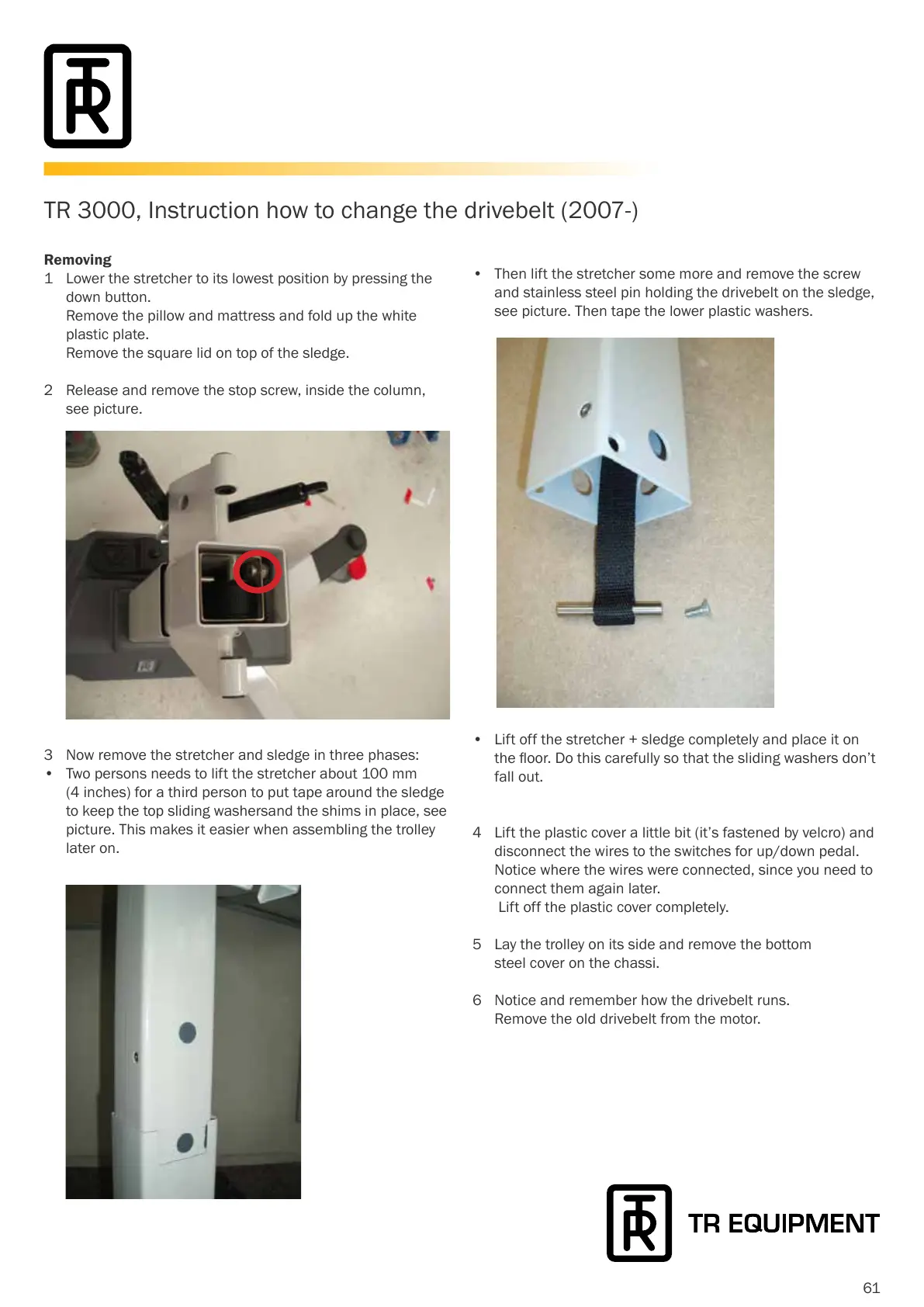

TR 3000, Instruction how to change the drivebelt (2007-)
Removing
1 Lower the stretcher to its lowest position by pressing the
down button.
Remove the pillow and mattress and fold up the white
plastic plate.
Remove the square lid on top of the sledge.
2 Release and remove the stop screw, inside the column,
see picture.
3 Now remove the stretcher and sledge in three phases:
• Two persons needs to lift the stretcher about 100 mm
(4 inches) for a third person to put tape around the sledge
to keep the top sliding washersand the shims in place, see
picture. This makes it easier when assembling the trolley
later on.
• Then lift the stretcher some more and remove the screw
and stainless steel pin holding the drivebelt on the sledge,
see picture. Then tape the lower plastic washers.
• Lift off the stretcher + sledge completely and place it on
 theoor.Dothiscarefullysothattheslidingwashersdon’t
fall out.
4Lifttheplasticcoveralittlebit(it’sfastenedbyvelcro)and
disconnect the wires to the switches for up/down pedal.
Notice where the wires were connected, since you need to
connect them again later.
Lift off the plastic cover completely.
5 Lay the trolley on its side and remove the bottom
steel cover on the chassi.
6 Notice and remember how the drivebelt runs.
Remove the old drivebelt from the motor.
