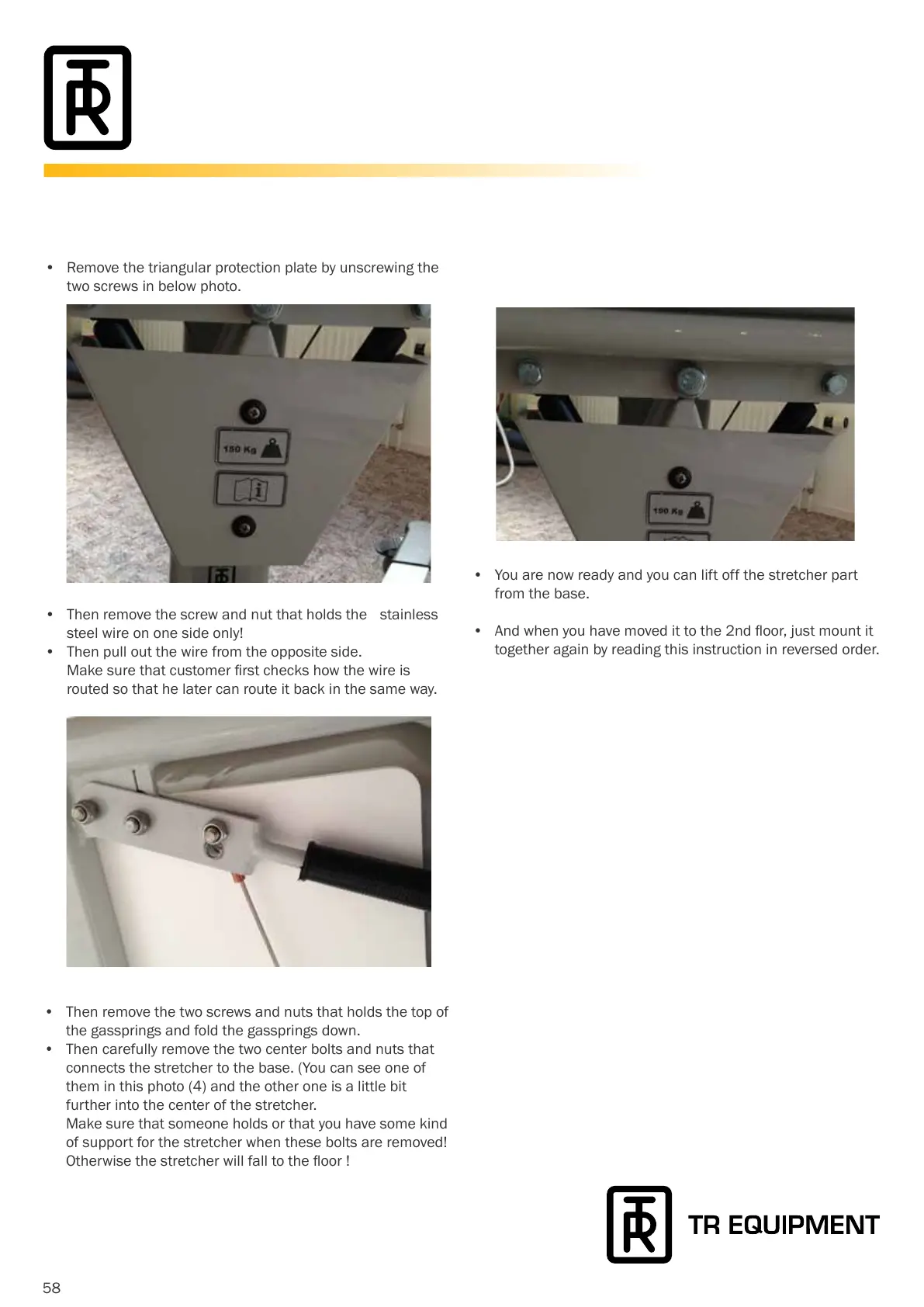

TR 2000, Instruction how to remove the stretcher part from the base
• Then remove the screw and nut that holds the stainless
steel wire on one side only!
• Then pull out the wire from the opposite side.
 Makesurethatcustomerrstcheckshowthewireis 
routed so that he later can route it back in the same way.
• Then remove the two screws and nuts that holds the top of
the gassprings and fold the gassprings down.
• Then carefully remove the two center bolts and nuts that
connects the stretcher to the base. (You can see one of
them in this photo (4) and the other one is a little bit
further into the center of the stretcher.
Make sure that someone holds or that you have some kind
of support for the stretcher when these bolts are removed!
 Otherwisethestretcherwillfalltotheoor!
• You are now ready and you can lift off the stretcher part
from the base.
• And when you have moved it to the 2nd oor, just mount it
together again by reading this instruction in reversed order.
• Remove the triangular protection plate by unscrewing the
two screws in below photo.
