TR 2000/3000/9650
Shower trolleys and Mobile Bath Lift System
Hygiene Equipment
Designed for People

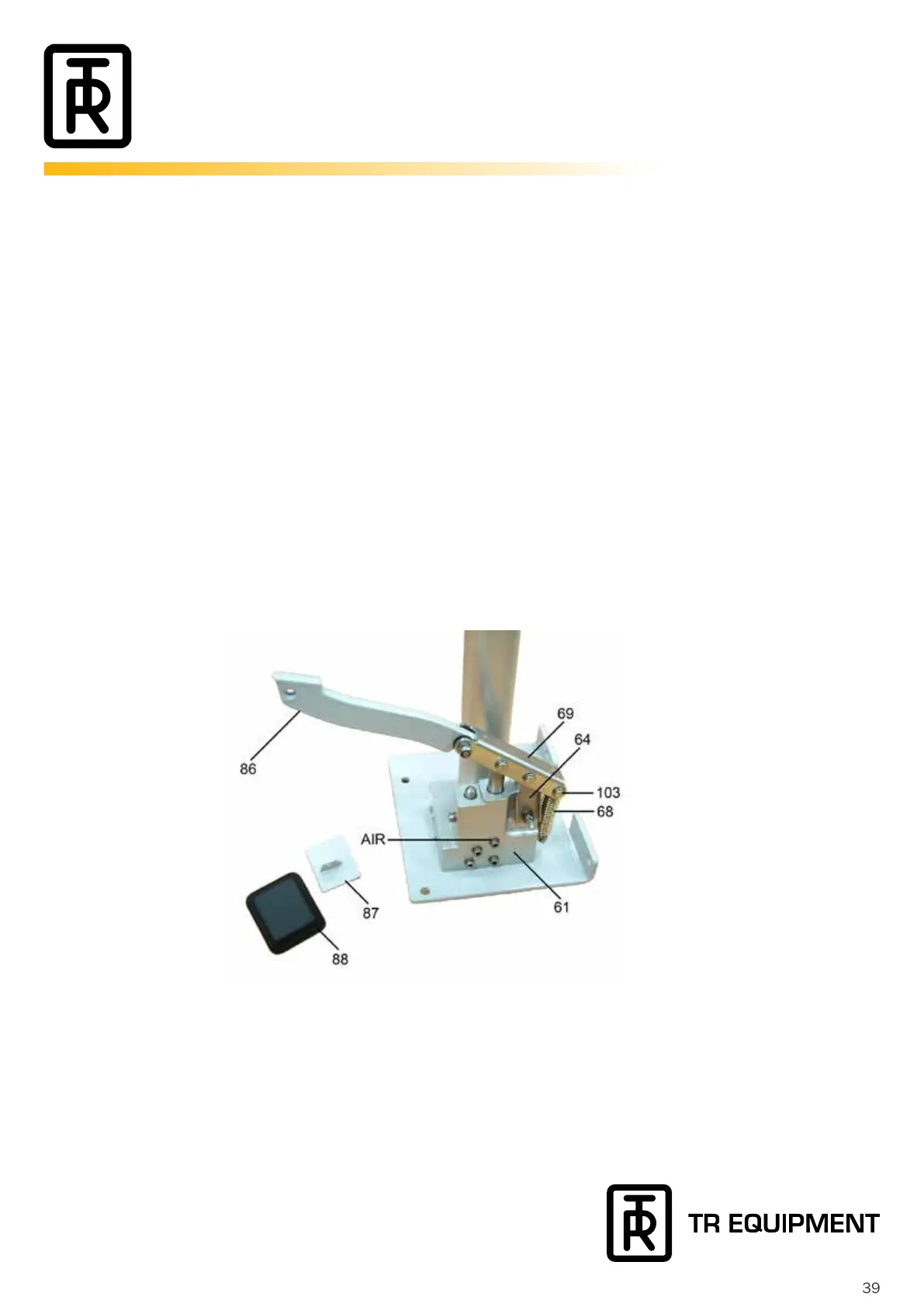

1. Let the trolley stand on its wheels.
2. Remove the bottom metal cover.
3. Lift and support the top metal cover.
4. Loosen screw AIR (do not remove it) on the side of the
jack, using an Allen key 4 mm.
5. Slowly press the pedal down. Oil and air bubbles will come
out of the screw AIR. When pedal at the bottom, tighten
the screw.
6. Slowly let the pedal up, to suck oil from the tank.
7. Repeat procedure until no oil with air bubbles comes out
of the AIR screw.
8. Test by pumping the pedal. To lift the stretcher from min
to max it takes about 33 strokes. If more strokes are
needed there is still air in the pump, repeat airing.
If the stretcher does not reach the top position while pump-
ing, the jack needs more oil.
Removing the jack for lling hydraulic oil:
Lift the mattress and the white shelf to remove the screw
(hexagon 8) at the top of the piston.
Tilt the trolley on its side.
Remove the jack with the four screws in the chassis. Do never
keep the jack up side down, try to hold it as vertically not to
get air in the pump.
Fill oil in the small hole in the jack’s top nut, remove the
hexagon screw 2 mm.
Do not tighten this screw it shall not seal completely as the
tank must breath when temperatures changes.
Oil volume 20 cl.
Air the jack after assembling.
TR 2000 (-2006) - Bleeding the hydraulic jack
