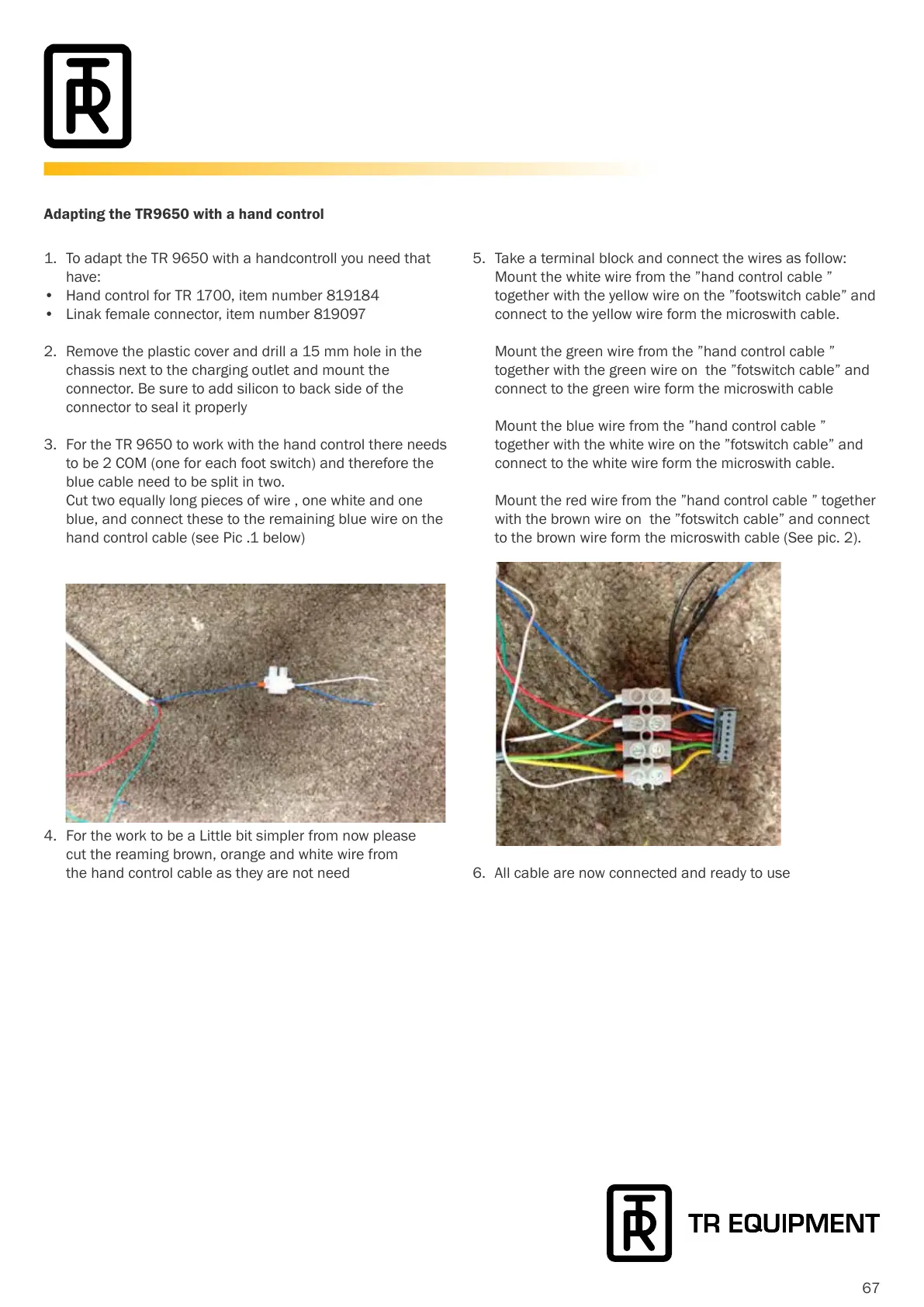

1. To adapt the TR 9650 with a handcontroll you need that
have:
• Hand control for TR 1700, item number 819184
• Linak female connector, item number 819097
2. Remove the plastic cover and drill a 15 mm hole in the
chassis next to the charging outlet and mount the
connector. Be sure to add silicon to back side of the
connector to seal it properly
3. For the TR 9650 to work with the hand control there needs
to be 2 COM (one for each foot switch) and therefore the
blue cable need to be split in two.
Cut two equally long pieces of wire , one white and one
blue, and connect these to the remaining blue wire on the
hand control cable (see Pic .1 below)
4. For the work to be a Little bit simpler from now please
cut the reaming brown, orange and white wire from
the hand control cable as they are not need
5. Take a terminal block and connect the wires as follow:
Mount the white wire from the ”hand control cable ”
together with the yellow wire on the ”footswitch cable” and
connect to the yellow wire form the microswith cable.
Mount the green wire from the ”hand control cable ”
together with the green wire on the ”fotswitch cable” and
connect to the green wire form the microswith cable
Mount the blue wire from the ”hand control cable ”
together with the white wire on the ”fotswitch cable” and
connect to the white wire form the microswith cable.
Mount the red wire from the ”hand control cable ” together
with the brown wire on the ”fotswitch cable” and connect
to the brown wire form the microswith cable (See pic. 2).
6. All cable are now connected and ready to use
