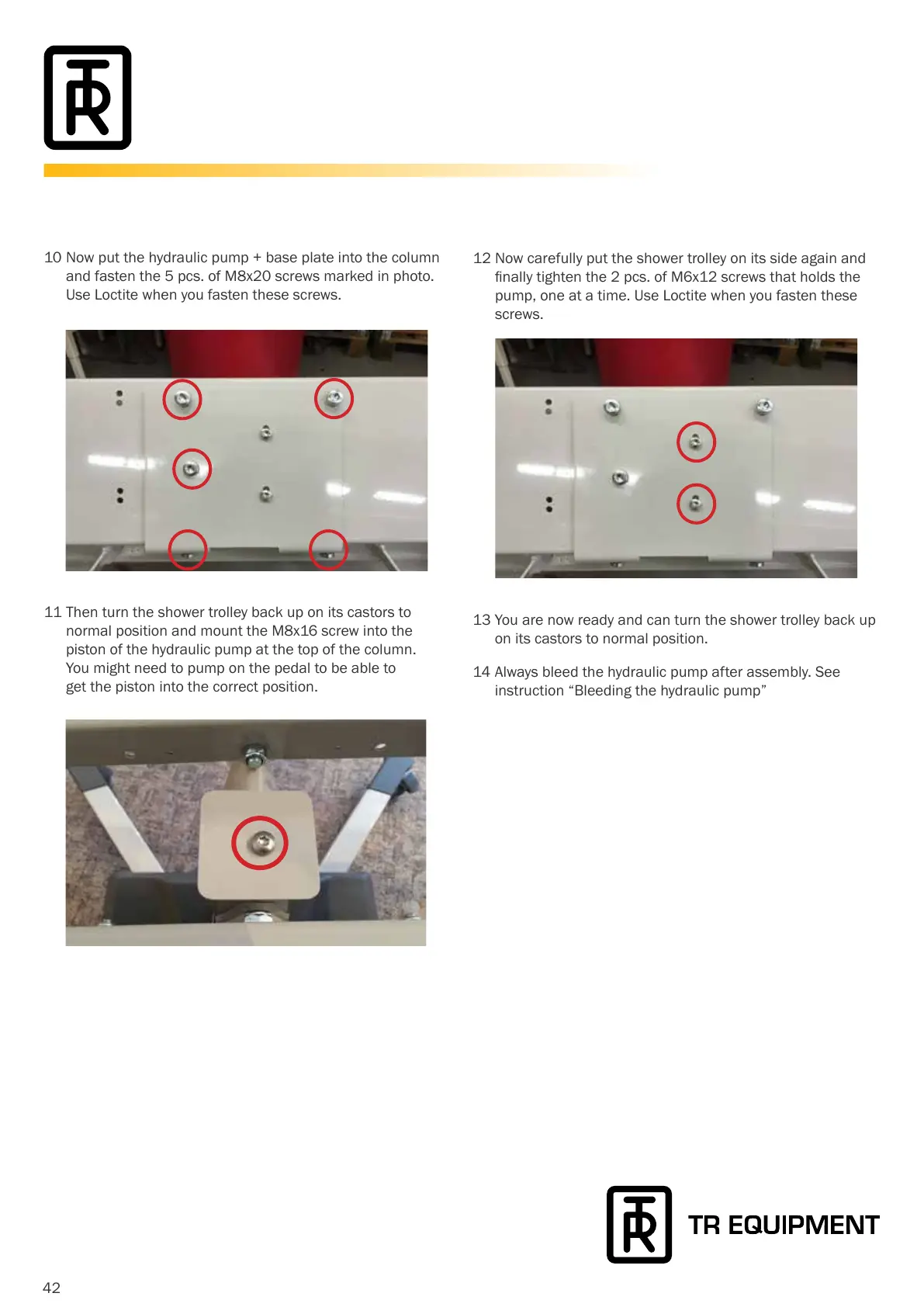

10 Now put the hydraulic pump + base plate into the column
and fasten the 5 pcs. of M8x20 screws marked in photo.
Use Loctite when you fasten these screws.
11 Then turn the shower trolley back up on its castors to
normal position and mount the M8x16 screw into the
piston of the hydraulic pump at the top of the column.
You might need to pump on the pedal to be able to
get the piston into the correct position.
12 Now carefully put the shower trolley on its side again and
 nallytightenthe2pcs.ofM6x12screwsthatholdsthe
 pump,oneatatime.UseLoctitewhenyoufastenthese
 screws.
13 You are now ready and can turn the shower trolley back up
on its castors to normal position.
14 Always bleed the hydraulic pump after assembly. See
instruction “Bleeding the hydraulic pump”
