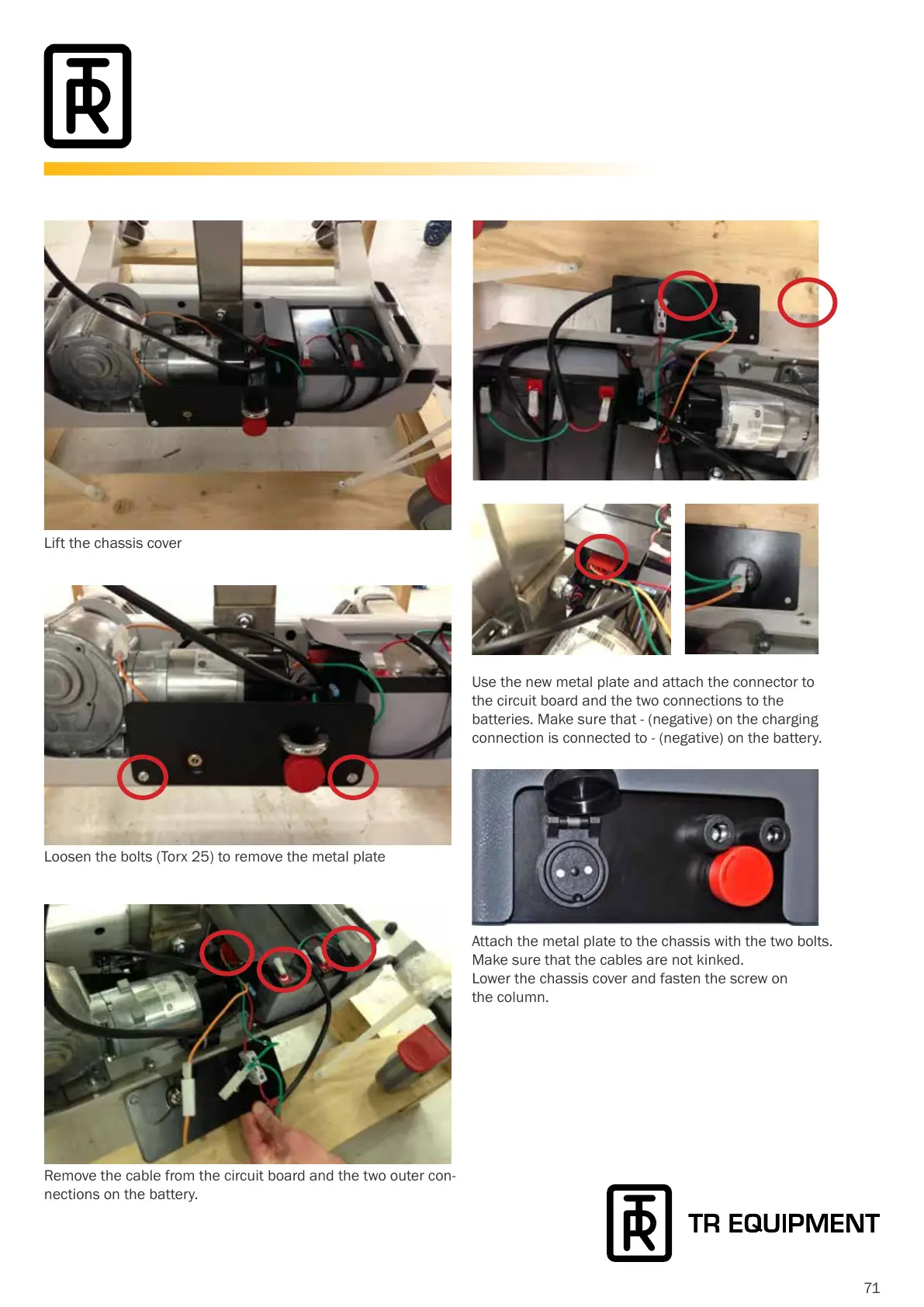

Lift the chassis cover
Loosen the bolts (Torx 25) to remove the metal plate
Remove the cable from the circuit board and the two outer con-
nections on the battery.
Use the new metal plate and attach the connector to
the circuit board and the two connections to the
batteries. Make sure that - (negative) on the charging
connection is connected to - (negative) on the battery.
Attach the metal plate to the chassis with the two bolts.
Make sure that the cables are not kinked.
Lower the chassis cover and fasten the screw on
the column.
