Unit Dimensions/Weights

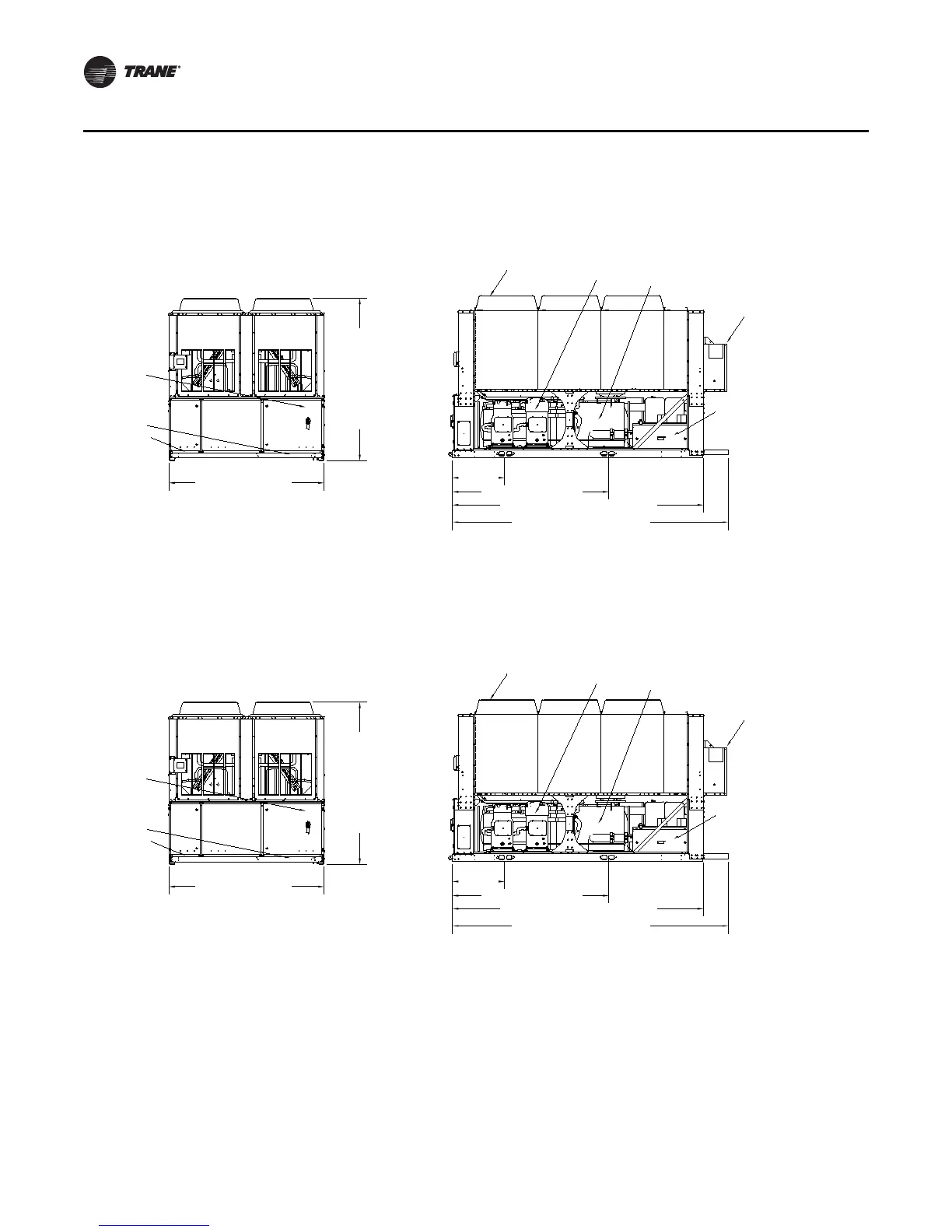

Figure 27. Sizes 80 and 90 ton — pump package, buffer tank, partial heat recovery
Fan
Compressors
Buffer Tank
Pump Package
Pump Package VFD
Lifting
Locations
Control
Panel
Wire
Connection
92 in (2337 mm)
89 in (2261 mm)
29.6 in (752 mm)
89.2 in (2265 mm)
144 in (3658 mm)
Length w/ buffer tank
Length w/ PP or PHR156 in (3962 mm)
Figure 28. Sizes 100, 110 and 120 ton — pump package, buffer tank, partial heat recovery
Fan
Compressors
Buffer Tank
Pump Package
Pump Package VFD
Lifting
Locations
Control
Panel
Wire
Connection
92 in (2337 mm)
89 in (2261 mm)
29.6 in (752 mm)
111.7 in (2837 mm)
167.0 in (4242 mm)
Length w/ buffer tank
Length w/ PP or PHR179.0 in (4547 mm)
