62 CG-SVX17D-EN
Installation - Mechanical

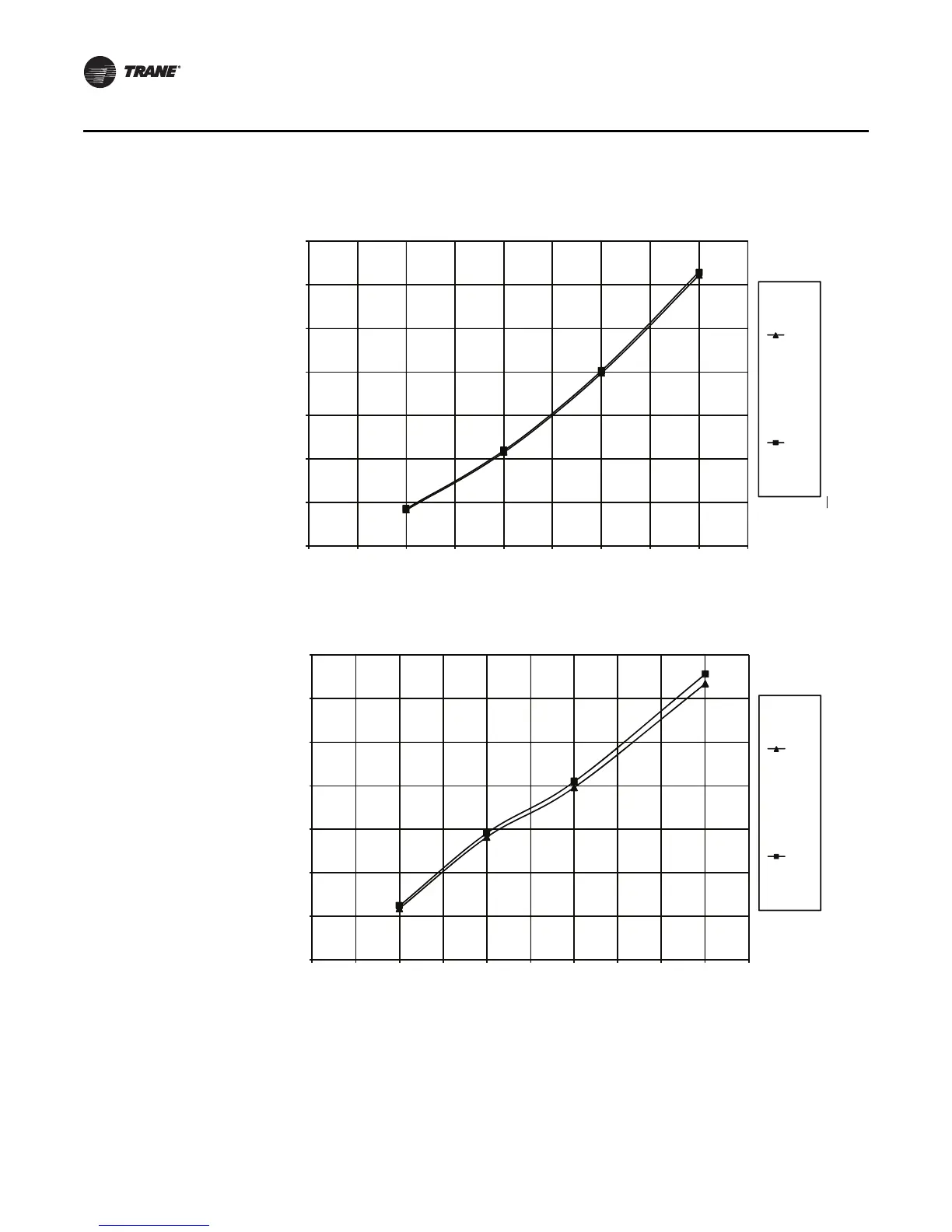

Figure 48. Ethylene glycol performance factor - GPM adjustment
1
1.02
1.04
1.06
1.08
1.1
1.12
1.14
0 5 10 15 20 25 30 35 40 45
ADJUSTMENT FACTOR
% ETHYLENE GLYCOL BY WEIGHT
60 Hz
50 Hz
Figure 49. Propylene glycol performance factor - GPM adjustment
0.99
1
1.01
1.02
1.03
1.04
1.05
1.06
0 5 10 15 20 25 30 35 40 45 50
ADJUSTMENT FACTOR
% PROPYLENE GLYCOL BY WEIGHT
60 Hz
50 Hz
