CGAM Operating Principles

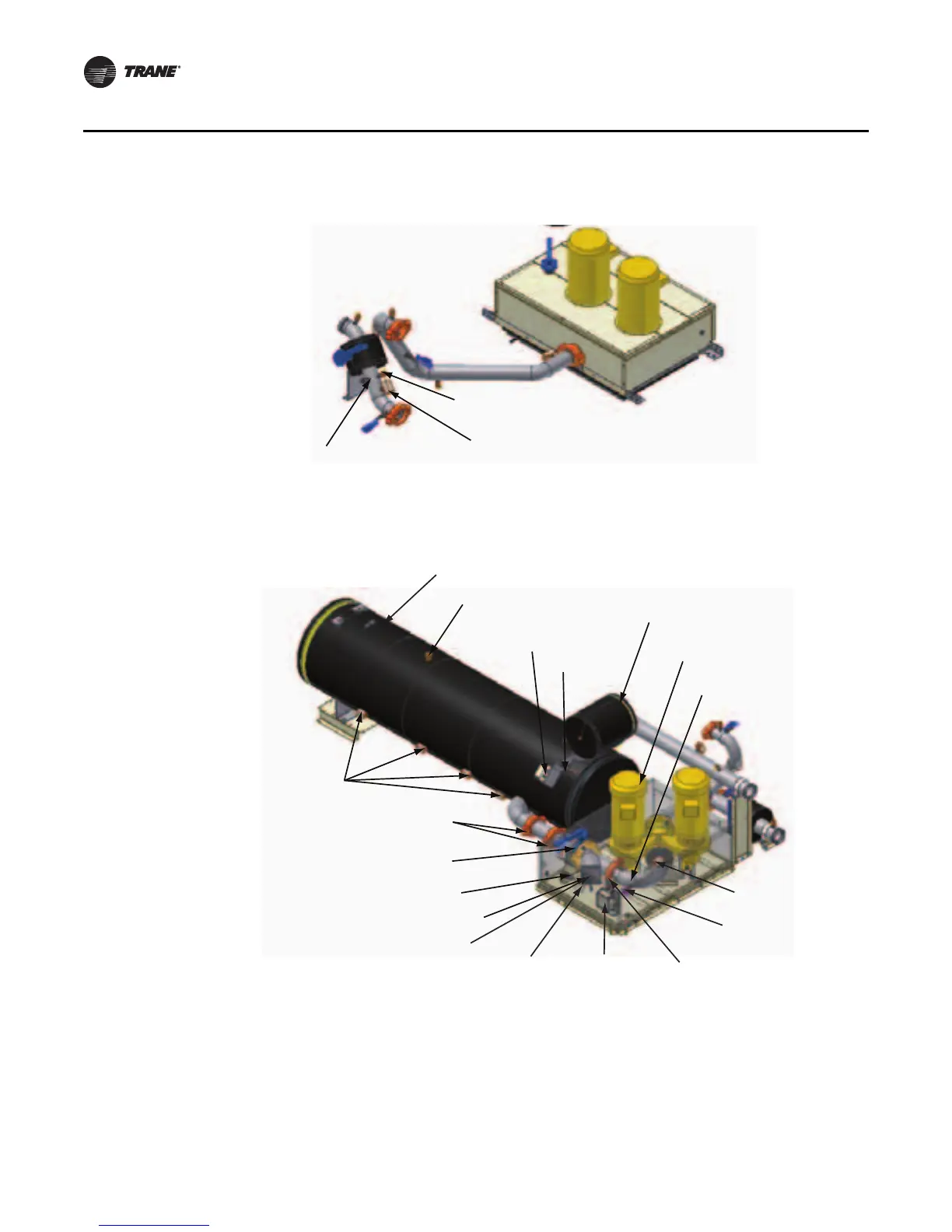

Figure 69. Pump package components — V 40-70 ton — view 3
Figure 70. Pump package components — W 80-130 ton — view 1
Pressure port
Flow switch
Immersion
Heater
Immersion heater
Handle
Butterfly valve
Thermostat
Blow down valve
Strainer
Junction box
Gauge pressure port
Immersion heater
Relief Valve
Flexible Hose
Expansion tank
Pump
Junction box
Thermostat
Auto air bleed
Victaulic coupling
Buffer tank (optional)
