INSTRUCTION MANUAL
UG30 CONTROL
mP30-UG30 - Rev. 1.5 - Date: 18-03-2004 EN
11 (44)

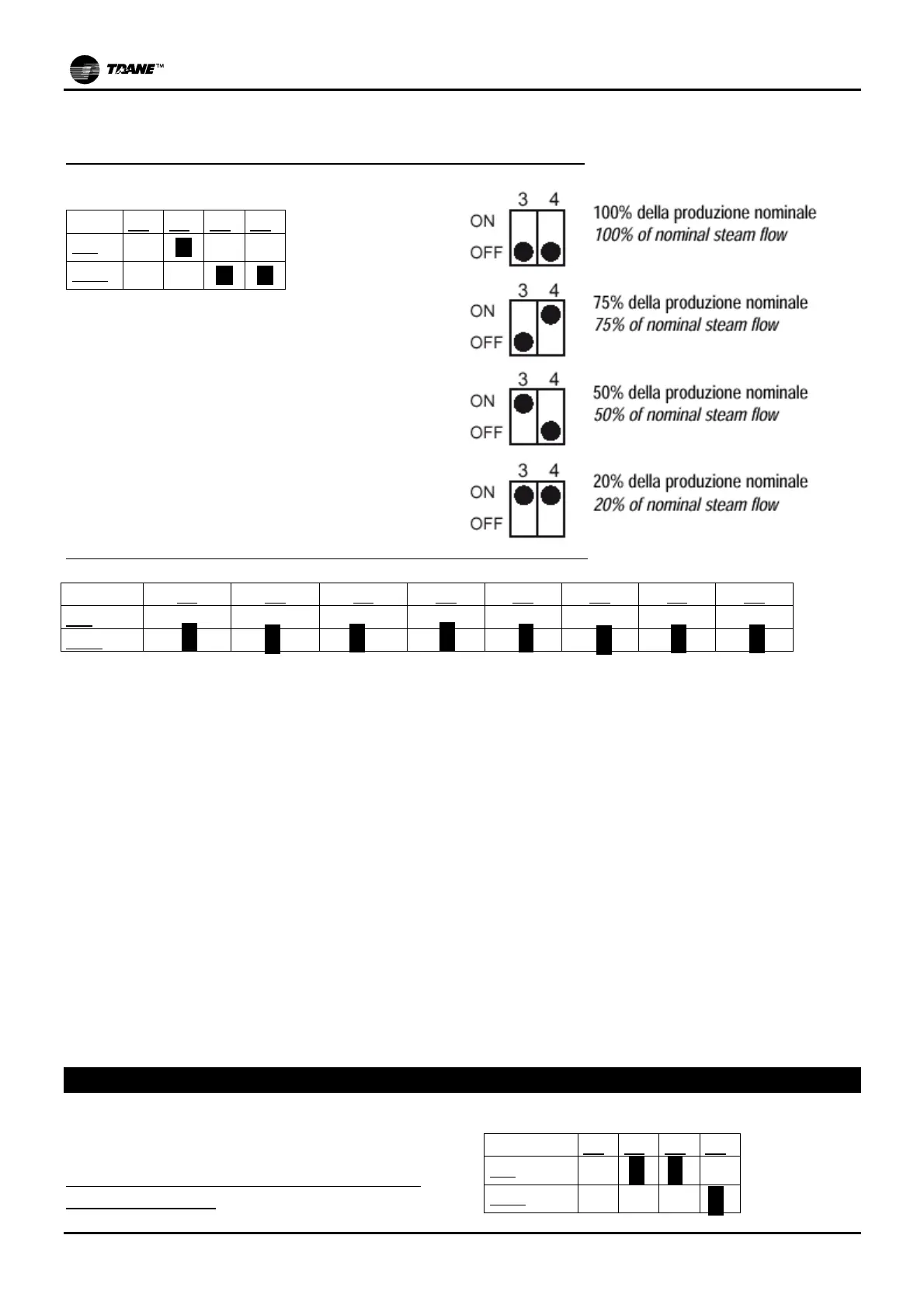

FACTORY SETTINGS
. Dip switches type A (alarm relay and maximum production settings)
A1 A2 A3 A4
ON
X
¾
OFF
X
¾ ¾
Dip switch 1-not used
Dip switch 2 set to ON: Relay not energized (contact
open) with at least one alarm active, otherwise energized
(contact closed)
Dip switches 3-4 set to OFF: 100% of nominal
steam flow ( 3 kg/h)
Dip switches type B (auxiliary functions and automatic draining time)
B1 B2 B3 B4 B5 B6 B7 B8
ON
OFF
Dip switch 1 set to OFF: complete draining after 7 days without production being requested (function
enabled)
Dip switch 2 set to OFF: automatic draining with or without electrode power supply (electrodes not
supplied)
Dip switch 3 set to OFF: the new production setpoint is reached by means of evaporation cycles when
demand is reduced by less than 25%. Draining is achieved by means of evaporation cycles.
Dip switch 4 set to OFF: cylinder exhaustion advance warnings (alarms are displayed when the cylinder
is approaching exhaustion).
Dip switches 5-6 set to OFF: automatic draining time (default setting)
Dip switches 7-8 set to OFF: Evaporation time threshold (default setting)
The “TA RATE” dip switches are left in their default positions since an external TAM is being used
Jumper setting on external TAM
In the JUPITER models used, the jumper must be placed in position 100 (end of scale is quantified in
amperes 100=10 amperes)
MERCURY/MERCURY BIG UNIT CP1 CONFIGURATION (MD/MU ……._ D.G. _ 3 )
MERCURY/MERCURY BIG unit (three-phase OEM):
Nominal steam flow will be reduced by 50% (4 kg/h) for
MERCURY 1-2 frame and by 75% (6 kg/h) for
MERCURY 3-4 frame and MERCURY BIG units.
Dip switches type A (alarm relay and maximum
production settings)
A1
A2 A3 A4
ON
X
OFF
X
