Dimensions and Weights
Service Clearance
Notes:
• Area above unit required for operation, maintenance,
panel access and airflow.
NO OBSTRUCTIONS ABOVE UNIT
• For installations with obstructions or multiple units,
see Close Spacing and Restricted Airflow Bulletin RLC-
PRB037*-EN.
• Clearance of 78” (1981 mm) on the side of the unit is
required for coil replacement. Preferred side for coil
replacement is shown (right side of unit, as facing
control panel). However, either side is acceptable.
• A full 36” (914 mm) clearance is required in front of the
control panel. Must be measured from front of panel,
not end of unit base.
• Clearances shown are sufficient for tube pull.
Unit Dimensions
See unit submittals for specific unit dimensions and water connection locations.
Weights

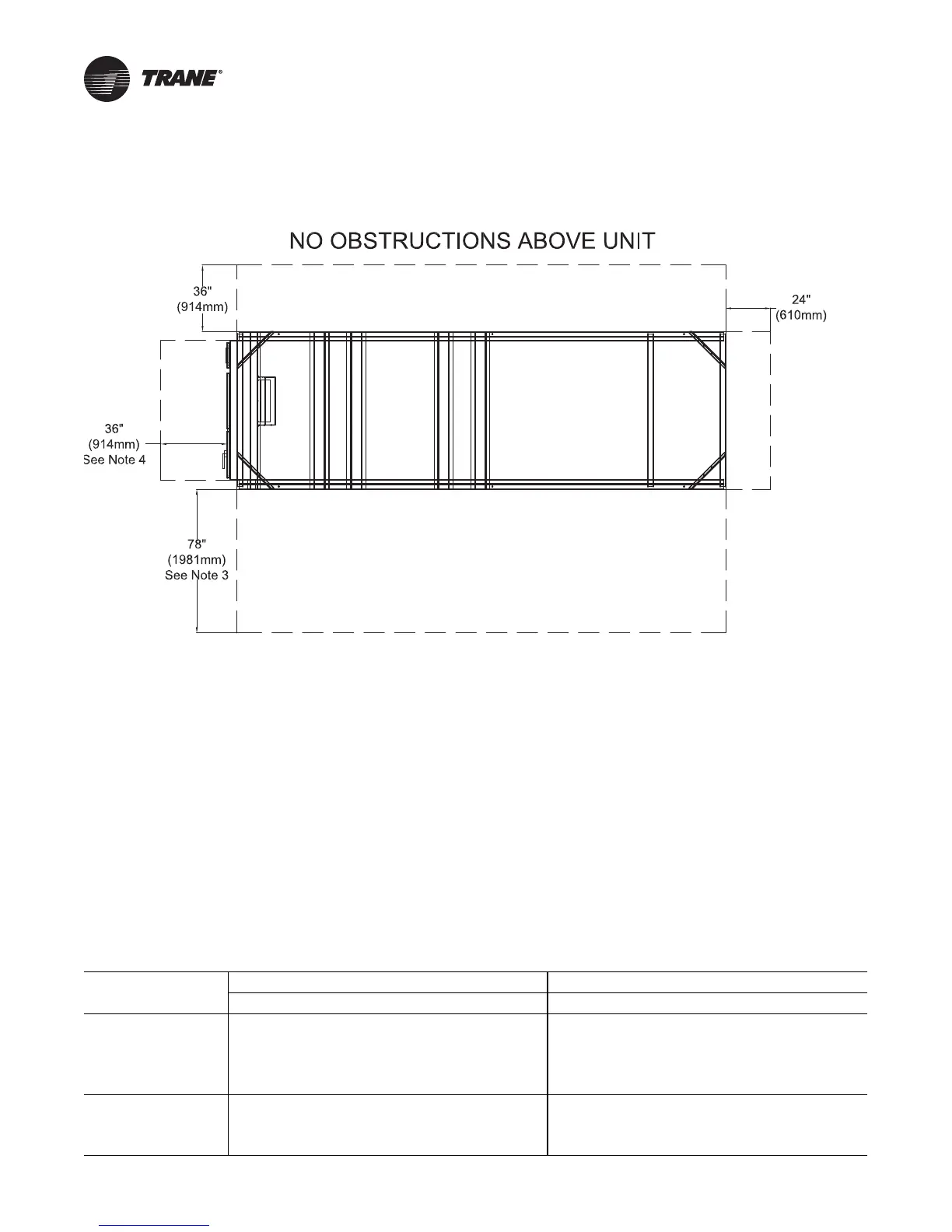

Figure 2. RTAF service clearances
Table 3. Sintesis unit weights
Unit Size (tons)
Shipping Weight Operating Weight
lb kg lb kg
115 7974 3617 8091 3670
130 8071 3661 8203 3721
150 9467 4294 9628 4367
170 9497 4308 9669 4386
180 9821 4455 10002 4537
200 10829 4912 11012 4995
215 11155 5060 11355 5151
