Start-Up and Shutdown
RTAF-SVX001A-EN 59
Immediate Shutdown to Stopped or Run Inhibit

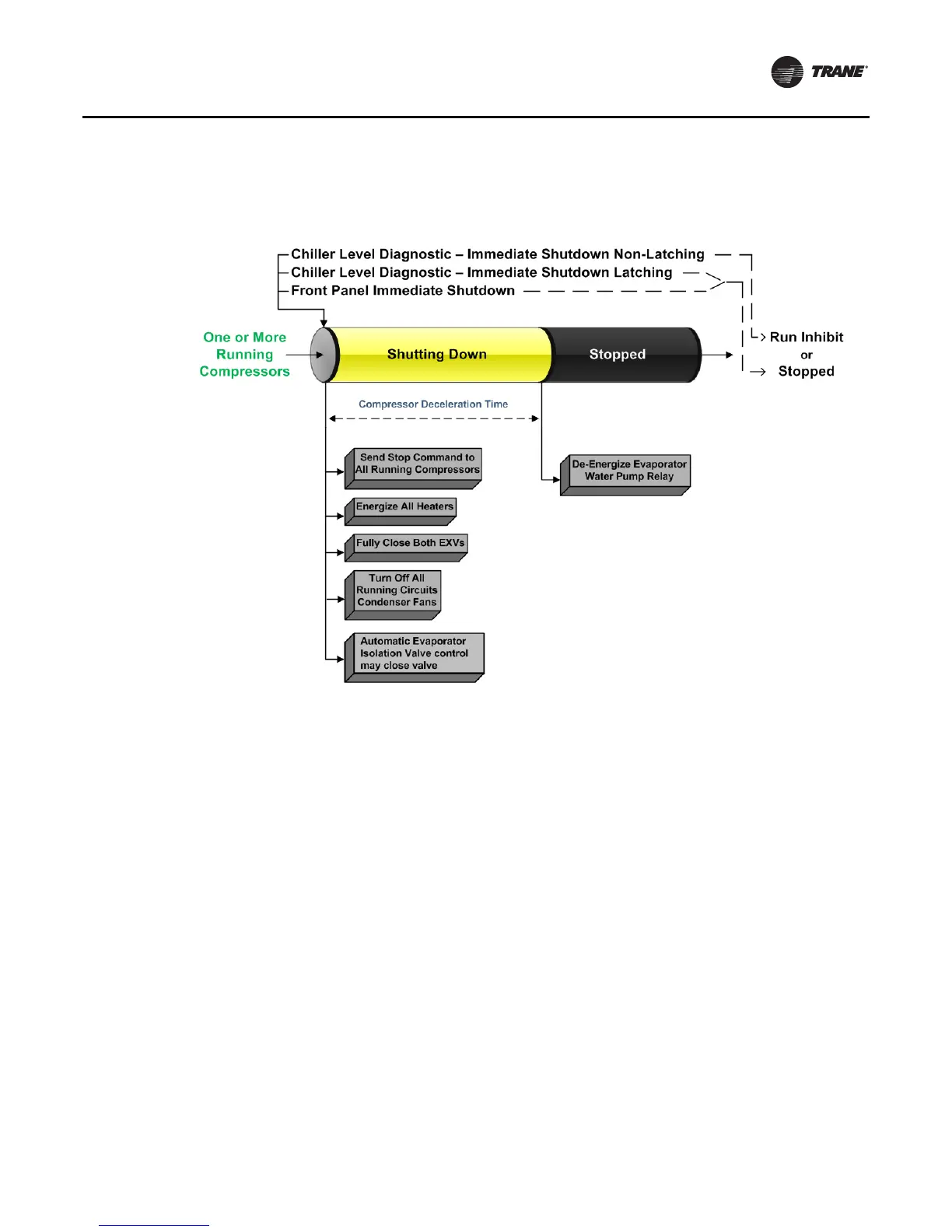

Figure 50 shows the transition from Running through an
Immediate Shutdown.The dashed lines on the top attempt
to show the final mode if you enter the stop via various
inputs.
Figure 50. Sequence of events: immediate shutdown to stopped or run inhibit
