Installation Mechanical
RTAF-SVX001A-EN 21
Evaporator Waterside
Pressure Drop Curves

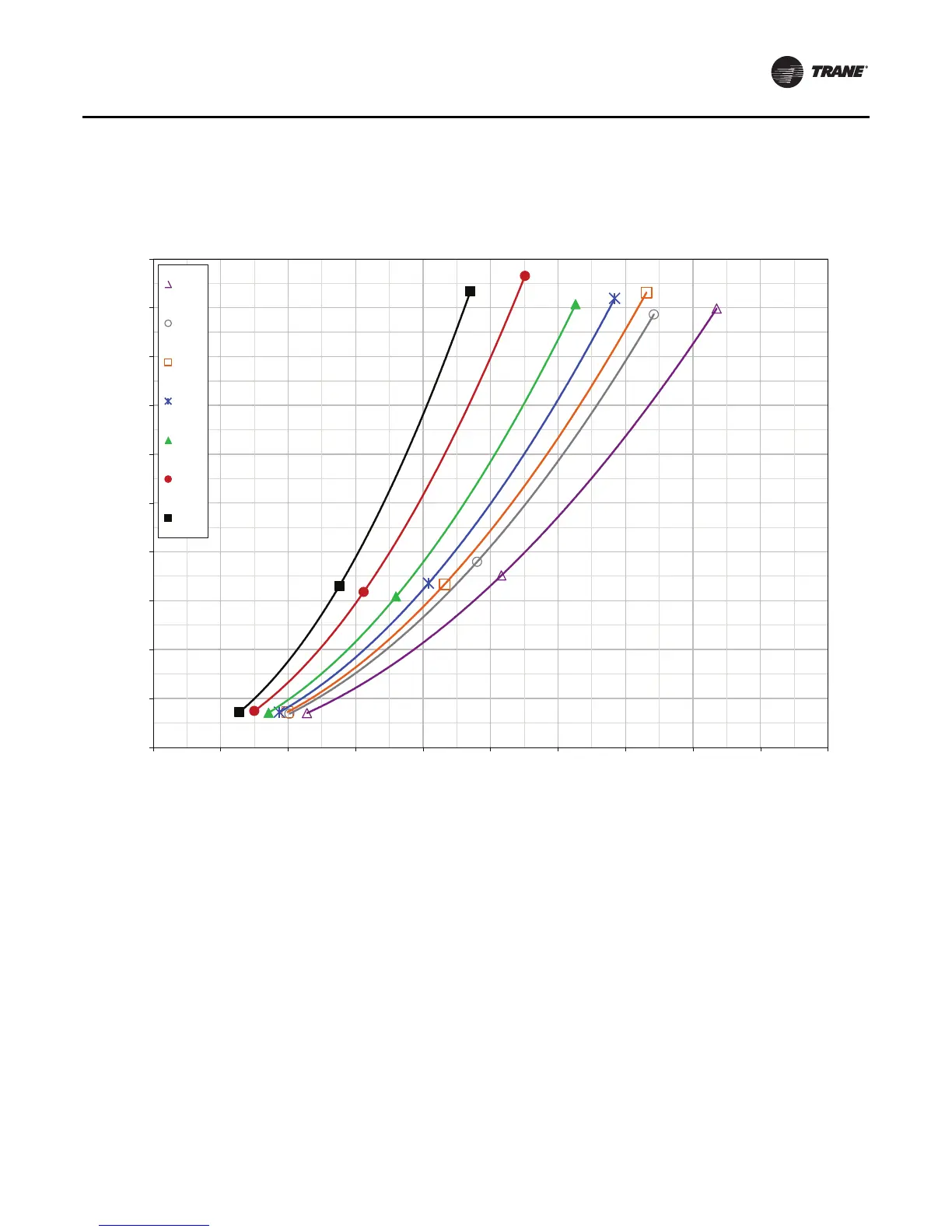

Figure 11. Evaporator water pressure drop — 2-pass without turbulators
0
5
10
15
20
25
30
35
40
45
50
0 100 200 300 400 500 600 700 800 900 1000
Pressure Drop (ft. H2O)
Water Flow (GPM)
215T
200T
180T
170T
150T
130T
115T
