Start-Up and Shutdown
RTAF-SVX001A-EN 55
Running (Lead Compressor/Circuit Start and Run)

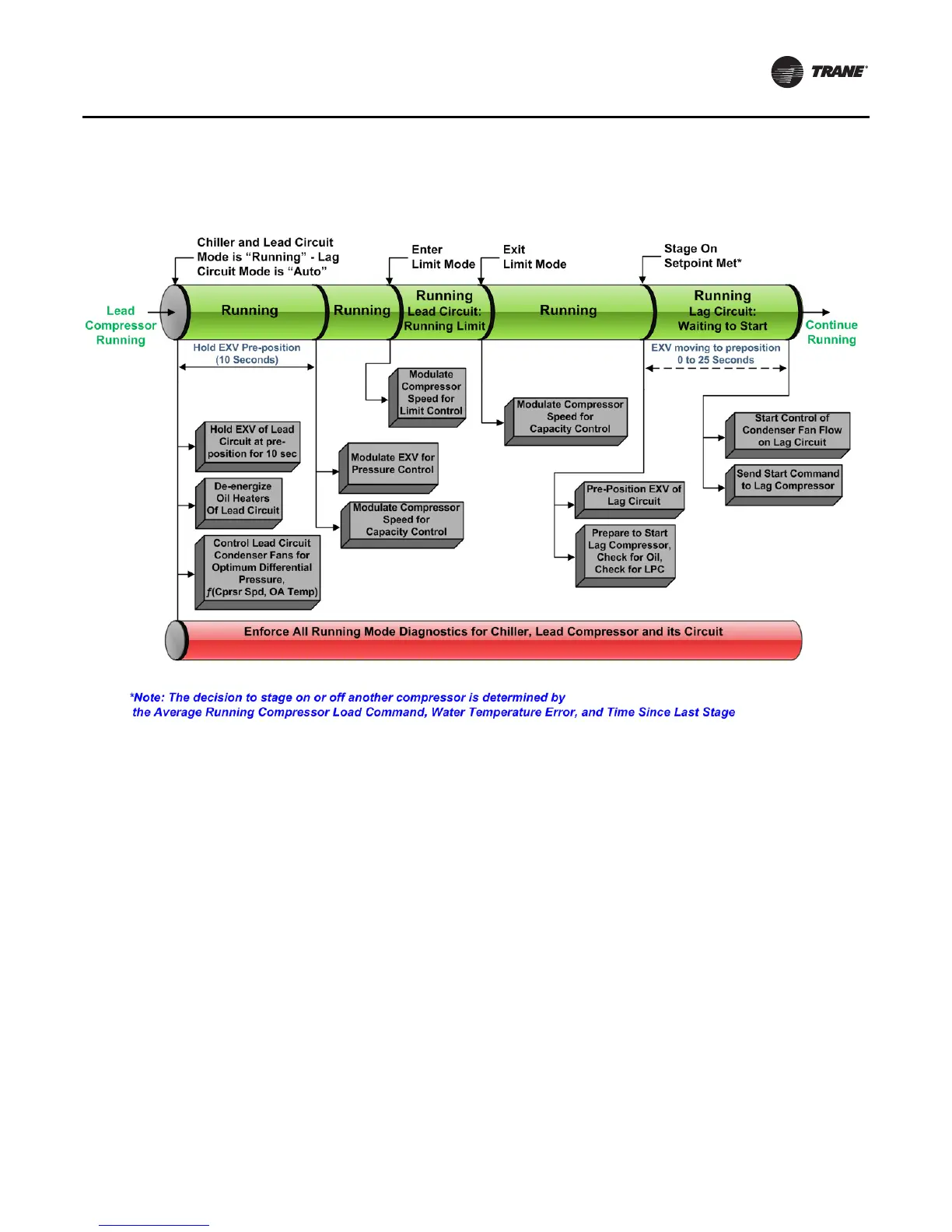

Figure 46 shows a typical start and run sequence for the
lead compressor and its circuit.
Figure 46. Sequence of operation: running (lead compressor/circuit start nd run)
