Trane Sintesis RTAF - Normal Shutdown to Stopped or Run Inhibit

Start-Up and Shutdown
58 RTAF-SVX001A-EN
Normal Shutdown to Stopped or Run Inhibit

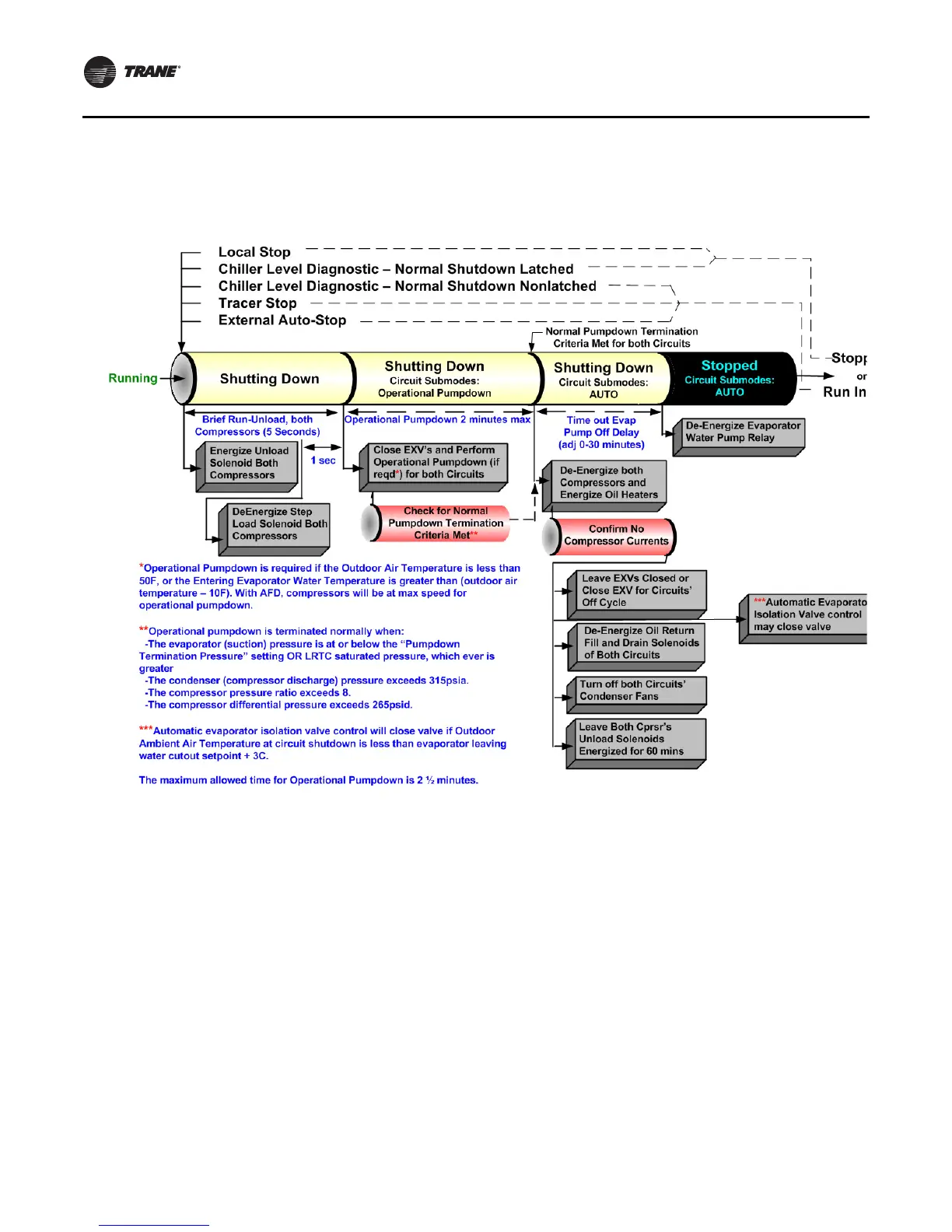

Figure 49 shows theTransition from Running through a
Normal (friendly) Shutdown.The Dashed lines on the top
attempt to show the final mode if you enter the stop via
various inputs.
Figure 49. Sequence of events: normal shutdown to stopped or run inhibit
