Controls
RTAF-SVX001A-EN 41

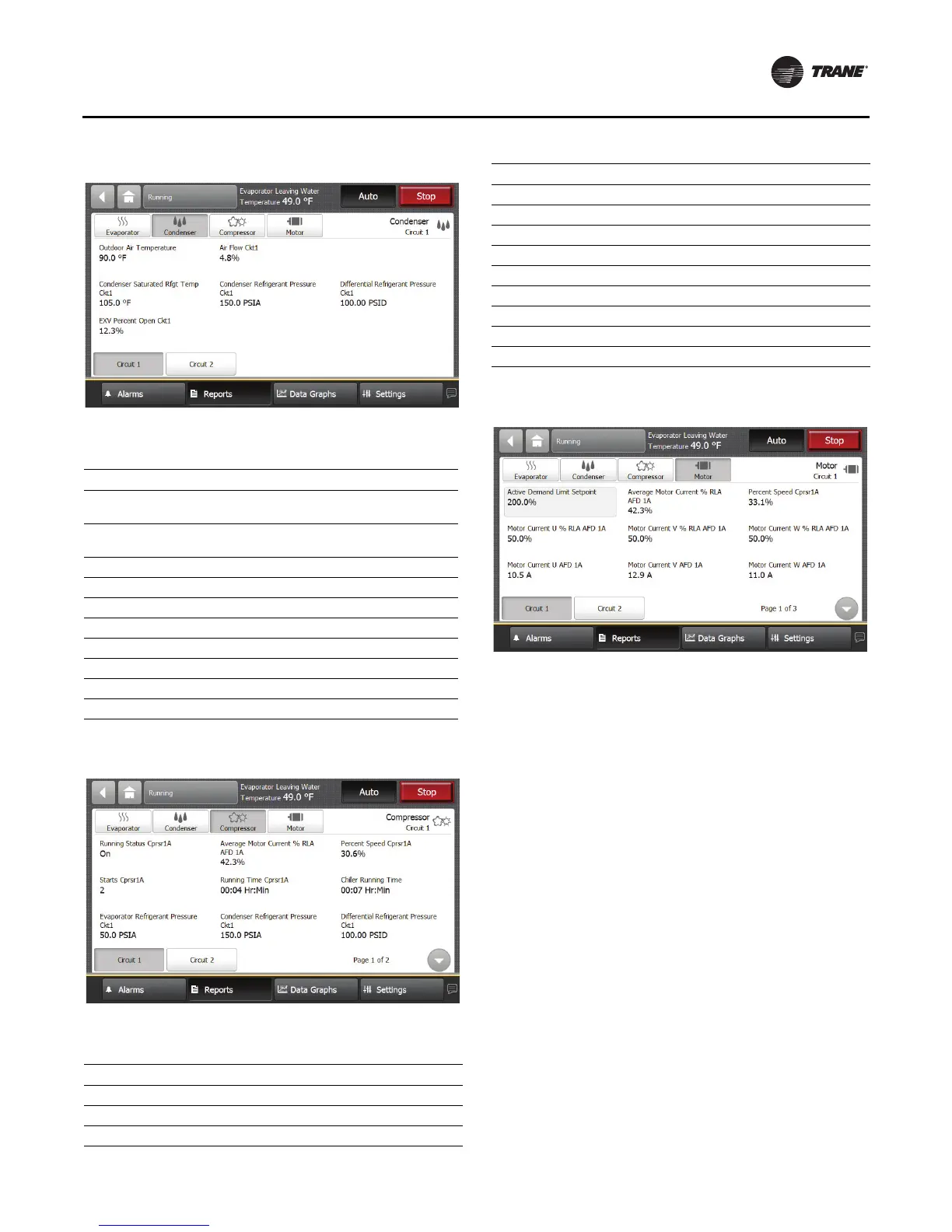

Figure 25. Report condenser screen
Table 20. Report condenser screen items
Description Resolution Units
Condenser Entering Water
Temperature
X.X F / C
Condenser Leaving Water
Temperature
X.X F / C
Condenser Water Flow Status Flow, No Flow Text
Condenser Water Pump Override Auto, On Text
Condenser Approach Temperature X.X F / C
EXV Position Percent X.X %
Condenser Refrigerant Pressure XXX.X PSIA/kPa
Condenser Saturated Rfgt Temp X.X F / C
Differential Refrigerant Pressure XXX.X PSIA/kPa
Outdoor Air Temperature X.X F / C
Figure 26. Report compressor screen
Table 21. Report compressor screen items
Description Resolution Units
Compressor Running Status On, Off Text
Average Motor Current %RLA XX.X% %RLA
Compressor Starts XX Text
Compressor Running Time XX:XX Hr:Min
Oil Loss Level Sensor Wet, Dry Text
Discharge Temperature X.X °F / °C
Discharge Temperature X.X °F / °C
Compressor Oil Pressure XXX.X PSIA/kPaA
Evaporator Refrigerant Pressure XXX.X PSIA/kPaA
Condenser Refrigerant Pressure XXX.X PSIA/kPaA
Differential Refrigerant Pressure XXX.X PSIA/kPaA
Frequency Command XX.X Hz
Figure 27. Report motor screen
Table 21. Report compressor screen items
Description Resolution Units
