UNT-SVX07E-EN 15
Dimensions and Weights
Service Clearances
Service access is available from the front on vertical units
and from the bottom on horizontal units. Cabinet and
recessed units have removable front or bottom panels to
allow access into the unit. See Figure 2 and Figure 3 for
recommended service and operating clearances.

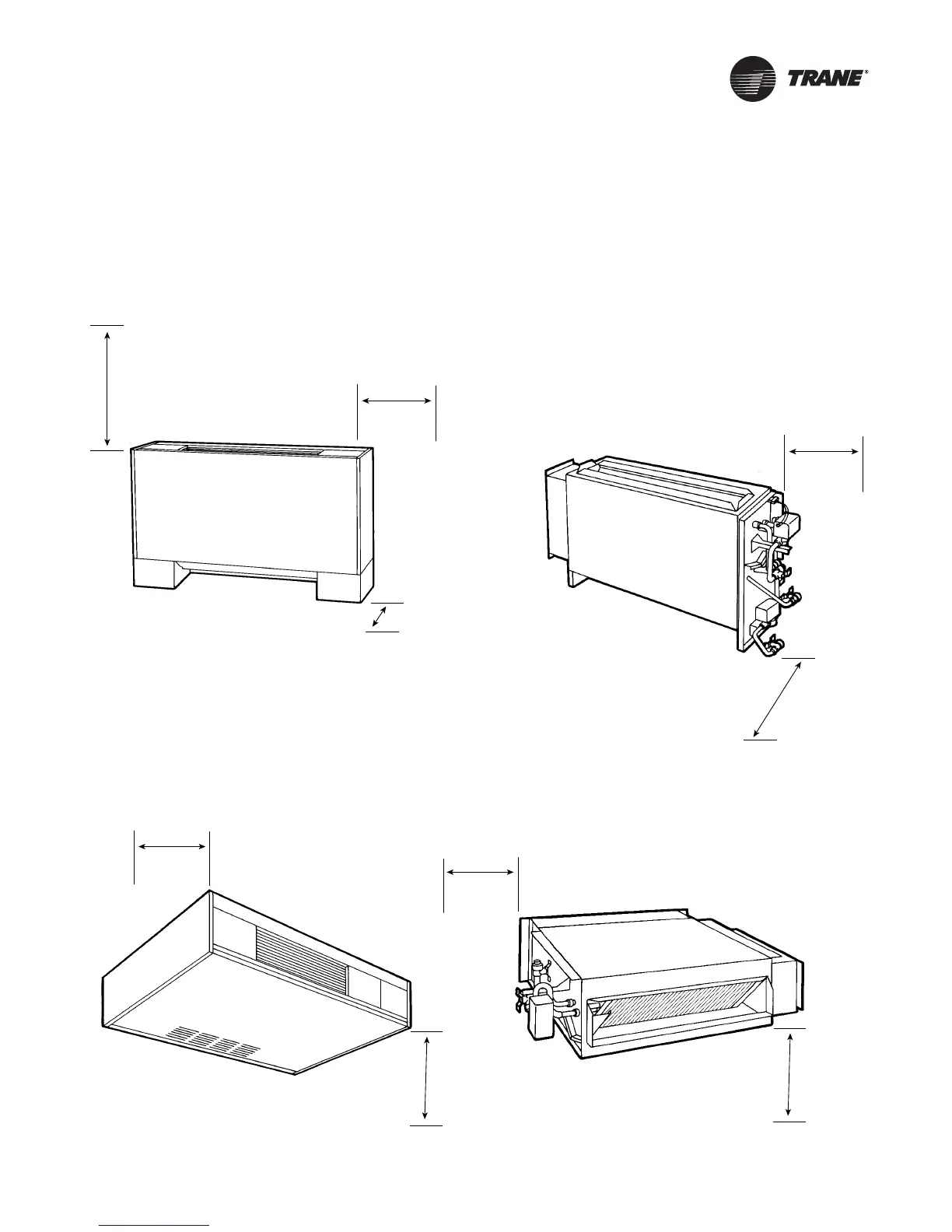

Figure 2. Recommended service clearances for vertical units
Model B Vertical Cabinet
Model L Low Vertical Cabinet
Model A Vertical Concealed
Model K Low Vertical Concealed
Model H Vertical Recessed
36 in.
8.5 in.
both sides
12 in.
both sides
24 in.
3 in.
Figure 3. Recommended service clearances for horizontal units
Model D Horizontal Cabinet
Model C Horizontal Concealed
Model E Horizontal Recessed
28 in.
8.5 in.
both sides
12 in.
both sides
24 inches
front discharge
28 in.
