Trane UniTrane Fan-Coil User Manual

Dimensions and Weights
44 UNT-SVX07E-EN
Fan Coil Horizontal Units

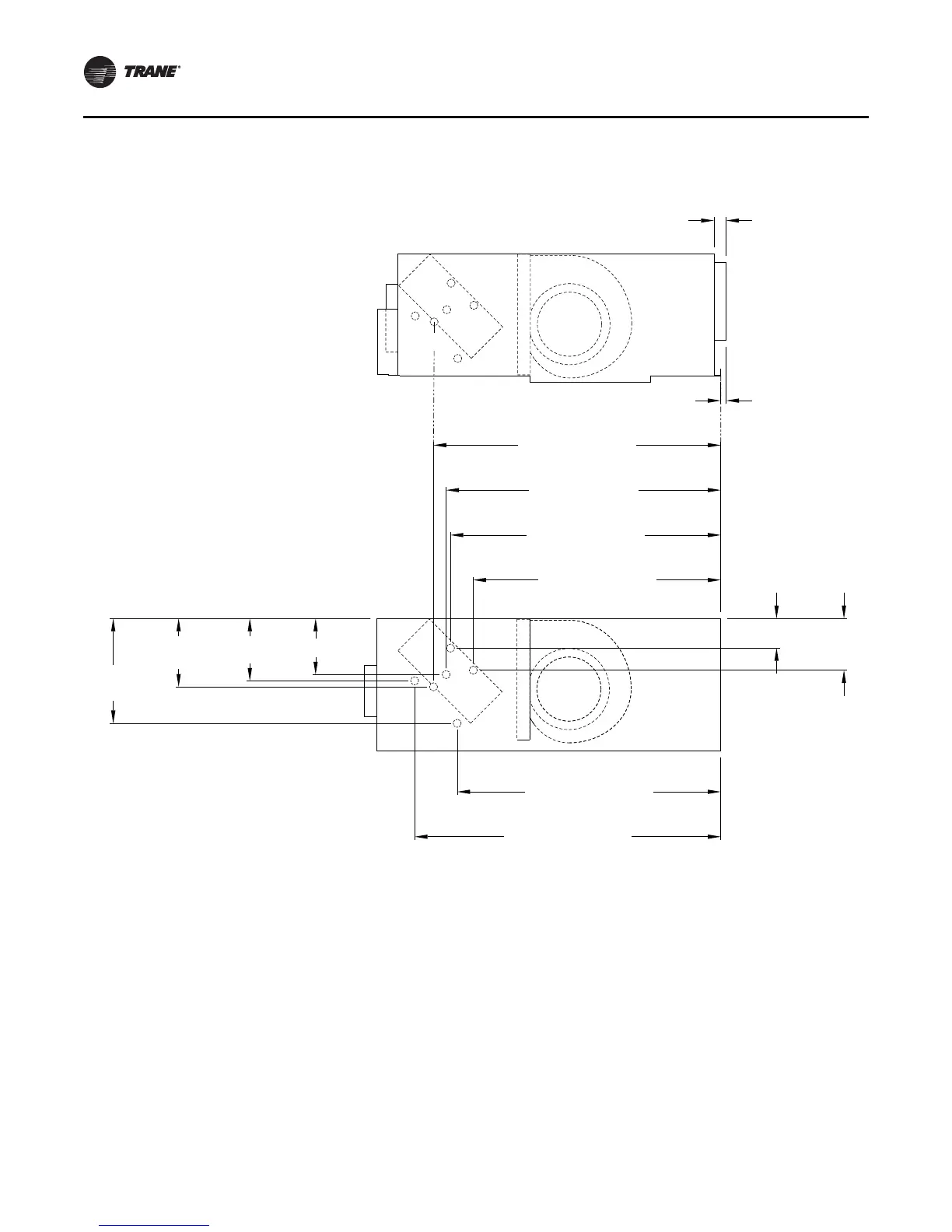

Figure 17. Coil connections for fan coil horizontal units
Horizontal Concealed
Horizontal Recessed
(Recess panel not shown)
HR
HS
CR
RHS
CS
RHR
1 in.
7/16 in.
22 3/8 in. CS
21 3/8 in. CR
21 1/16 in. HR
19 5/16 in. HSDimensions are typical
to horizontal unit styles.
5 5/16 in.
CS
4 7/8 in.
RHS
4 3/8 in.
CR
8 3/16 in.
RHR
Horizontal Cabinet
HR
HS
CR
RHR
CS
RHS
20 9/16 in. RHR
23 7/8 in. RHS
2 5/16 in. HR
4 in. HS
