Dimensions and Weights
UNT-SVX07E-EN 43
Coil Connections
Fan Coil Vertical Units
Table 15. Compact concealed unit dimensions (in.)
Unit Size 200-300 400 600 800 1000-1200
A 32 11/16 37 11/16 47 3/16 55 11/16 74 11/16
B 21 5/16 26 5/16 35 13/16 44 5/16 63 5/16
C 22 13/16 27 13/16 37 5/16 45 13/16 64 13/16
D 19 3/8 24 3/8 33 7/8 42 3/8 61 3/8
E 18 1/8 23 1/8 32 5/8 41 1/8 60 1/8
F 19 5/16 24 5/16 33 13/16 42 5/16 61 5/16
Notes: Coil connections are always on the drain pan side and opposite the control box. Coil connections are 5/8-in. O.D. sweat. See page 43 for
locations. All duct collar dimensions are to the outside of the collar. See page 47 for dimensions for outside air openings.

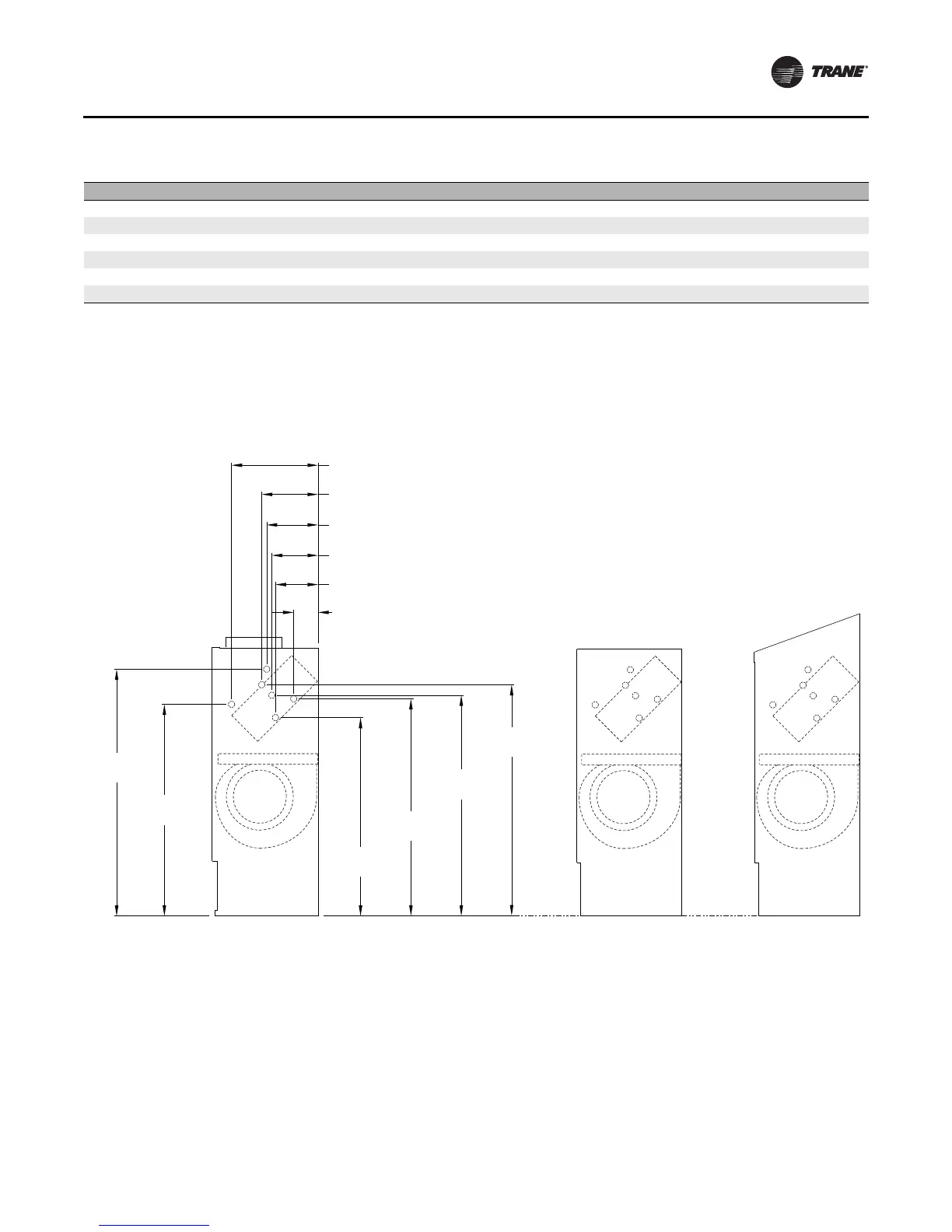

Figure 16. Coil connections for fan coil vertical units
8 3/16 in. RHR
5 5/16 in. CS
4 7/8 in. RHS
4 3/8 in. CR
4 in. HS
2 5/16 in. HR
Dimensions are typical
to vertical unit styles.
Vertical Concealed
Vertical Recessed
(recess panel not shown)
Vertical Cabinet
Vertical Slope
Top
RHS
CS
RHS
CR
HR
HS
CS
RHR
CR
HR
HS
RHR
RHS
RHR
23 1/4 in.
RHS
19 15/16 in.
RHR
18 11/16 in.
HS
20 1/2 in.
HR
20 13/16 in.
CR
21 13/16 in.
CS
Bottom of Vertical Units
CS
CR
HR
HS
