UNT-SVX07E-EN 61
Installation - Zone Sensors
Zone Sensor Options
Control sensor options include both unit-mounted
(factory-installed) and wall-mounted sensors. Tracer™
controller options available for the zone sensors are:
• Tracer ZN010 is a stand-alone microprocessor
controller that controls fan coils and cabinet heaters.
• Tracer ZN510 is a discrete speed controller that can be
used in a stand-alone application or can communicate
with a building automation system using LonTalk
®
Communication
• Tracer ZN520 is a discrete speed controller that can be
used in a stand-alone application or can communicate
with a building automation system using LonTalk
Communication
• Tracer UC400 delivers single zone VAV control in a
stand-alone operation or as part of a building
automation system using BACnet
®
communications
Zone sensors have an internal thermistor and operate on
24 Vac. Options with setpoint knobs are available in
Fahrenheit or Celsius. See Figure 38 through Figure 47 for
available options and model number references.
ZN010 Controller Options
ZN010 are standalone controllers.
ZN510, ZN520, UC400 Controller Options
ZN510, ZN520, and UC400 controllers communicate with
a building automation system.

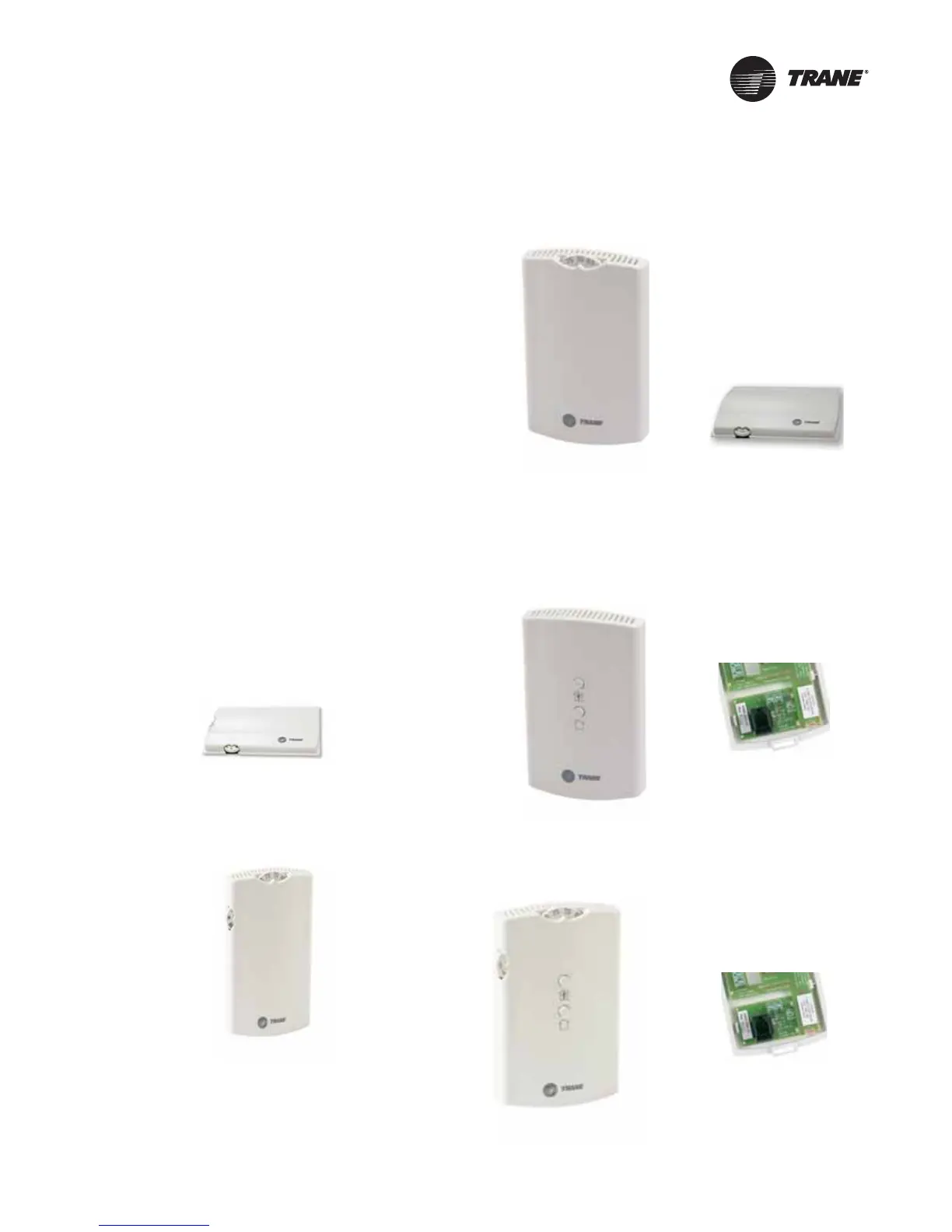

Figure 38. Digit 30 = E and Digit 31 = V
Unit-mounted zone sensor
Figure 39. Digit 30 = E and Digit 31 = W
Wall-mounted zone sensor
X13790843-01
Unit mounted zone sensor
Figure 40. Digit 30 = E and Digit 31 = X
Split-mounted zone sensor, unit-mounted
fan mode and wall-mounted setpoint dial
Figure 41. Digit 30 = F, G, J or K and Digit 31 = 1
Wall-mounted zone sensor
Figure 42. Digit 30 = F, G, J or K and Digit 31 = 2
Wall-mounted zone sensor
X13790849-01
Unit-mounted sensor
X13511530-01
Wall-mounted sensor
Comm module
