Trane UniTrane Fan-Coil User Manual

Dimensions and Weights
38 UNT-SVX07E-EN

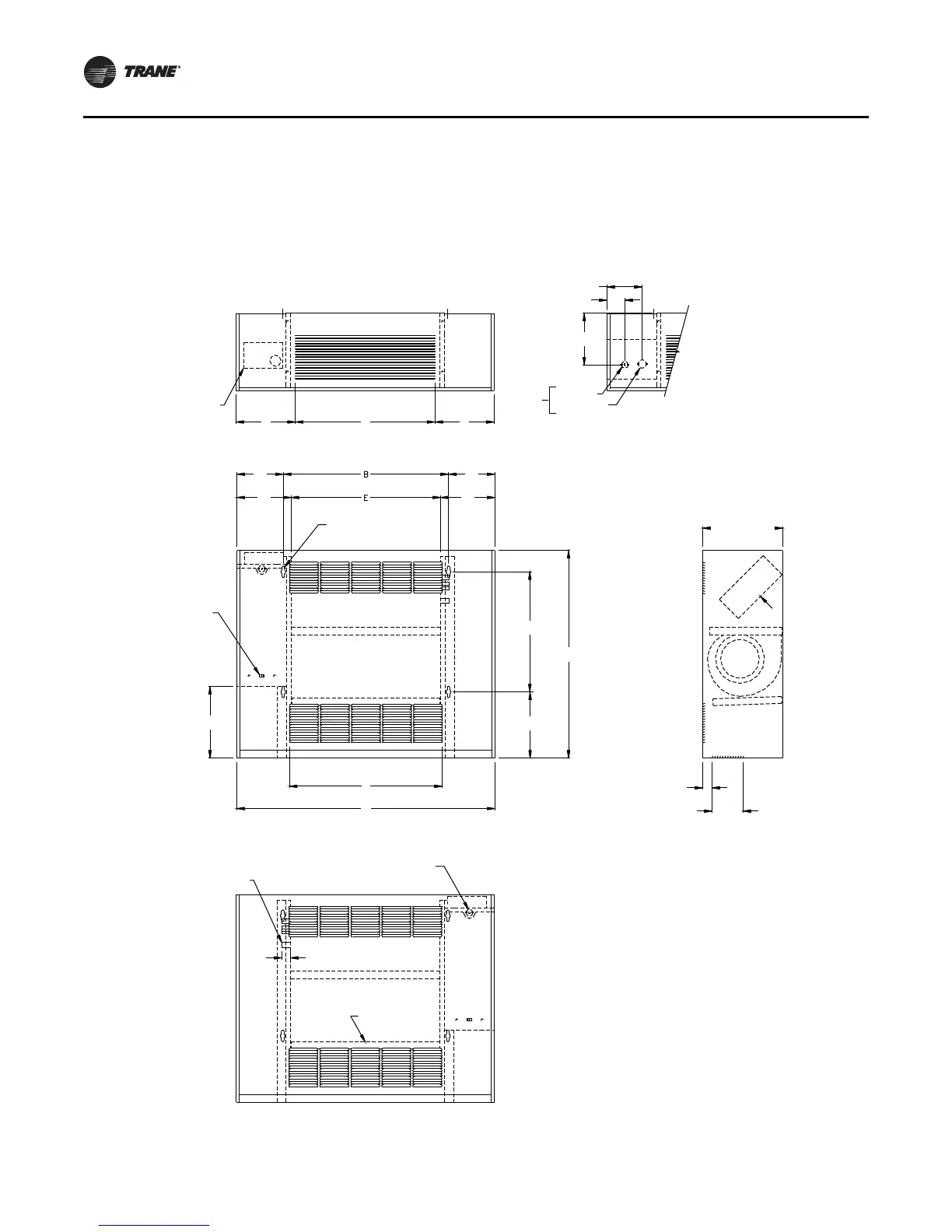

Model M Inverted Vertical Cabinet
Force-Flo Unit Only
Top View
Unit control
top
4 9/16 in.
2 5/16 in.
6 5/8 in.
Power
wiring
bottom
only
7/8 in.
KO
1 3/32 in.
KO
Top outlet quadrifuser
or bar grille
C
D
C
6 in.
7 in.
6 in.
7 in.
Front view
RH Piping
Optional
disconnect
switch
9 1/4 in.
Front outlet louvers
(optional)
Front inlet louvers
Bottom and front
inlet and outlet louvers
A
F
15 1/2 in.
26 13/16 in.
8 9/16 in.
(4) 5/8 in. dia keyslot
hanger holes
Control
box
10 5/16 in.
Bottom inlet
louvers
1 1/4 in.
4 in.
Air
flow
Side
View
Front View
LH Piping
Coil connections
1 1/8 in.
Filters
Control
box
7/8 in. KKO
control wiring
