2. Description
2.1 Specific parts for the electric bicycle

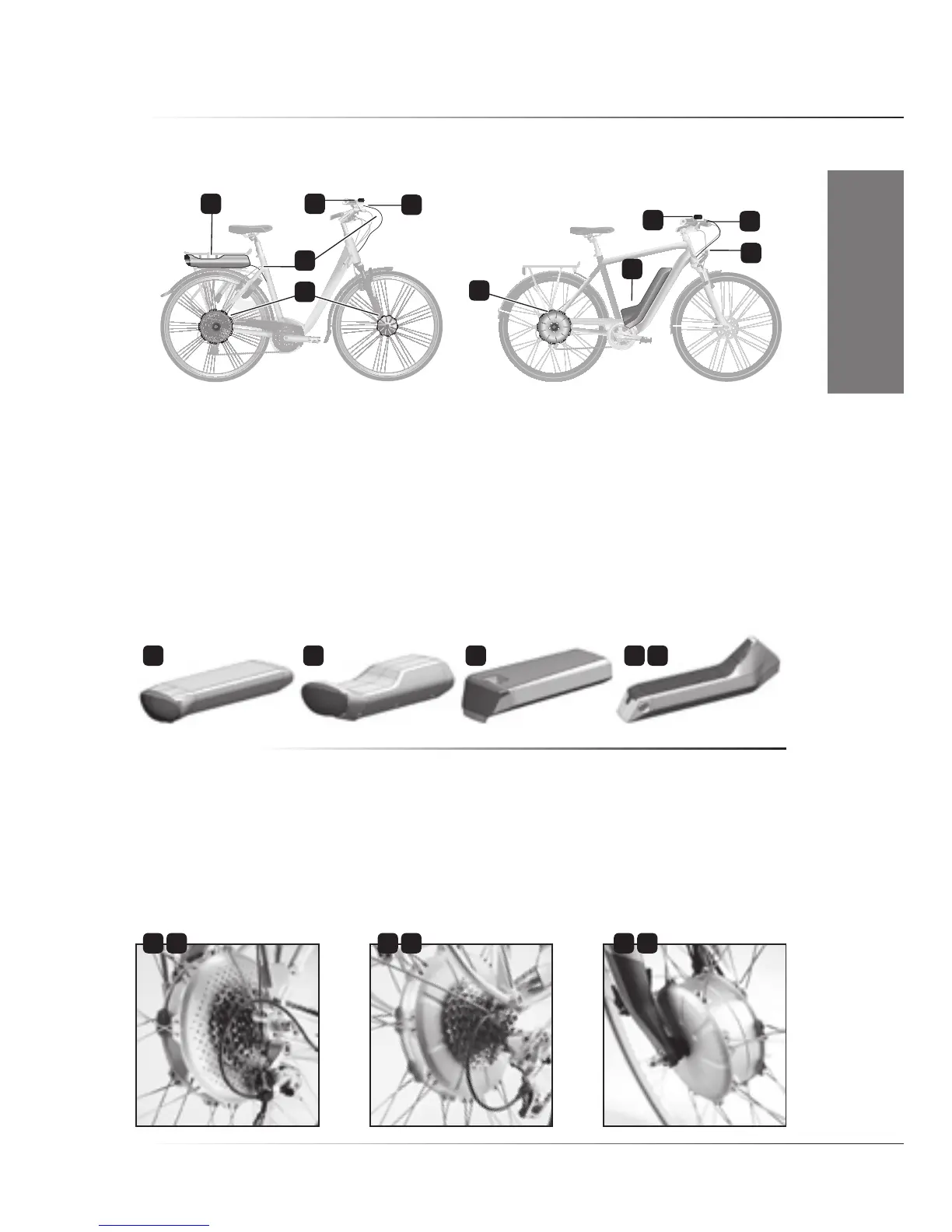

There are several models of electric bicycles, with different equipment options. Find the options
that are on your electric bicycle. In the pictures of the bikes you will find the battery pack (1), the
motor‘frontorrear’(2),thecontroller(3),thebrakeswitch(4),andthewiringharness(5).
• Battery packs
There are four types of battery packs for RIDE+ bicycles:
1.‘RIDE+R250batterypack’,containing30Li-Mn(Lithium-Ion)cells,4.8Ah,250Wh.
2.’RIDE+ R320 battery pack’, containing 39 Li-Mn (Lithium-Ion) cells, 6.6 Ah, 320 Wh.
3.‘RIDE+ C320 battery pack’, containing 39 Li-Mn (Lithium-Ion) cells, 6.6 Ah, 320 Wh.
4.’RIDE+C420batterypack’,containing52Li-Mn(Lithium-Ion)cells,8.8Ah,420Wh.
• Motor configurations
1.250WRIDE+Rearmotor,derailleurandRollerBrakes.
2.250WRIDE+Rearmotor,derailleuranddiscbrakesorrimbrakes(MaguraorV-brakes).
3.250WRIDE+RearSLmotor(lightweight),derailleurandRollerBrakes.
4.250WRIDE+RearSLmotor(lightweight),derailleuranddiscbrakesorrimbrakes(Maguraor
V-brakes).
5.250WRIDE+Frontmotor,InternalgearhubandRollerBrakes.
6.250WRIDE+Frontmotor,Internalgearhubandrimbrakes(MaguraorV-brakes).
