Four zeros will appear, with the first zero blinking.
Enter the appropriate code by pressing button ‘+’ for a higher value, ‘-’ for a lower value. Press
button‘On/Off’toselectavalueandmovetothenextdigit.Afterenteringthecorrectvalueforthe
fourthdigit,pressbutton‘On/Off’tomoveintothechosenmenu.Intheprogrammingmenu,
buttons‘+’and‘-’willmovetoahigherorlowervalue.Pressingbutton‘On/Off’willsavetheentry
and move you to the next step, or back to the regular display.
Codes:
2001 to switch between miles and kilometers.
2004 to set the time.
2009 to swap the function of the buttons from left to right and vice versa.
2011 to change the display language. Use button to scroll through the languages.
3771 to set the correct wheel diameter.
5. Maintenance
After the first two to three weeks of use, or 300 km, have your dealer check the spokes in the rear
wheel. The motor is of the ‘brushless’ type and requires no maintenance.
Check the connections of the system every two to three months. Make sure that no dirt or moisture
can get into the ‘docking station’ (connector) when the battery pack is not on the bike. If you notice
anything like this, clean with a smooth, dry brush.
5.1 Cleaning
Whencleaningthebike,useaspongeand/orasoftbrush.Forthebatterypackcase,adampcloth
suffices.Uselittlewater.Keepwaterawayfromtheelectricalconnections.
Notice. Do not use a jet-wash. The powerful water-jet may damage the electronics.
5.2 Removal and refitting of wheels for bikes with a rear wheel motor
Removal and refitting of the rear wheel is best left to your dealer. If you are forced to do it yourself,
follow the instructions.
• Removal of the rear wheel
1. Make sure that the system is switched ‘Off’.
2. Change to the highest gear.
3. Remove the battery pack from its docking station.

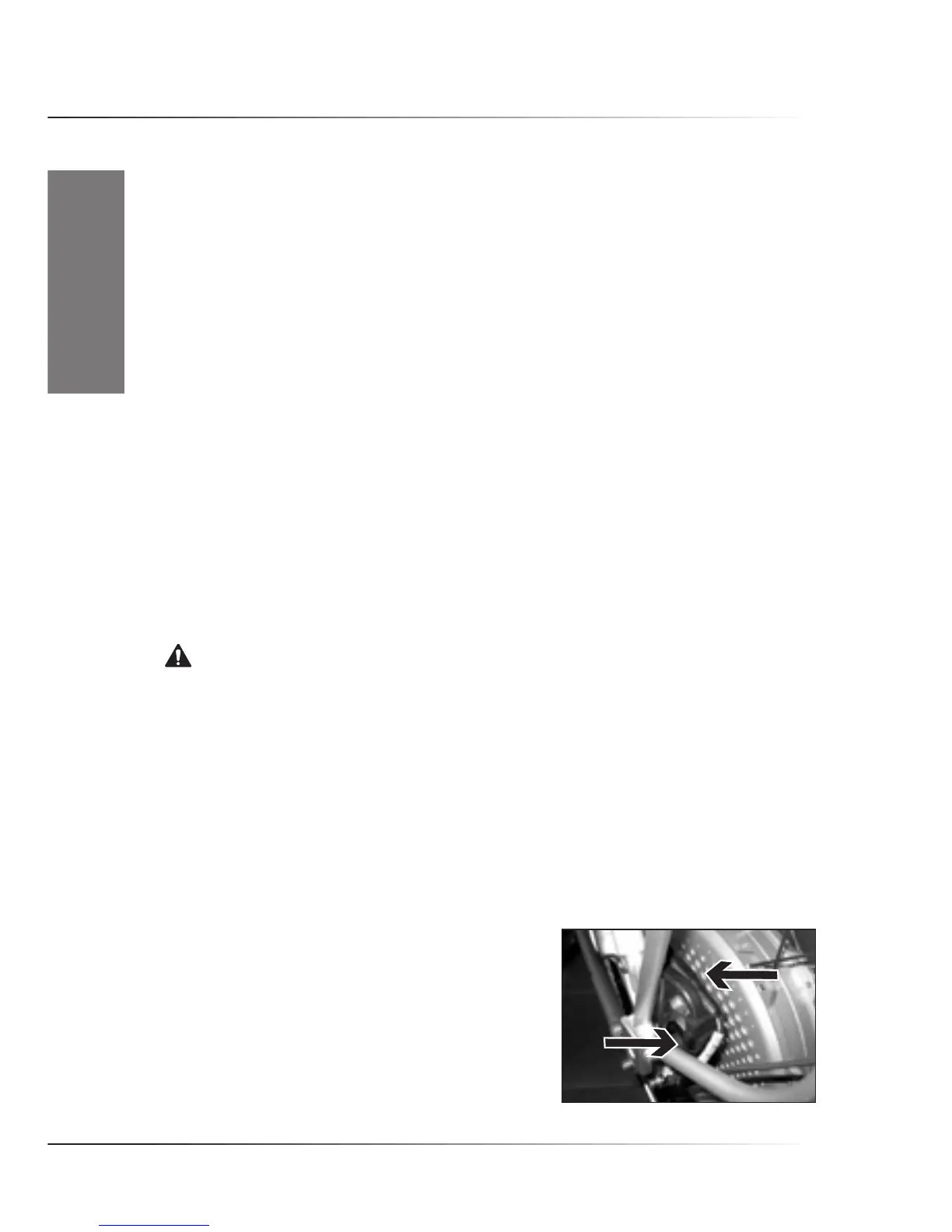

4. Unplug the connectors of the motor at the left hand side of the hub. Make sure that both cables
are unplugged. (see photo).
5. Disconnecttherearbrake:
 -V-brakes,Magurabrakes:releasetherearbrake.
- Roller brakes: unhook the cable and housing stop from
the brake. Undo the reaction arm bolt.
6. Loosen and remove the axle nuts.
7. Slidethewheelforwardinthedropoutsuntilthewheel
can be removed.
8. Removethechainfromthesprocket.
9. Remove the wheel.
