TRENDnet TEW-735AP User Manual

TRENDnet User’s Guide TEW-735AP
© Copyright 2015 TRENDnet. All Rights Reserved. 19

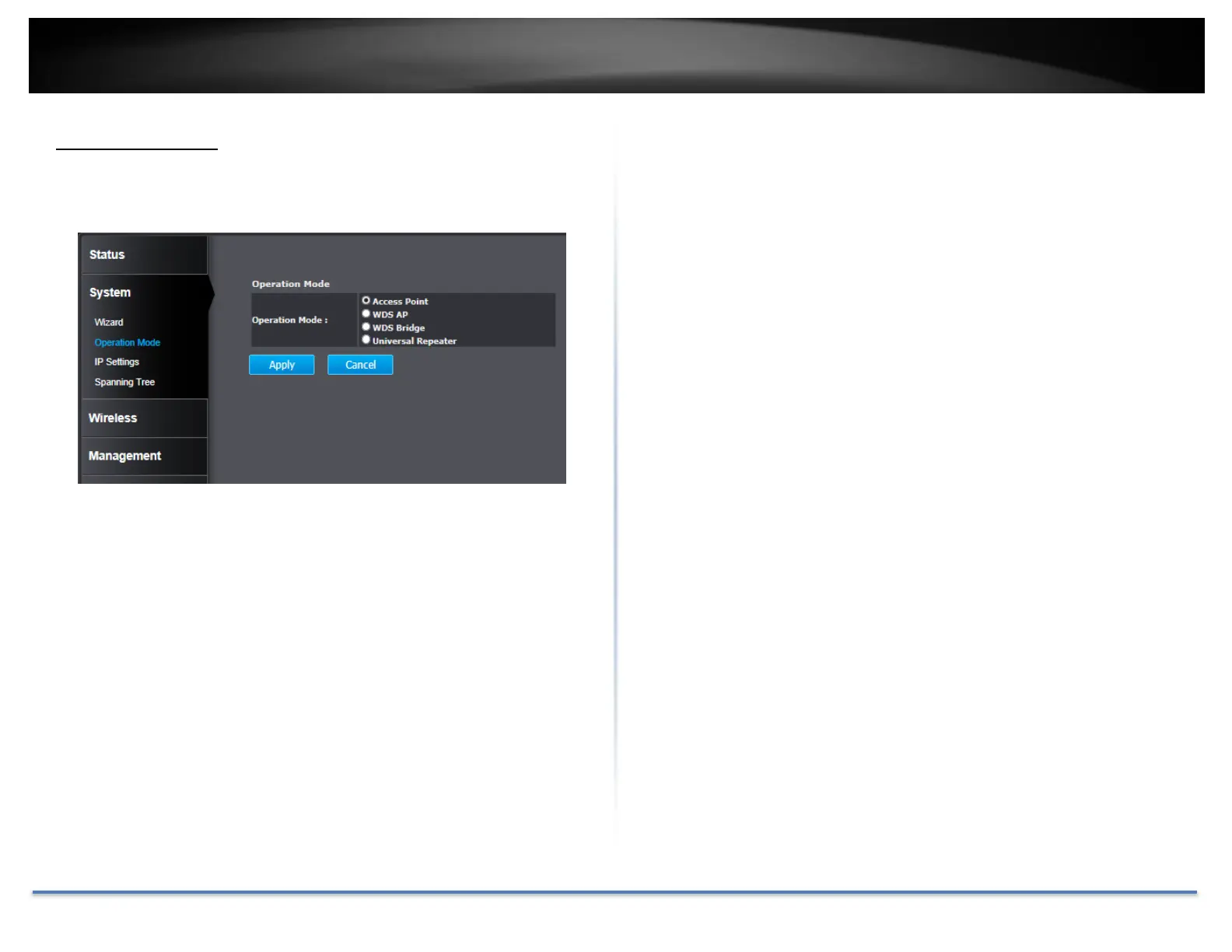

Operation Mode
You can choose the mode that best suits your network: Access Point, WDS
AP, WDS Bridge and Universal Repeater.
Access Point
This is the default operation mode. Wireless clients, known as wireless
stations (STAs), can wirelessly associate with the TEW-735AP and
connect to the Internet via the network port.
WDS AP
In this operation mode, theTEW-735AP wirelessly connects to other WDS
(Wireless Distribution System) enabled devices for backbone
communication and provides wireless connectivity to clients (STAs) at
the same time.
WDS Bridge
In this operation mode, the TEW-735AP connects ONLY to other WDS
(Wireless Distribution System) enabled devices as a backbone bridge.
Universal Repeater
When Repeater Mode is selected, the TEW-735AP functions as a wireless
repeater and is able to repeat the wireless signal of an access point. This
feature is used to expand your existing wireless network to areas your
current access point is unable to reach. Make sure all the settings of the
TEW-735AP match the wireless access points you want to repeat,
including the SSID, channel, and wireless encryption settings.

TRENDnet TEW-735AP Specifications

General

Modulation	-
Frequency band	2.4 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11az, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC
WAN connection	Ethernet (RJ-45)
Security algorithms	WPA2
Operating temperature (T-T)	0 - 45 °C
Power supply	12 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45)
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	4 dBi

Weight and Dimensions

Depth	60 mm
Width	128 mm
Weight	210 g
