TRENDnet TEW-735AP User Manual

TRENDnet User’s Guide TEW-735AP
© Copyright 2015 TRENDnet. All Rights Reserved. 14

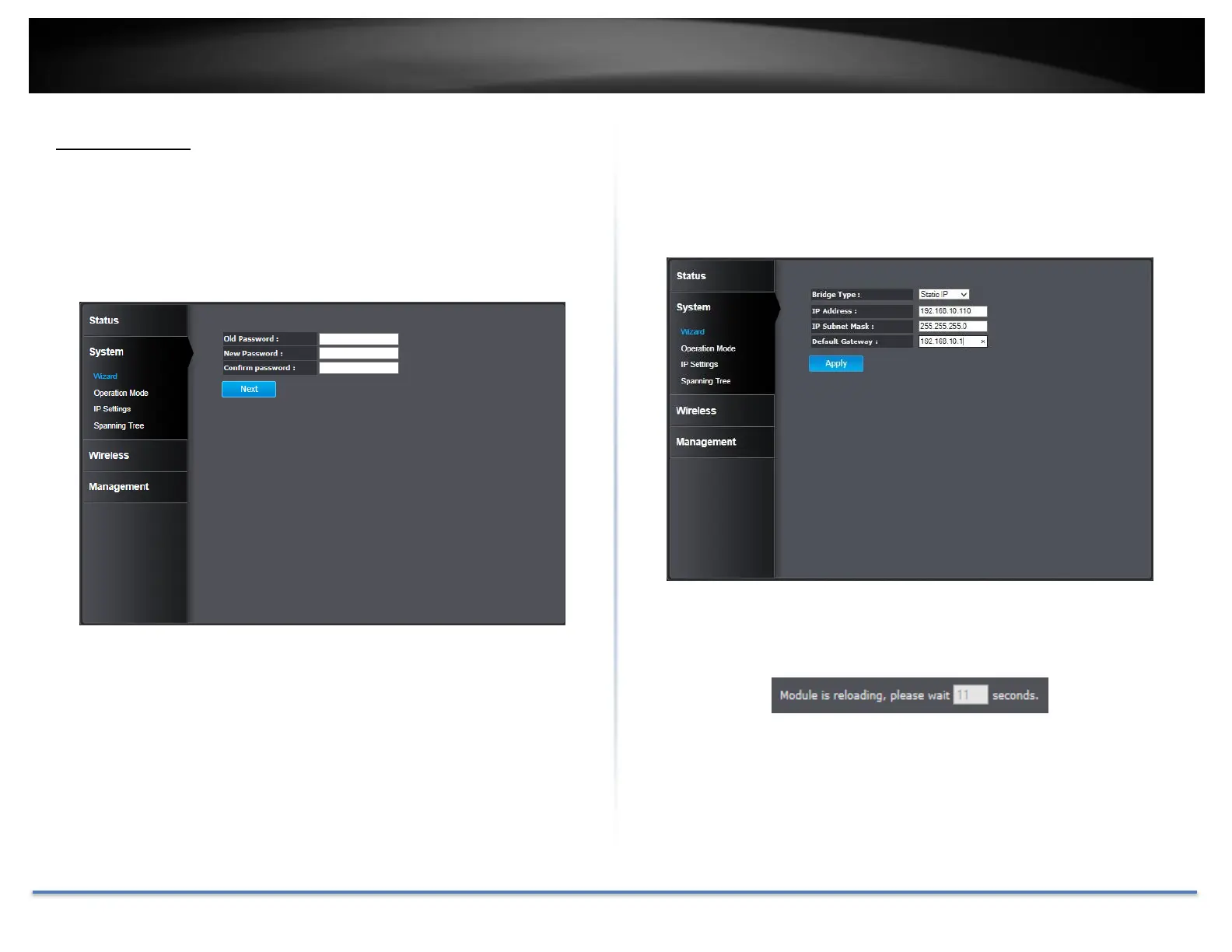

Setup Wizard
The setup wizard is provided as part of the web configuration utility. It
assists in the basic setup of the administrator password and management
IP address. Click the Wizard button in the System menu to access the
setup wizard. The following screen will appear. Enter a new administrator
password and then click Next to continue.
Enter the management IP address for the TEW-735AP. The default IP
address is 192.168.10.100. Assign a unique IP address within the
management subnet. The management subnet. You can leave it on default
if you have only one TEW-735AP, but you have to change the IP address if
you have more than one TEW-735AP.
Click Apply to save the changes and reboot the TEW-735AP.

TRENDnet TEW-735AP Specifications

General

Modulation	-
Frequency band	2.4 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11az, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC
WAN connection	Ethernet (RJ-45)
Security algorithms	WPA2
Operating temperature (T-T)	0 - 45 °C
Power supply	12 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45)
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	4 dBi

Weight and Dimensions

Depth	60 mm
Width	128 mm
Weight	210 g
