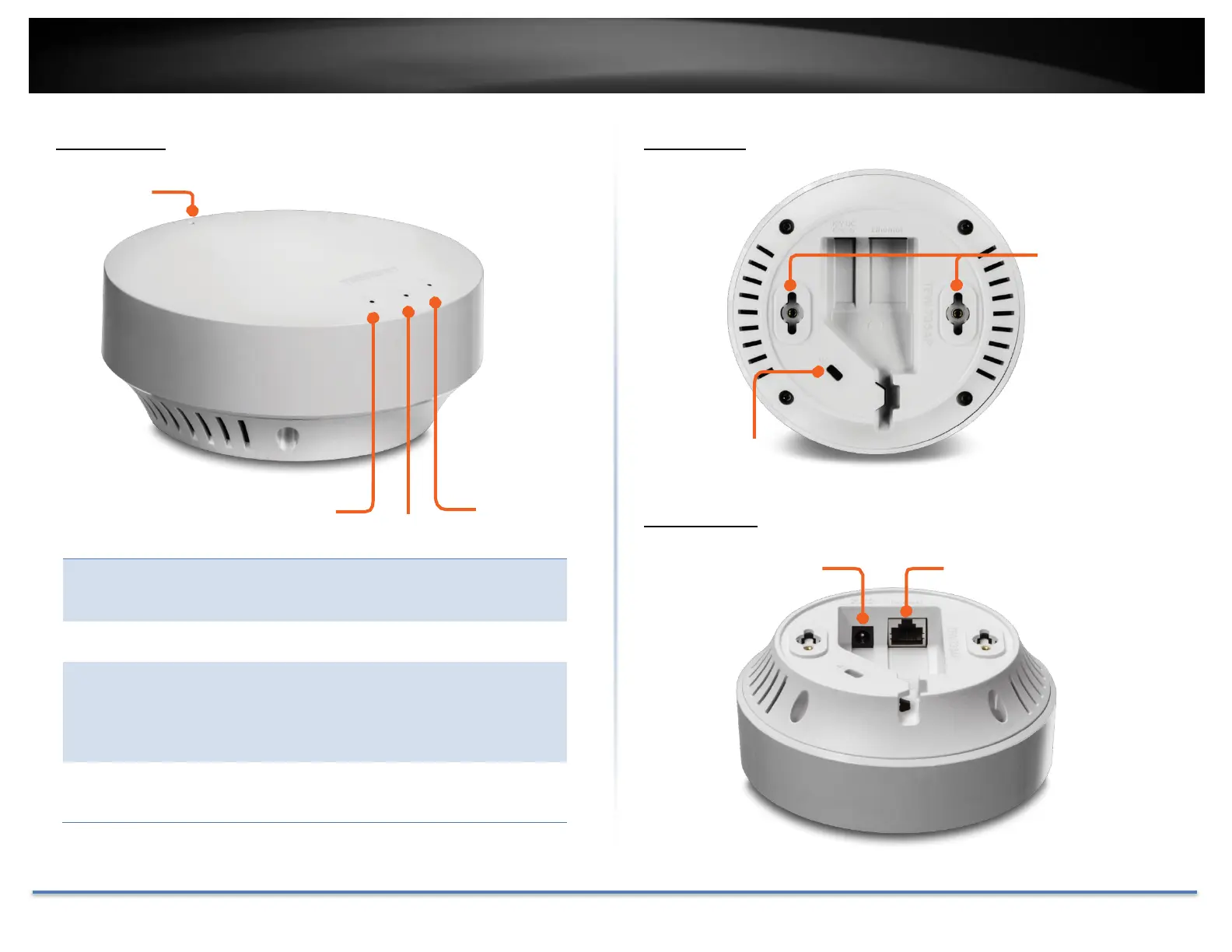

Front View
Reset
Button
 Push and hold for 2 seconds to reset TEW-735AP
 Push and hold for more than 10 seconds to reset
all settings to factory default.
Power LED
ON: Powered on
OFF: Powered off or LED display has been disabled.
Network
LED
ON: Network connected through network port.
Flashing: Network activities are detected on
network port.
OFF: No network connection detected on the
network port or LED display has been disabled.
Wireless
LED
Flashing: Wireless network activities are detected.
OFF: No wireless network connection or LED
display has been disabled.
Rear View
Connectors
Power LED
Wireless LED
Reset
Button
Mounting
Holes
Kensington
Security Slot
10/100 PoE Network Port
DC Power 12V DC 1A
(Optional)
Network LED
