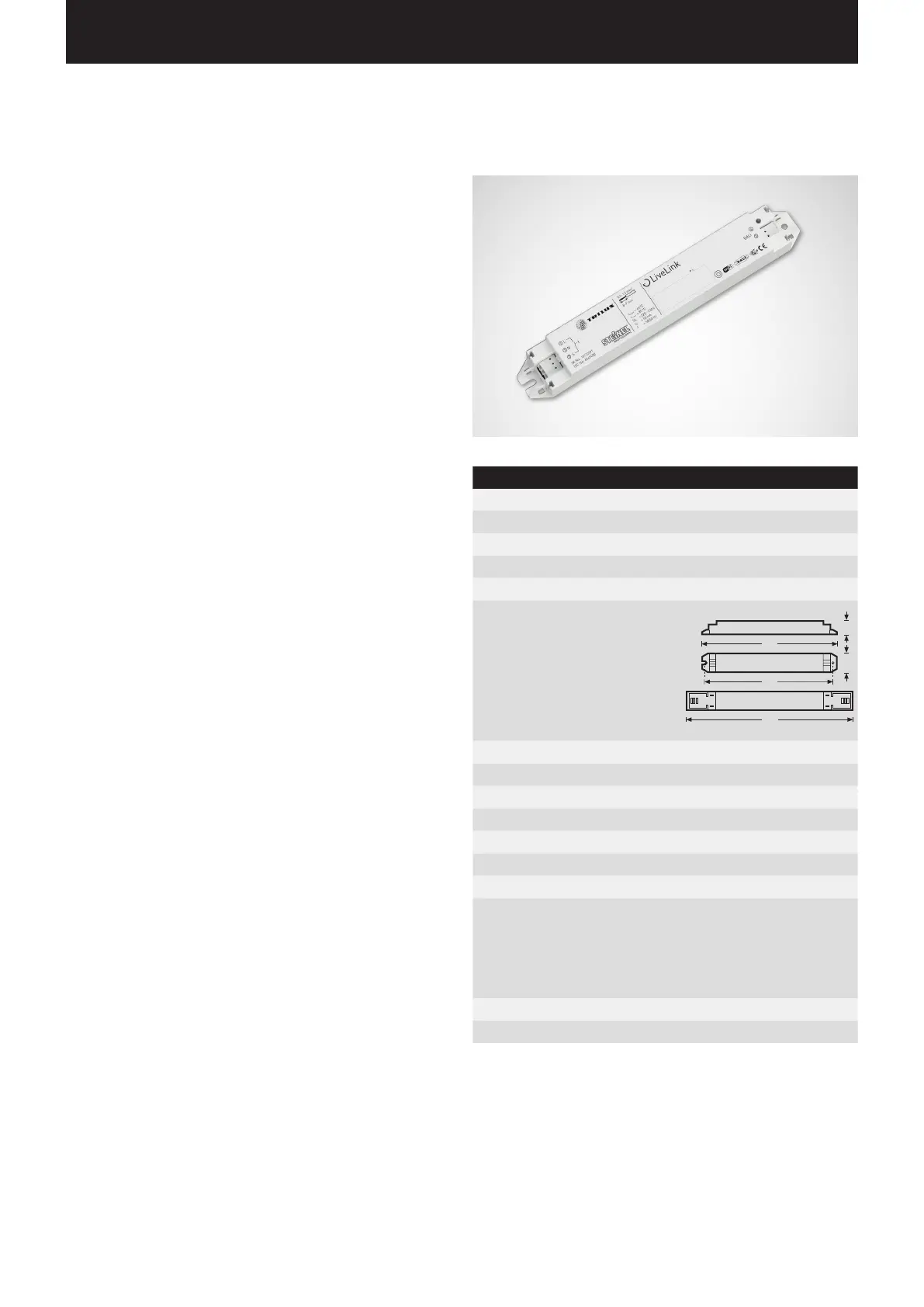

INTRODUCTION / CONTROLLER Page 5 / 77
CONTROLLER
The control device – the intelligent command centre.
The core element of the LiveLink control device is a Linux-based
high-performance minicomputer which processes the incoming data
streams and issues control commands to the system components.
For a particularly straight-forward communication with the user,
the control device is equipment with an integrated WLAN module for
controlling via tablet or smart phone.
Compact design – great leeway.
Thanks to its compact dimensions with a construction depth of only
21 millimetres, the control device itself can fit without a problem even
underneath shallowly suspended ceilings. Upon request it is also
available integrated directly into a luminaire (master luminaire).
DALI interface for clever light management.
With the universal DALI interface, DALI-capable luminaires, sensors,
and push-buttons can be integrated, configured, and controlled effort-
lessly. Each control device can individually address up to 16 luminaire
groups. The maximum number of DALI participants is 64.
Comfortable control via tablet or push-button.
The luminaires and/or groups of luminaires can be controlled either
with a commercial installation push-button or via mobile app on a tab-
let or smart phone. Additional push-buttons can be connected via an
optional LiveLink DALI push-button coupler that is simply integrated
into the DALI control circuit. The push-button can be configured freely
– this way, “offline” groups of luminaires can be controlled, too, or
light scenarios called up.
Autarkic encryption for more security.
For protection against external access, the control device is equipped
with a WLAN network with autarkic encryption. This way, the system
remains unaffected by cyber attacks against the general computer
network.
Configuration survives power outage.
No reprogramming is required after a power outage; the system con-
figuration is stored in the control device.
Technical Data
Weight 76 g
Input voltage 220-230 V
Input current max. 50 mA
Input frequency 50/60 Hz
Standby power consumption <2 W
Measurements
22
204
190
30
DALI participants max. 64
WiFi IEEE 802.11b
WiFi encryption WPA2
WiFi range max. 25 m
Protection rating IP20
Temperature of case tc max 85 °C
Ambient temperature ta max 65°C
Standards: IEC 61347-2-11
EN 55015
EN 61000-32
EN 61000-33
EN 61000-547
IEC 62386
Cable length for DALI max. 300 m
Cable length for push-button max. 25 m
