Trilux LiveLink User Manual

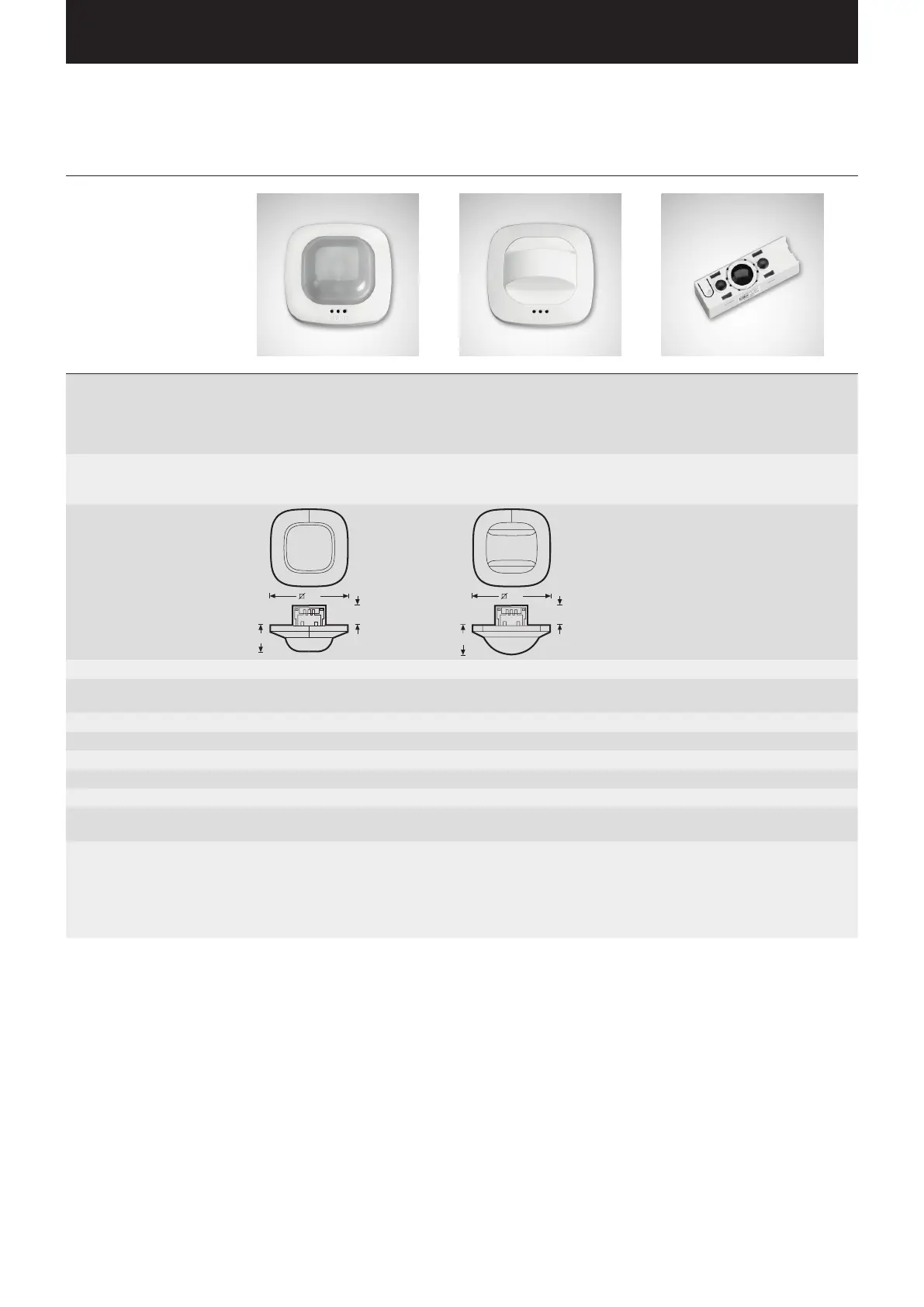

INTRODUCTION / SENSORS / TECHNICAL DATA Page 8 / 77
Type Quattro HD Dual HF LS/PD LI
Characteristics
• Square detection area typical
for a room
• Particularly high sensitivity
and range
• Dual directional characteristic
for targeted detection of hall-
ways and corridors
• Temperature-independent
detection
• Compact design for installation in
luminaire or, optionally, in ceilings
• Upon request, available installed
in a LiveLink master luminaire
Sensor type • Passive infra-red presence
sensor (PIR)
• Light sensor
• HF sensor
• Light sensor
• Passive infra-red presence
sensor (PIR)
• Light sensor
Dimensions (H x W x D)
30
120
40
30
120
45
Site of operation In the interior area of buildings In the interior area of buildings In the interior area of buildings
Sensor system 13 detection areas,
4800 switching zones
High frequency 5.8 GHz,
transmitting power < 1 mW
Light value setting 10-1000 Lux 10-1000 Lux 20-800 Lux
Protection rating IP20 (IP54 with AP box) IP20 (IP54 with AP box) IP20
Protection class II II II
Temperature range 0 °C to +40 °C 0 °C to +40 °C -20 °C to +50 °C
Number of DALI participants 2 7 2
Height of installation
(ceiling mount)
2.5 - 10 m 2.5 - 3.5 m 2 - 5 m
Detection angle/
square
Presence; max. 8 x 8 m (64 sqm)
Circular: max. 8 x 8 m (64 sqm)
Tangentially: max. 20 x 20 m (400 sqm)
see diagram;
Where applicable, through glass,
wood and lightweight walls;
Range max. 10 x 3 m,
electronically adjustable in each
direction continuously variable
max. diameter 7.0 m
TECHNICAL DATA

Trilux LiveLink Specifications

General

Type	Control Unit
Input Voltage	230V AC
Frequency	50/60 Hz
Protection Rating	IP20
Communication Protocols	DALI
Mounting Options	DIN rail
