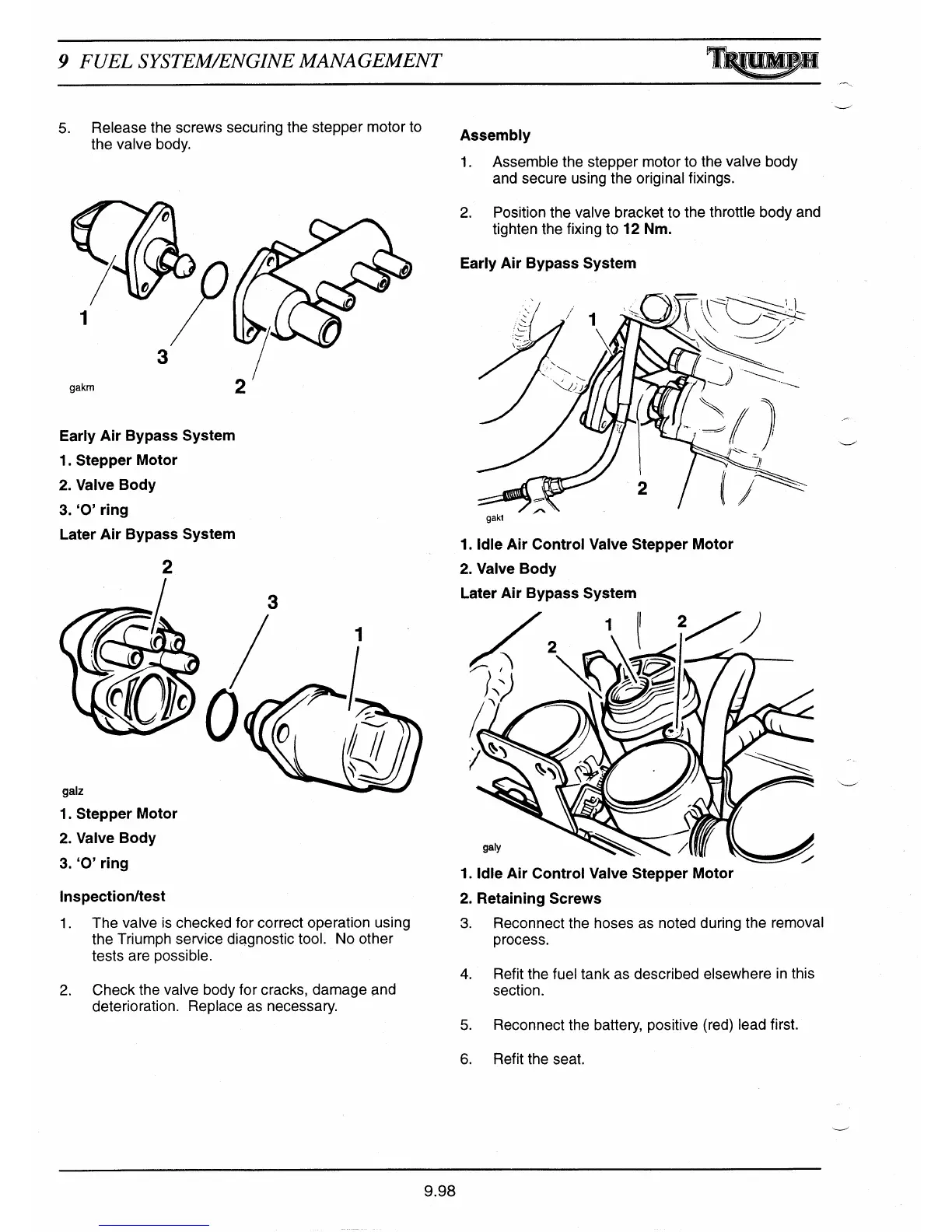

Triumph SPEED TRIPLE 955cc - Idle Air Control Valve Inspection and Assembly; Early Air Bypass System

gakm
9 FUEL SYSTEM/ENGINE MANAGEMENT
UQ29H
5.
Release the screws securing the stepper motor to
the valve body.
Early Air Bypass System
1.
Stepper Motor
2. Valve Body
3.
`0' ring
Later Air Bypass System
2
1
I
0
galz
1.
Stepper Motor
2.
Valve Body
3.
`0' ring
Inspection/test
1.
The valve is checked for correct operation using
the Triumph service diagnostic tool. No other
tests are possible.
2.
Check the valve body for cracks, damage and
deterioration. Replace as necessary.
Assembly
1. Assemble the stepper motor to the valve body
and secure using the original fixings.
2.
Position the valve bracket to the throttle body and
tighten the fixing to 12 Nm.
Early Air Bypass System
gakt -
1. Idle Air Control Valve Stepper Motor
2. Valve Body
Later Air Bypass System
1
(I
1.
Idle Air Control Valve Stepper Motor
2.
Retaining Screws
3. Reconnect the hoses as noted during the removal
process.
4. Refit the fuel tank as described elsewhere in this
section.
5.
Reconnect the battery, positive (red) lead first.
6. Refit the seat.
9.98
