Triumph SPEED TRIPLE 955cc - Exploded View - Front Wheel

375 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

'

^1

14 WHEELS/TYRES

_;

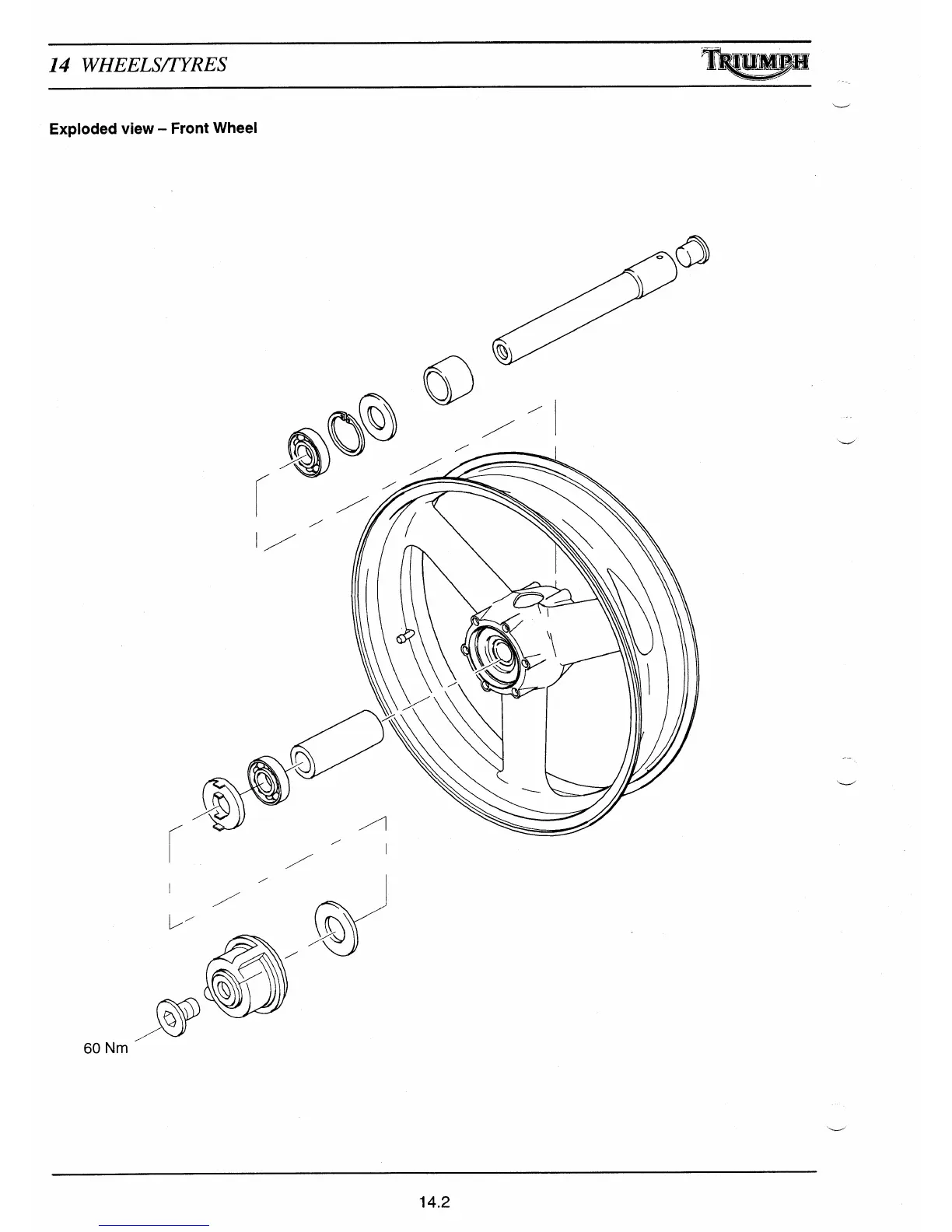

Exploded view - Front Wheel

60 Nm

14.2
