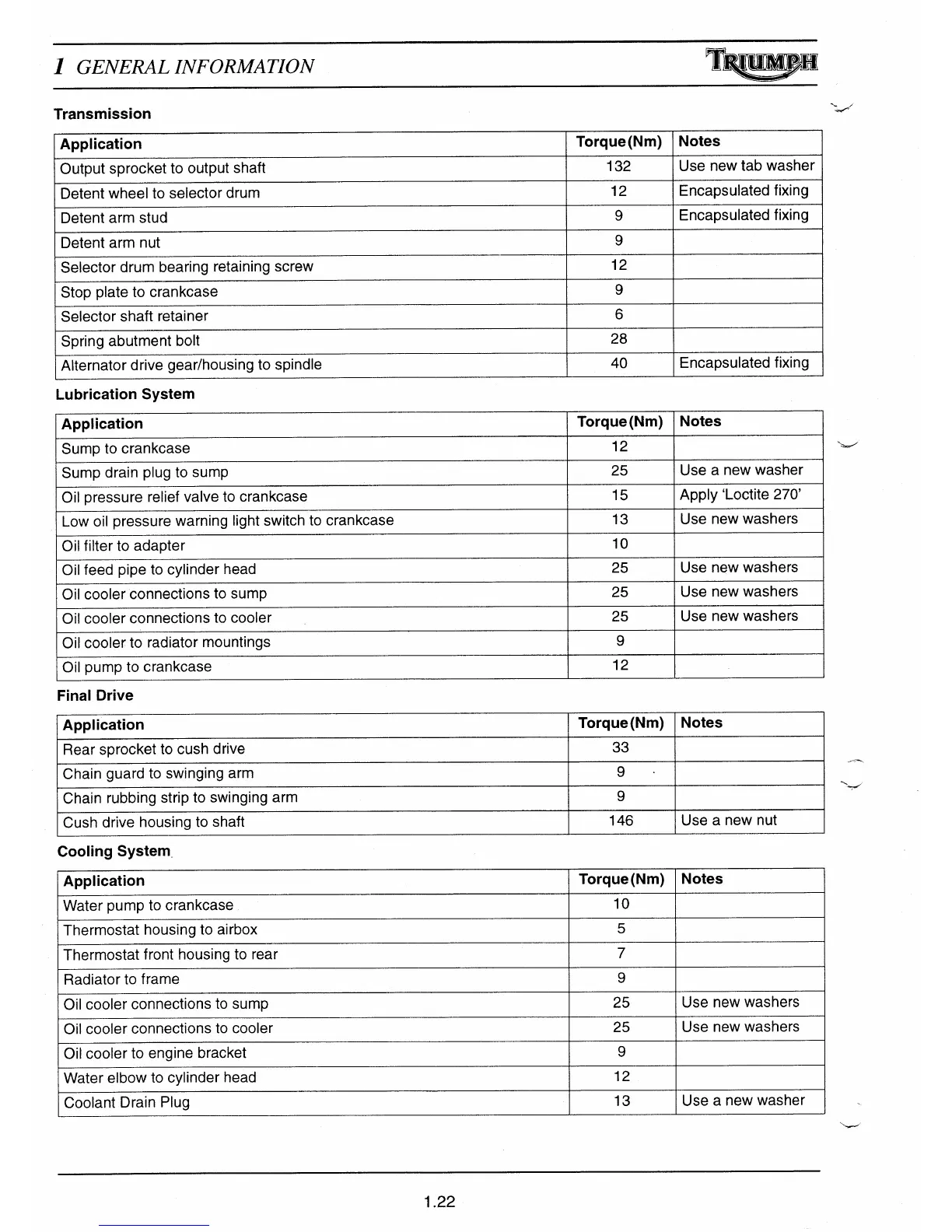

Transmission
1 GENERAL INFORMATION
Tkewff
Application
Torque(Nm)
Notes
Output sprocket to output shaft
132
Use new tab washer
Detent wheel to selector drum
12
Encapsulated fixing
Detent arm stud
9
Encapsulated fixing
Detent arm nut
9
Selector drum bearing retaining screw
12
Stop plate to crankcase
9
Selector shaft retainer
6
Spring abutment bolt
28
Alternator drive gear/housing to spindle
40
Encapsulated fixing
Lubrication System
Application
Torque(Nm)
Notes
Sump to crankcase
12
Sump drain plug to sump
25
Use a new washer
Oil pressure relief valve to crankcase
15
Apply `Loctite 270'
Low oil pressure warning light switch to crankcase
13
Use new washers
Oil filter to adapter
10
Oil feed pipe to cylinder head
25
Use new washers
Oil cooler connections to sump
25
Use new washers
Oil cooler connections to cooler
25
Use new washers
Oil cooler to radiator mountings
9
Oil pump to crankcase
12
Final Drive
Application
Torque(Nm)
Notes
Rear sprocket to cush drive
33
Chain guard to swinging arm
9
Chain rubbing strip to swinging arm
9
Cush drive housing to shaft
146
Use a new nut
Cooling System
Application
Torque(Nm)
Notes
Water pump to crankcase
10
Thermostat housing to airbox
5
Thermostat front housing to rear
7
Radiator to frame
9
Oil cooler connections to sump
25
Use new washers
Oil cooler connections to cooler
25
Use new washers
Oil cooler to engine bracket
9
Water elbow to cylinder head
12
Coolant Drain Plug
13
Use a new washer
1.22
