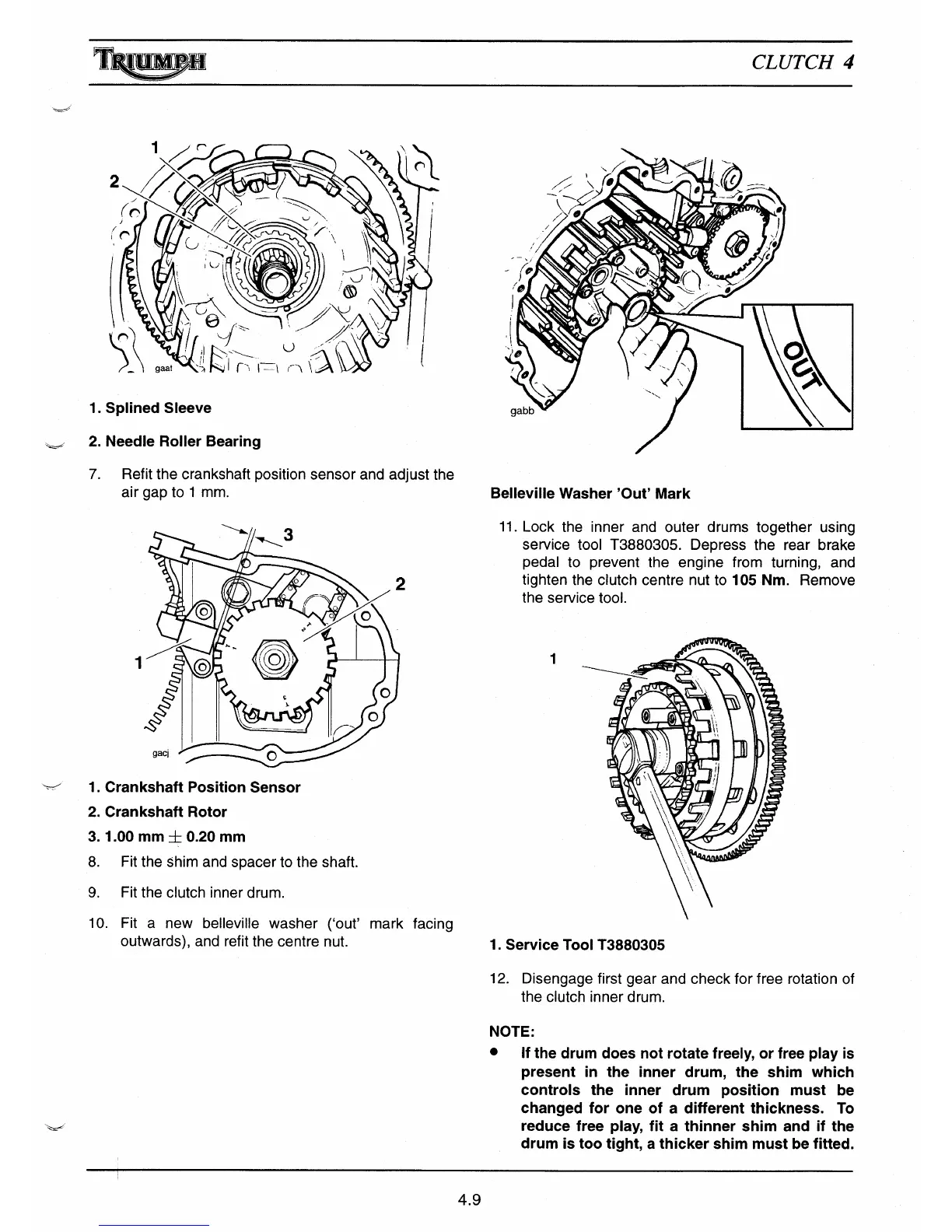

1.
Splined Sleeve
2.
Needle Roller Bearing
T°
I
UM['H
CLUTCH
4
7.
Refit the crankshaft position sensor and adjust the
air gap to 1 mm.
1
1.
Crankshaft Position Sensor
2.
Crankshaft Rotor
3.
1.00 mm±0.20mm
8. Fit the shim and spacer to the shaft.
9.
Fit the clutch inner drum.
10.
Fit a new belleville washer ('out' mark facing
outwards), and refit the centre nut.
Belleville Washer 'Out' Mark
11.
Lock the inner and outer drums together using
service tool 13880305. Depress the rear brake
pedal to prevent the engine from turning, and
tighten the clutch centre nut to
105 Nm.
Remove
the service tool.
1
1. Service Tool T3880305
12.
Disengage first gear and check for free rotation of
the clutch inner drum.
NOTE:
•
If the drum does not rotate freely, or free play is
present in the inner drum, the shim which
controls the inner drum position must be
changed for one of a different thickness. To
reduce free play, fit a thinner shim and if the
drum is too tight, a thicker shim must be fitted.
4.9
