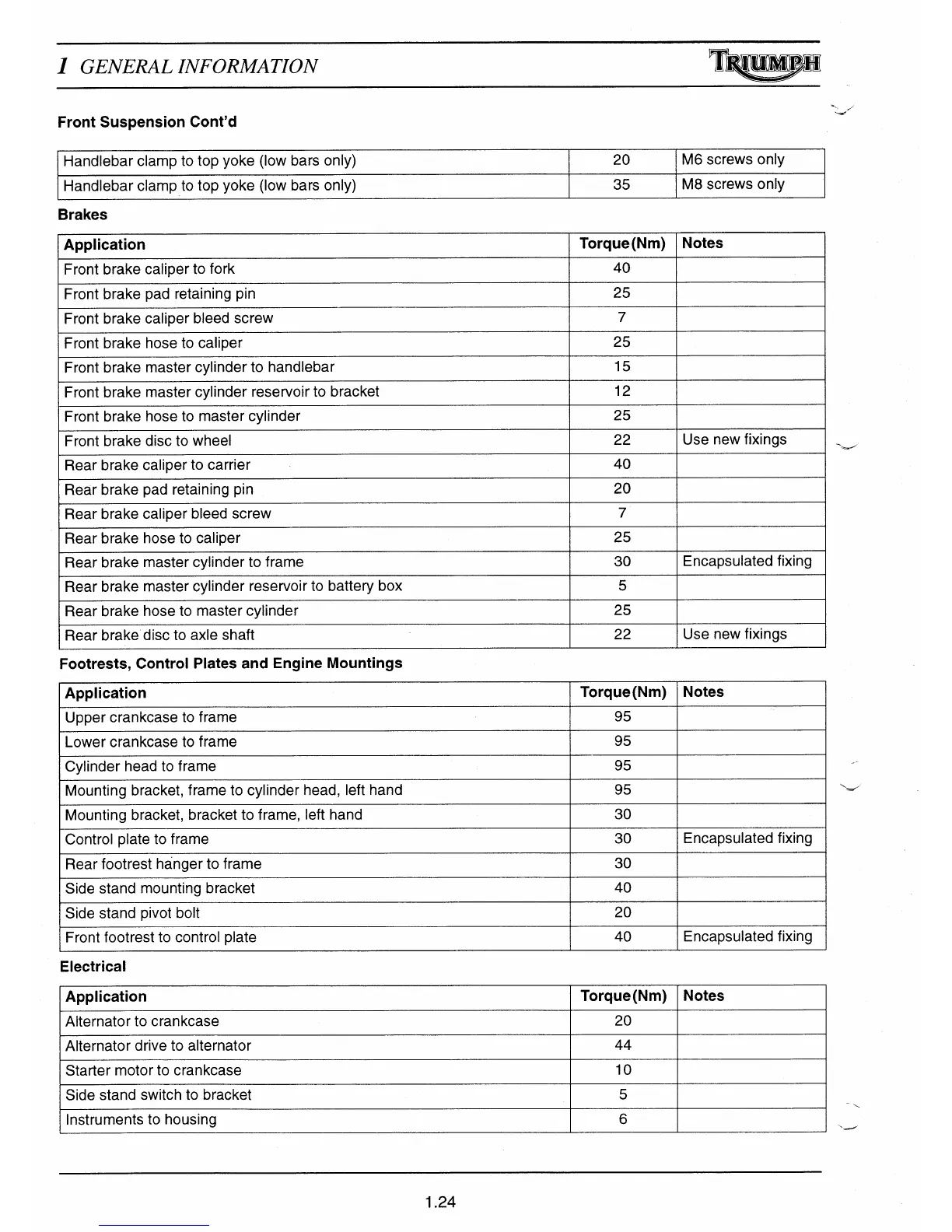

I GENERAL INFORMATION
Front Suspension Cont'd
Handlebar clamp to top yoke (low bars only)
20
M6 screws only
Handlebar clamp to top yoke (low bars only)
35
M8 screws only
Brakes
Application
Torque(Nm)
Notes
Front brake caliper to fork
40
Front brake pad retaining pin
25
Front brake caliper bleed screw
7
Front brake hose to caliper
25
Front brake master cylinder to handlebar
15
Front brake master cylinder reservoir to bracket
12
Front brake hose to master cylinder
25
Front brake disc to wheel
22
Use new fixings
Rear brake caliper to carrier
40
Rear brake pad retaining pin
20
Rear brake caliper bleed screw
7
Rear brake hose to caliper
25
Rear brake master cylinder to frame
30
Encapsulated fixing
Rear brake master cylinder reservoir to battery box
5
Rear brake hose to master cylinder
25
Rear brake disc to axle shaft
22
Use new fixings
Footrests, Control Plates and Engine Mountings
Application
Torque(Nm)
Notes
Upper crankcase to frame
95
Lower crankcase to frame
95
Cylinder head to frame
95
Mounting bracket, frame to cylinder head, left hand
95
Mounting bracket, bracket to frame, left hand
30
Control plate to frame
30
Encapsulated fixing
Rear footrest hanger to frame
30
Side stand mounting bracket
40
Side stand pivot bolt
20
Front footrest to control plate
40
Encapsulated fixing
Electrical
Application
Torque(Nm) Notes
Alternator to crankcase
20
Alternator drive to alternator
44
Starter motor to crankcase
10
Side stand switch to bracket
5
Instruments to housing
6
1.24
