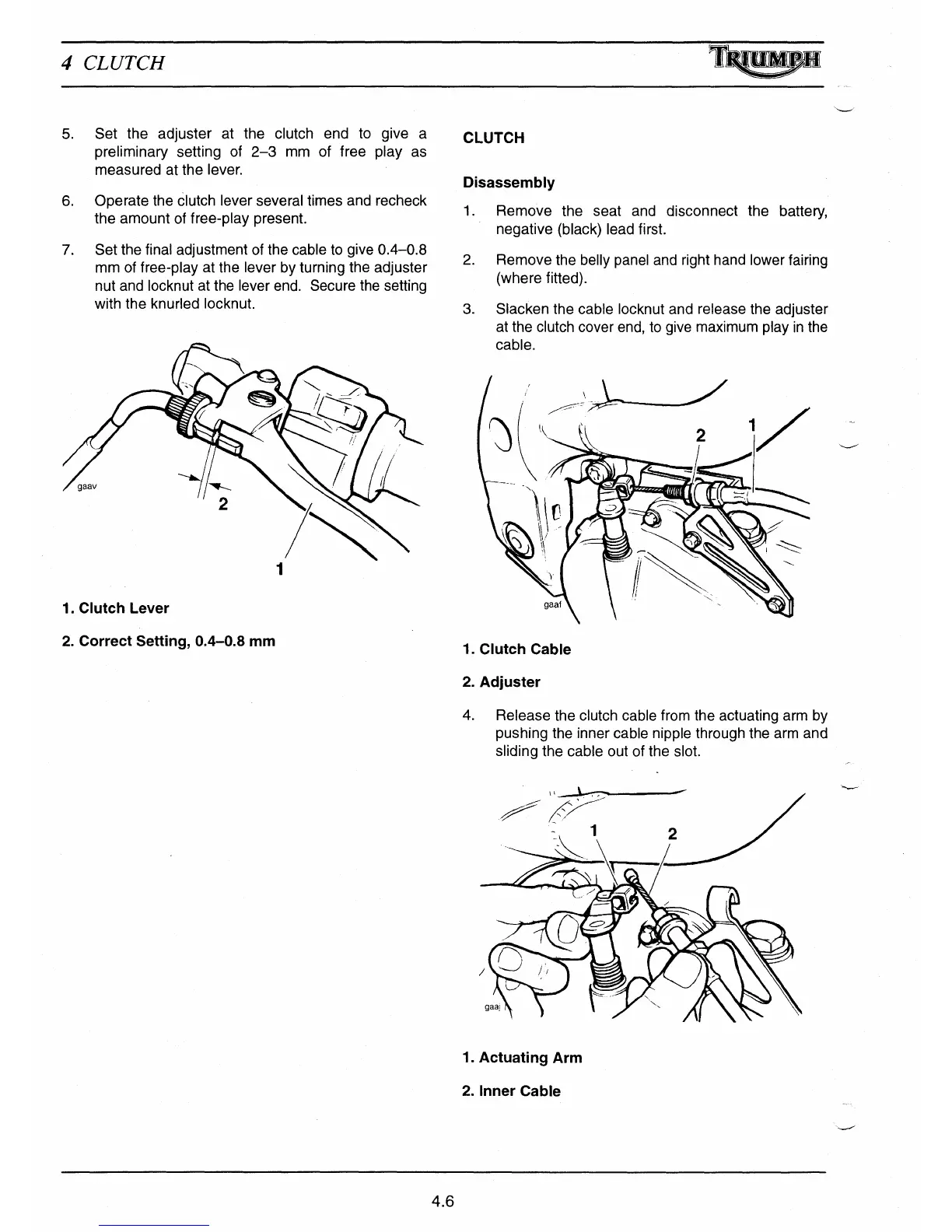

4 CLUTCH
TWMH
5.
Set the adjuster at the clutch end to give a
preliminary setting of 2-3 mm of free play as
measured at the lever.
6.
Operate the clutch lever several times and recheck
the amount of free-play present.
7.
Set the final adjustment of the cable to give 0.4-0.8
mm of free-play at the lever by turning the adjuster
nut and locknut at the lever end. Secure the setting
with the knurled locknut.
ii
1.
Clutch Lever
2.
Correct Setting, 0.4-0.8 mm
CLUTCH
Disassembly
1.
Remove the seat and disconnect the battery,
negative (black) lead first.
2.
Remove the belly panel and right hand lower fairing
(where fitted).
3.
Slacken the cable locknut and release the adjuster
at the clutch cover end, to give maximum play in the
cable.
1. Clutch Cable
2.
Adjuster
4.
Release the clutch cable from the actuating arm by
pushing the inner cable nipple through the arm and
sliding the cable out of the slot.
1.
Actuating Arm
2.
Inner Cable
4.6
