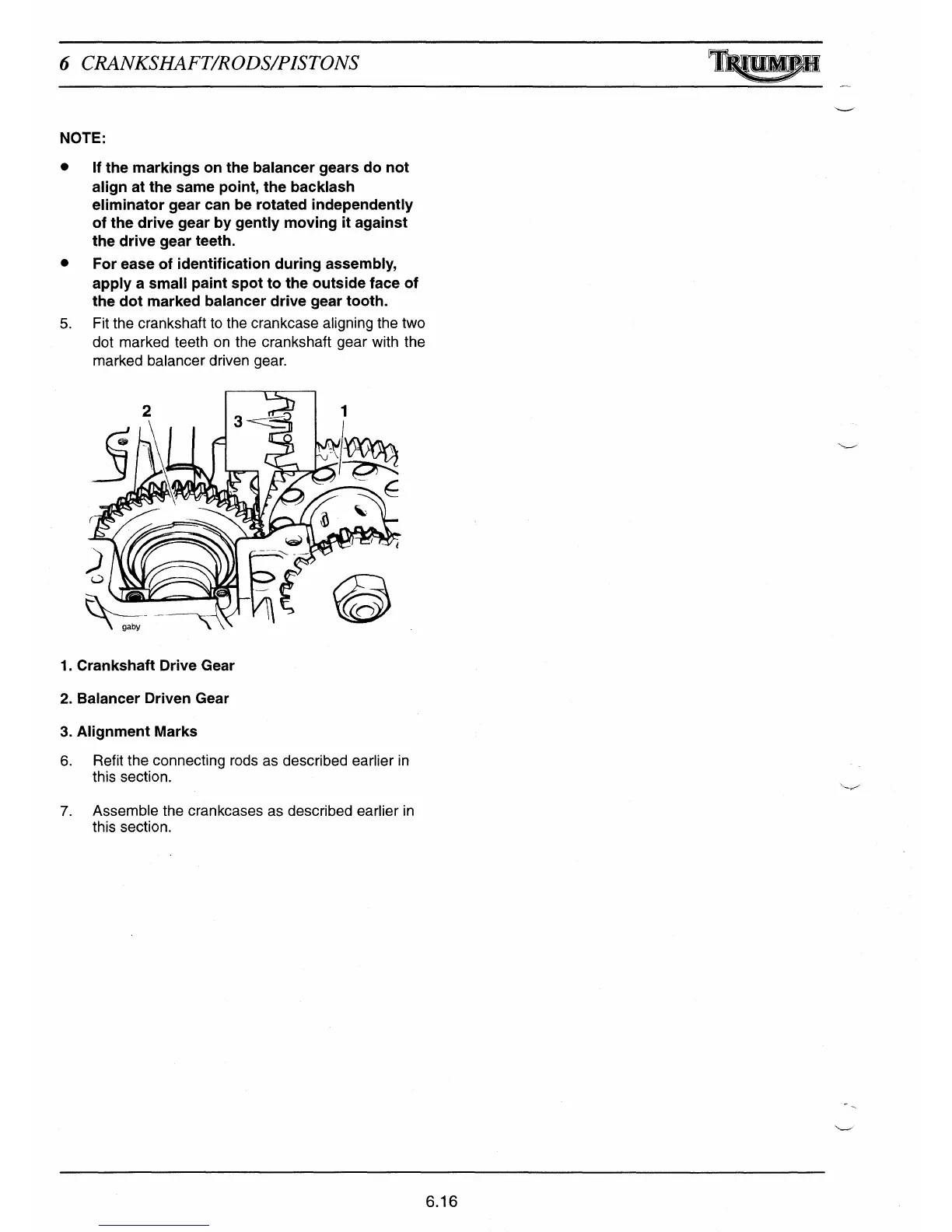

6 CRANKSHAFT/RODS/PISTONS
NOTE:
•
If the markings on the balancer gears do not
align at the same point, the backlash
eliminator gear can be rotated independently
of the drive gear by gently moving it against
the drive gear teeth.
•
For ease of identification during assembly,
apply a small paint spot to the outside face of
the dot marked balancer drive gear tooth.
5.
Fit the crankshaft to the crankcase aligning the two
dot marked teeth on the crankshaft gear with the
marked balancer driven gear.
1.
Crankshaft Drive Gear
2.
Balancer Driven Gear
3.
Alignment Marks
6.
Refit the connecting rods as described earlier in
this section.
7.
Assemble the crankcases as described earlier in
this section.
6.16
