Chapter 3: Locations Walkaround Models • Owner’s Manual Supplement
Baitwell Seawater Intake Seacock:
• 2002: Access is through the motor-well deck plate (see the Baitwell Systems view in Chapter 7: Plumbing).
• 2052: Access is through the motor-box (see the Baitwell Systems view in Chapter 7: Plumbing).
• 2302: Access is through the motor-well deck-plate (see the Baitwell Systems view in Chapter 7: Plumbing).
• 2352: Access is through the motor-box (see the Baitwell Systems view in Chapter 7: Plumbing).
• 2502: Access is through the forward motor-well deck-plate (see page 22 for location view).
Baitwell Y-valve:
• 2002/2052/2302/2352/: Located aft of the helm seat (see the Baitwell Systems view in Chapter 7: Plumbing).
• 2502: Access is through the starboard transom storage hatch. Lift the tub out of the storage hatch.
Carbon Monoxide Detector:
• 2002/2052/2302/2352: Located on the aft wall of the
cuddy cabin.
• 2502: Located on the starboard aft wall in the cabin.
Engine Circuit Breaker: Located on the engine (refer to the Engine Owner’s manual).
Fuel Fill Deck Fitting:
• 1802: Located on the aft port side of the deck, next to the motor-well (see page 17 for view of location).
• 2002: Located on the starboard side of the deck, above the steps leading to the deck trail (see page 18 for view
of location).
• 2052: Located on the starboard side of the deck, above the steps leading to the deck trail (see page 19 for view
of location).
• 2302: Located on the aft port side of the deck, next to the motor-well (see page 20 for view of location).
• 2352: Located on the starboard side of the deck, above the steps leading to the deck trail (see page 21 for view
of location).
• 2502: Located on the aft starboard side of the deck (see page 22 for view of location).
Fuel Tank:
• 1802: Access is through the motor-well deck plate (see page 17 for view of location).
• 2002/2052: Access is through the deck plate aft of the baitwell (see pages 18 & 19 for views of locations).
• 2302/2352: Access is through the deck plate aft of the baitwell (see pages 20 & 21 for view of location).
• 2502: Access is through the deck-plate in the cockpit floor between the helm and passenger seats (see page 22 for
view of location).

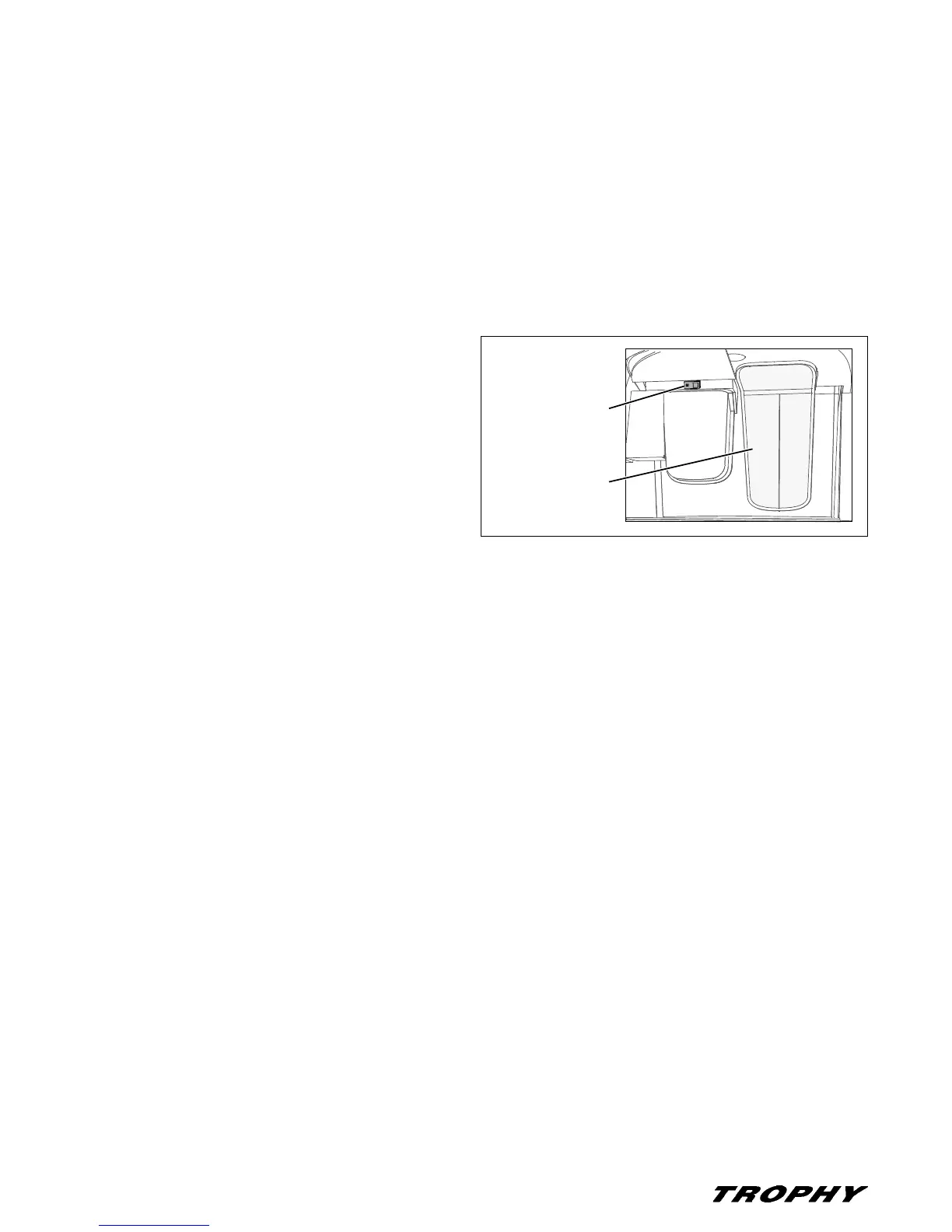

ENTRY DOOR
CARBON MONOXIDE
DETECTOR
