Trophy 1802 - Electrical Harness Routing (Deck Views)

80
Chapter 12: Electrical System Walkaround Models • Owner’s Manual Supplement
Electrical Routings

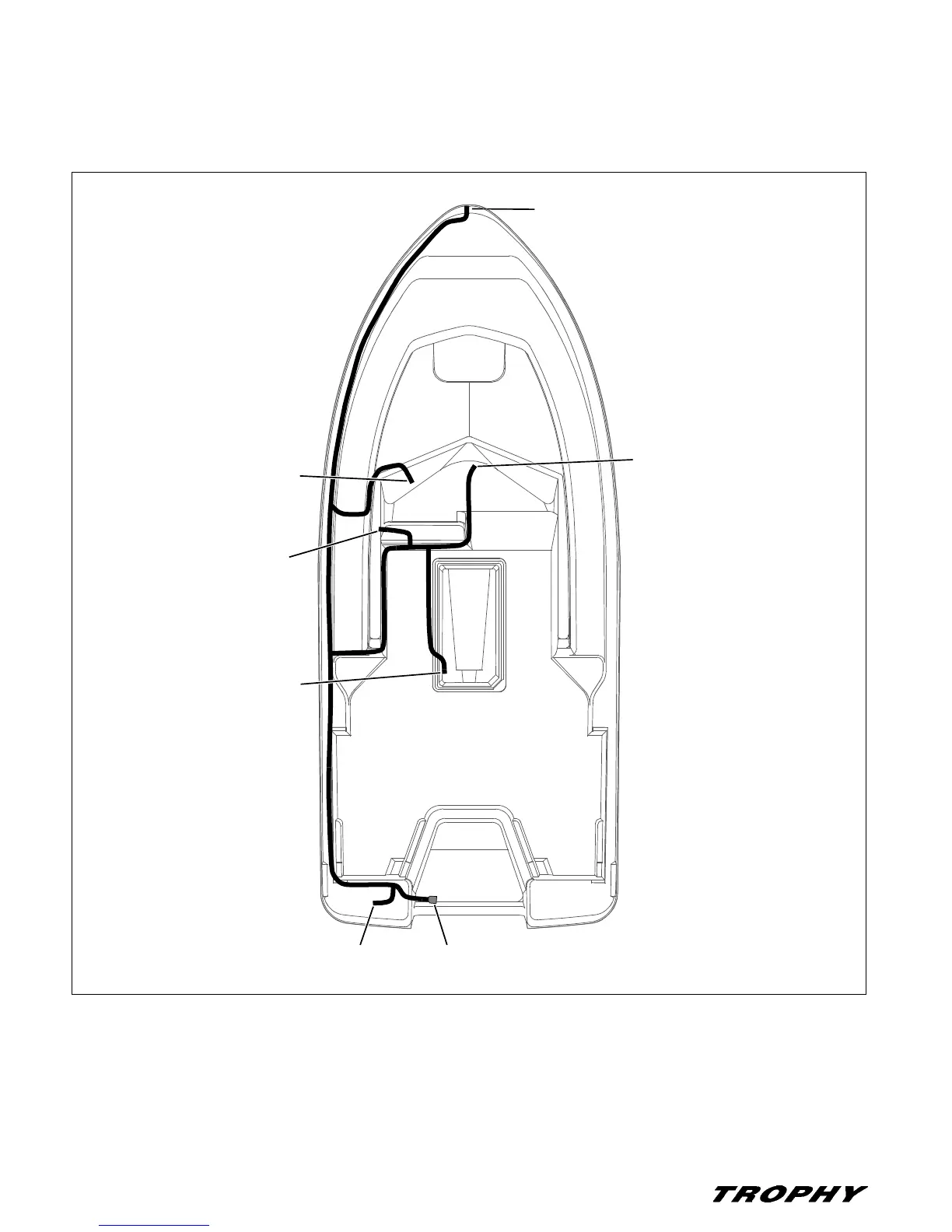

Deck Electrical Harness Views
1802
NOTE: VIEW IS UNDERSIDE OF DECK
NAVIGATION
LIGHT
DASH
ALL-AROUND
LIGHT
ENGINE
PLUG
WIPER
OVERHEAD
LIGHT
SUMP
PUMP
