Chapter 7: Plumbing Walkaround Models • Owner’s Manual Supplement
2302 Baitwell System

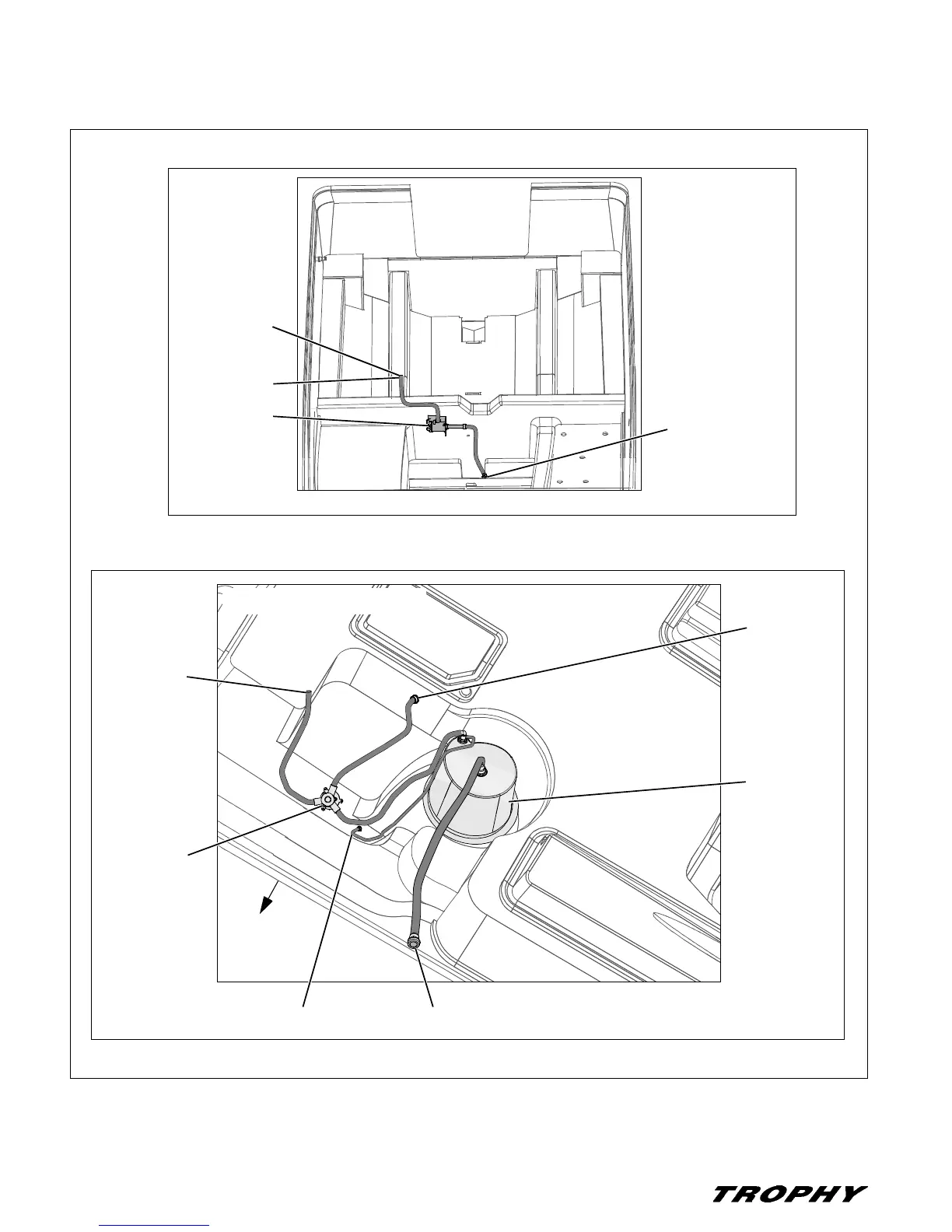

Hull & Deck Views
PICKUP PUMP
NOTE: VIEW IS UNDERSIDE OF DECK
STARBOARD
HULL ROUTING
DECK ROUTING
SEAWATER PICKUP
& SEACOCK
FROM PICKUP
PUMP
Y-VALVE
(IF EQUIPPED)
AERATOR VENT DRAIN THRU-HULL
SEAWATER
WASHDOWN
DECK FITTING
(IF EQUIPPED)
BAITWELL
TANK
TO BAITWELL
(STANDARD)
TO Y-VALVE
(PRO PACK)
