Walkaround Models • Owner’s Manual Supplement Chapter 7: Plumbing
Filling & Using the Baitwell
1. Insert the rubber end of the
drain standpipe into the drain
fitting at the bottom of
the tank.
2. If equipped, turn the y-valve to
the baitwell position.
3. Open the seawater
intake seacock.
4. On the main switch panel, turn
On the baitwell switch.
The tank should now be filling
with water. If water is not pumping
into the tank, possible causes are:
• A collapsed hose or clogging
debris in the system.
• The y-valve is turned to the
wrong position.
• The seacock is Closed.
• The baitwell fuse is blown.
Seawater Washdown System
1. Turn the y-valve to the wash-
down position.
2. Open the seawater
intake seacock.
3. On the main switch panel, turn
On the baitwell pump switch.
SEAWATER
PICKUP PUMP
DRAIN
THRU-HULL
STANDPIPE

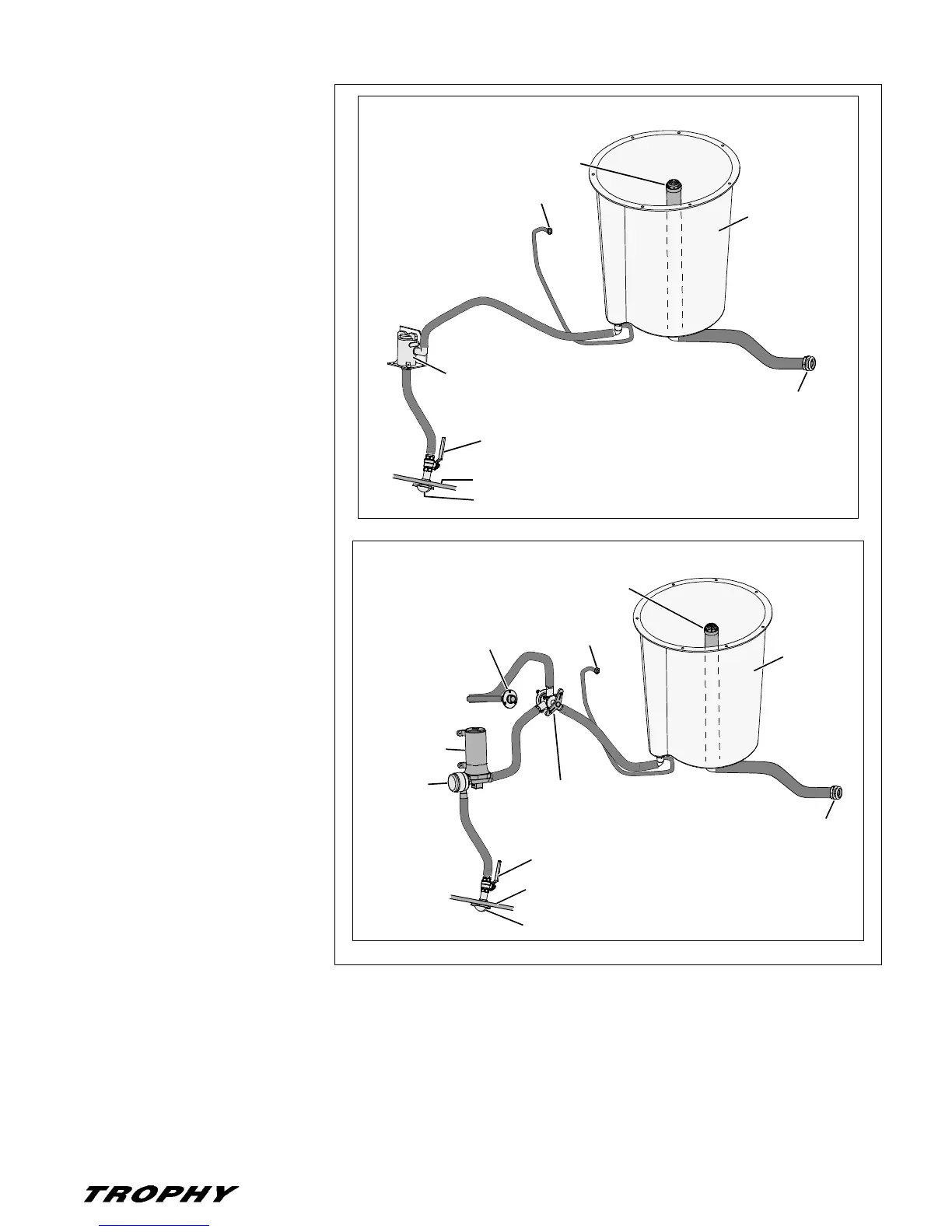

STANDARD BAITWELL SYSTEM
CUT-AWAY VIEW
OF HULL BOTTOM
SEAWATER STRAINER
SEAWATER PICKUP
SEACOCK
WASHDOWN
DECK FITTING
SEAWATER
PICKUP PUMP
DRAIN
THRU-HULL
SEAWATER
FILTER
BAITWELL
& WASHDOWN
Y-VALVE
STANDPIPE
PROPACK OPTION BAITWELL SYSTEM
CUT-AWAY VIEW
OF HULL BOTTOM
SEAWATER STRAINER
SEAWATER PICKUP
SEACOCK
AERATOR VENT
AERATOR
VENT
BAITWELL
TANK
BAITWELL
TANK
