Chapter 8: Deck Equipment Walkaround Models • Owner’s Manual Supplement

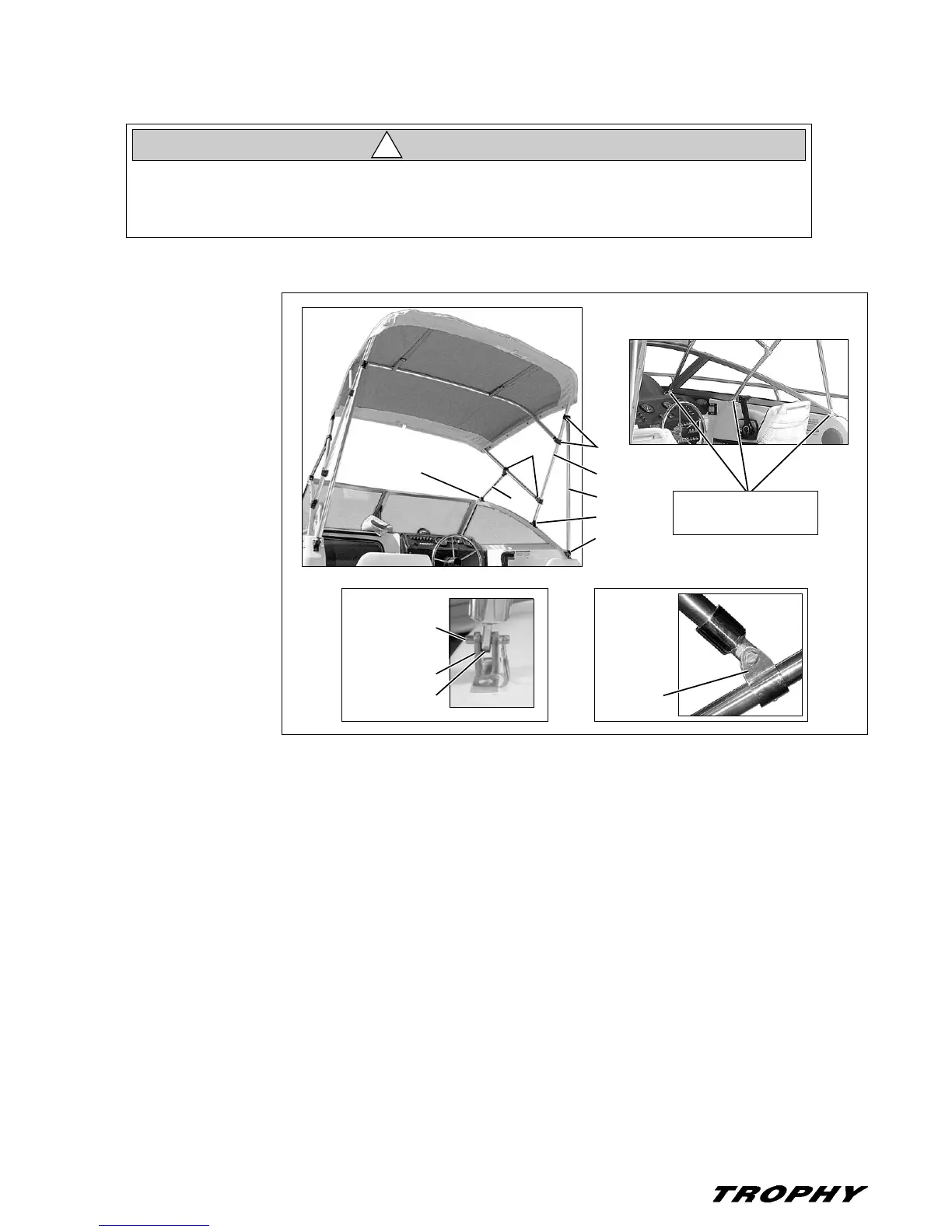

Canvas (If Equipped)
Installing the Canvas
1. Slide the end eyes of the
main bow (A) into the
mid deck hinges (B) and
secure with the pins.
2. Slide the end eyes of
the forward braces (C)
into the forward deck
hinges (D) and secure
with the pins.
3. Slide the end eyes of the
aft braces (E) into the aft
deck hinges (F) and
secure with the pins.
• The jawslides (G) are pre-
set during manufacturing
and should not need to
be adjusted.
• Before attempting to
adjust the jaw slide posi-
tions, obtain the correct
measurements from your
selling dealer.
PRODUCT or PROPERTY DAMAGE HAZARD!
• Canvas tops are not designed to withstand speeds over 45 MPH.
• Take down and securely stow the canvas top before transporting your boat by road.
CAUTION
!
G
C
D
E
F
A
B
END EYE
SECURING PIN
DECK HINGE
JAW SLIDE
NOTE:
SOME HINGES MAY BE
LOCATED ON DECK
G
