Chapter 7: Plumbing Walkaround Models • Owner’s Manual Supplement
2052 Baitwell System

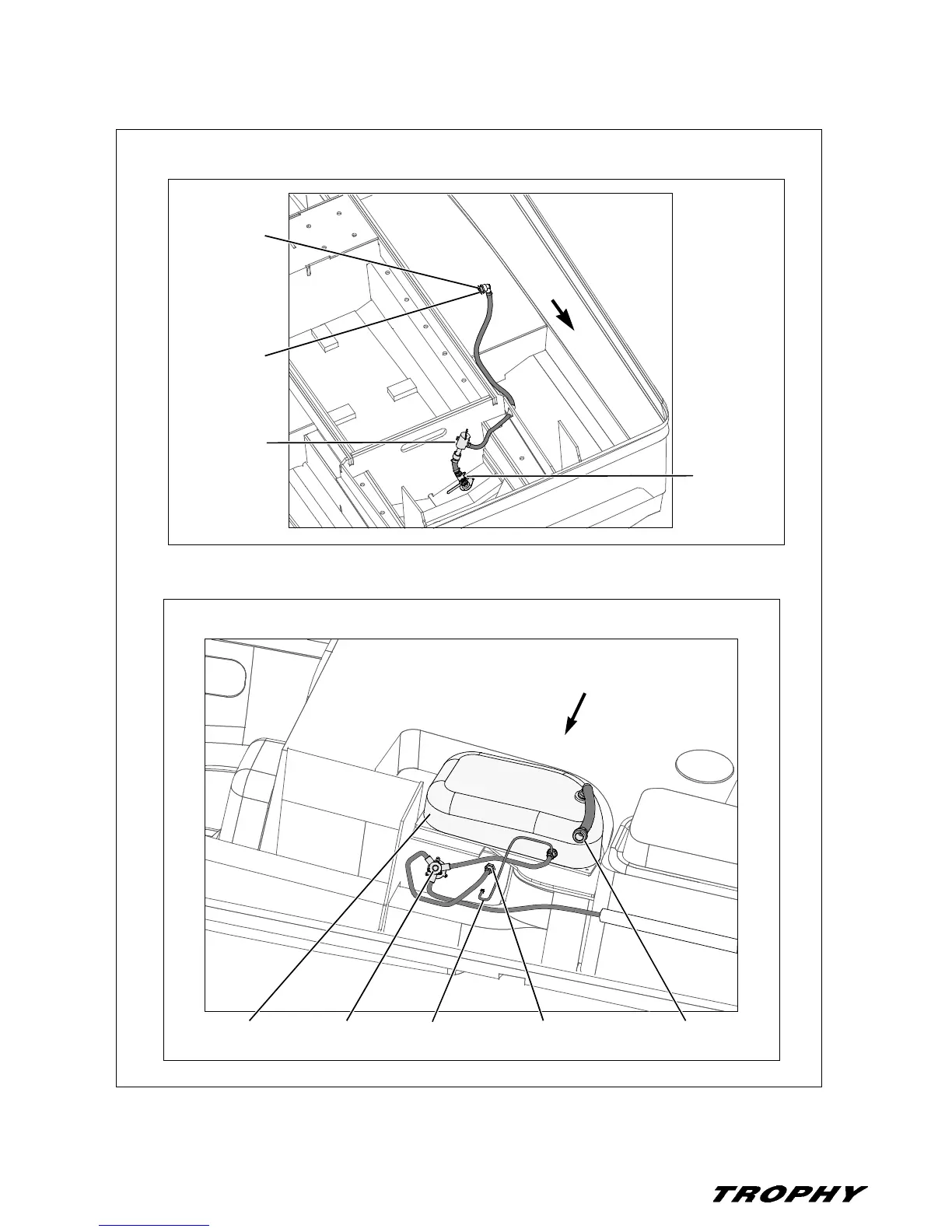

Hull & Deck Views
AFT
PICKUP PUMP
TO Y-VALVE
HULL ROUTING
AERATOR
STARBOARD
NOTE: VIEW IS UNDERSIDE OF DECK
SEAWATER WASHDOWN
DECK FITTING (IF EQUIPPED)
Y-VALVE
(IF EQUIPPED)
VENT
DECK ROUTING
SEAWATER
PICKUP &
SEACOCK
DRAIN
THRU-HULL
BAITWELL
TANK
(PRO PACK)
TO BAITWELL
(STANDARD)
