53
Walkaround Models • Owner’s Manual Supplement Chapter 7: Plumbing
Filling & Using the Baitwell
1. Insert the rubber end of the drain
standpipe into the drain fitting at
the bottom of the tank.
2. If equipped, turn the y-valve to
the baitwell position.
3. Open the seawater
pickup seacock.
4. On the main switch panel, turn
On the baitwell switch.
The tank should now be filling with
water. If water is not pumping into the
tank, possible causes are:
• A collapsed hose or clogging
debris in the system.
• The y-valve is turned to the
wrong position.
• The seacock is Closed.
• The baitwell fuse is blown.
Seawater Washdown System
1. Turn the y-valve to the wash-
down position.
2. Open the seawater
intake seacock.
3. On the main switch panel, turn
On the baitwell pump switch.

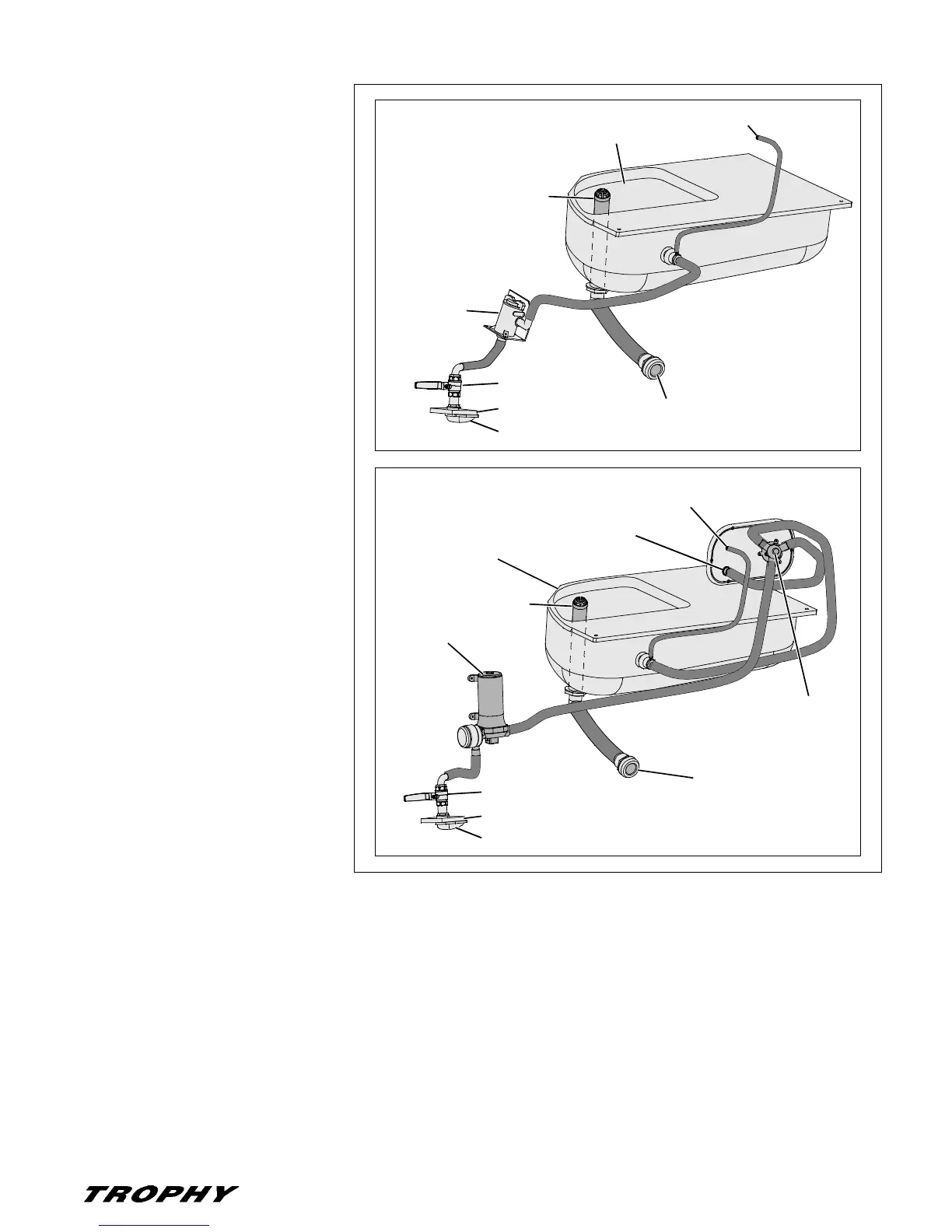

AERATOR VENT
SEAWATER
PICKUP PUMP
DRAIN
THRU-HULL
STANDPIPE
SEAWATER PICKUP
SEACOCK
CUT-AWAY VIEW
OF HULL BOTTOM
SEAWATER STRAINER
STANDARD BAITWELL SYSTEM
AERATOR VENT
BAITWELL &
WASHDOWN
Y-VALVE
DRAIN THRU-HULL
STANDPIPE
SEAWATER PICKUP
SEACOCK
CUT-AWAY VIEW
OF HULL BOTTOM
SEAWATER STRAINER
SEAWATER
PICKUP PUMP
PROPACK OPTION BAITWELL SYSTEM
BAITWELL TANK
BAITWELL TANK
WASHDOWN
DECK FITTING
