Trophy 1802 - 2502 Baitwell System

60
Chapter 7: Plumbing Walkaround Models • Owner’s Manual Supplement
2502 Baitwell System

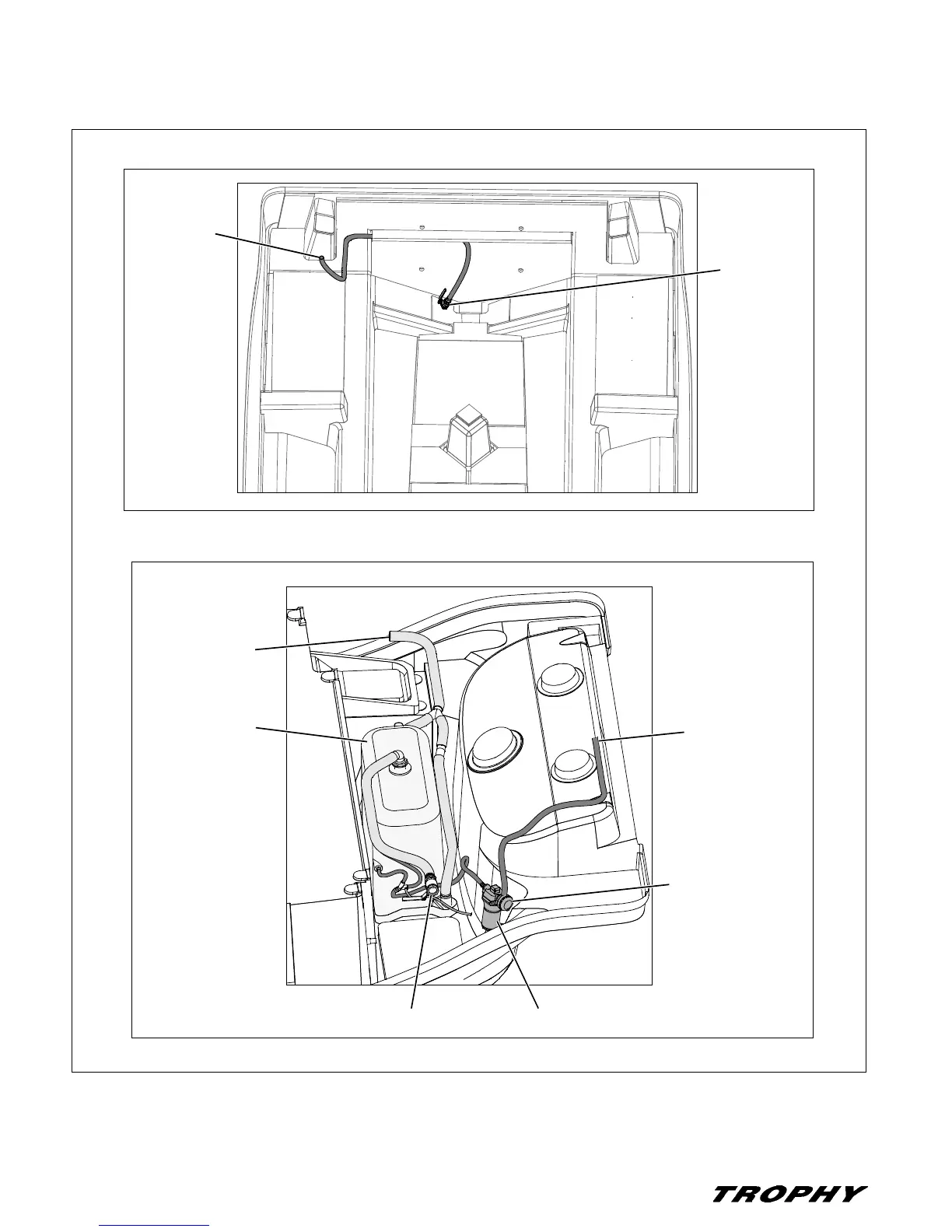

Hull & Deck Views
SEAWATER
PICKUP &
SEACOCK
PICKUP
PUMP
NOTE: VIEW
FROM SEAWATER
PICKUP & SEACOCK
SEAWATER PUMP
SEAWATER FILTER
HULL ROUTING
DECK ROUTING
IS UNDER-
SIDE OF DECK
DRAIN SEACOCK
OVERFLOW
DRAIN
BAITWELL TANK
