Walkaround Models • Owner’s Manual Supplement Chapter 12: Electrical System
12-Volt DC System
Batteries
The batteries supply electricity for lights, accessories, and engine starting.
The Electrical section of Chapter 8, in the Sport Boat Owner’s Manual, provides battery, care and
maintenance instructions.
Fuses and Circuit Breakers
• Fuses and circuit breakers for engines and main accessory power are on the DC main distribution panel and on the
battery switch panel.
• Some equipment may have secondary fuse protection at the unit, behind the battery switch panel or at
the batteries.
• Electronics power is provided at the helm station.

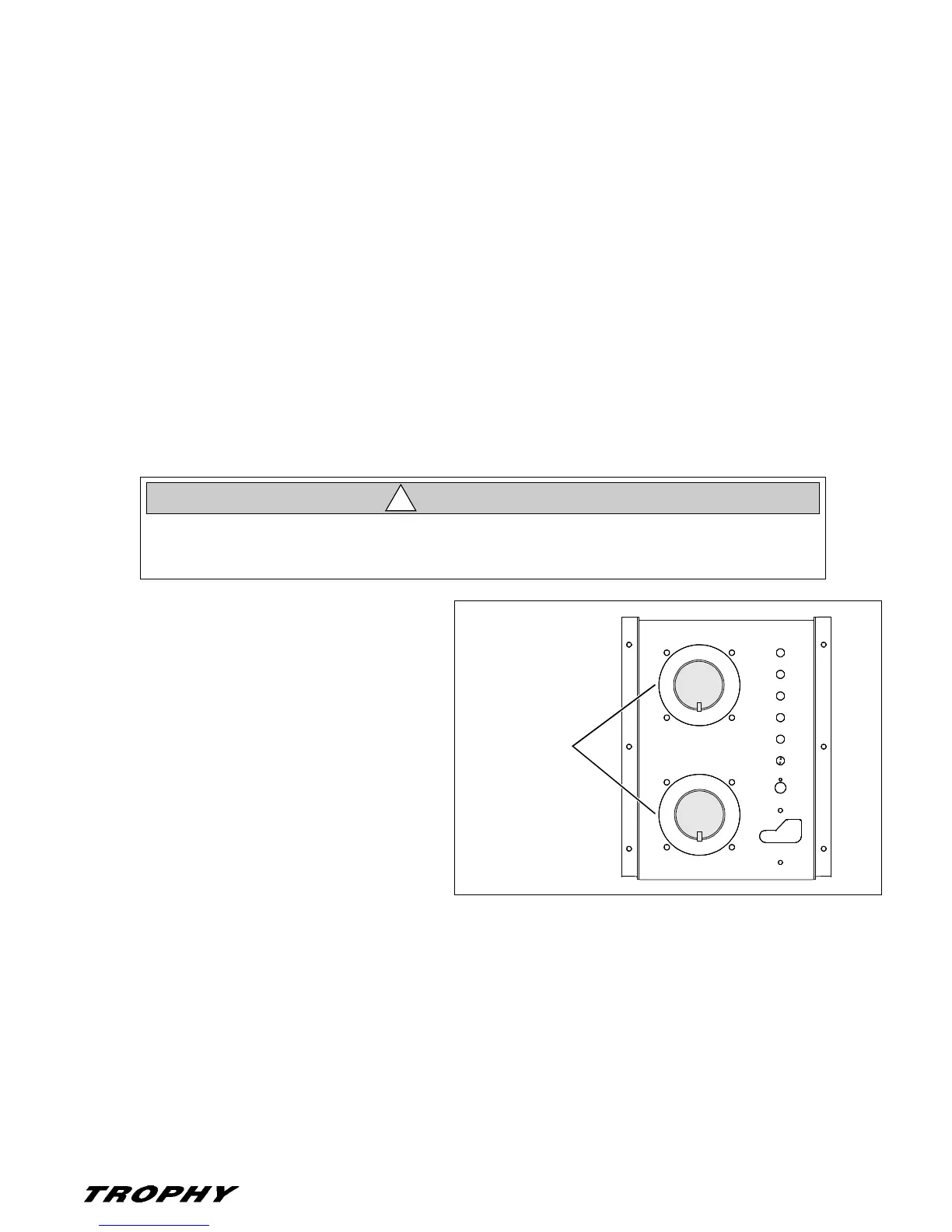

Battery Switches
• A separate rotary battery switch is provided for
each battery.
• Some "Standby Loads", such as the CO moni-
tors, the automatic bilge pumps, and the stereo
memory, are not affected by the battery switch
since they are wired directly to the battery (see
the Wiring Diagrams in this Owner’s Manual for
more details).
• The parallel switch should be turned On only in emergencies.
• Never disconnect the battery cables or turn Off the main battery switches while engines are
running as this can cause damage to your boat’s electrical components
CAUTION
!
BATTERY
SWITCHES
1
BOTH
2
OFF
1
BOTH
2
OFF
