27
Walkaround Models • Owner’s Manual Supplement Chapter 3: Locations
Component Locations
12-Volt Accessory Outlet: Located at the helm, next to or below the ignition switch.
• 2502: Located at the helm and in the cabin below the entry step.
All-Around Light:
• 1802: The socket for the removable all-around light is located on the aft starboard deck next to the motor-well
(see page 17 for view of location).
• 2002/2052: The socket for the removable all-around light is located on the center aft deck (see deck views on
pages 18 & 19).
• 2302/2352: The socket for the removable all-around light is located on the center aft deck (see deck views on
pages 20 & 21).
• 2502: The all-around light is located on the windshield (see deck views on page 22).

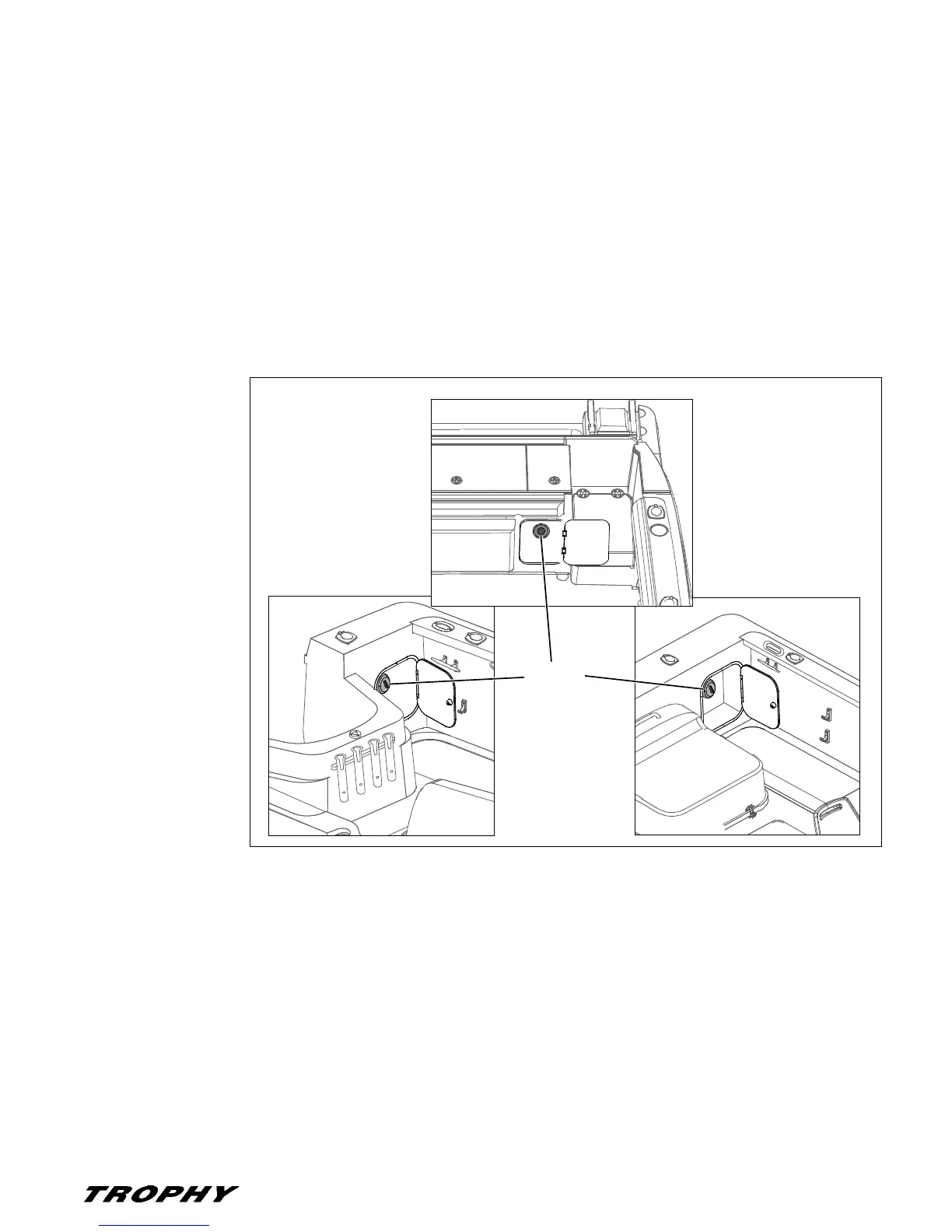

Battery Switch:
Located in the port aft
storage compartment
in the cockpit.
Bilge Pump(s):
• 1802: Aft bilge pump access is through the motor-well deck-plate (see page 17 for view of location). Forward
bilge pump access is under the cuddy cabin entry step.
• 2002: Aft Bilge pump access is through the motor-well deck-plate (see page 18 for view of location). Forward
bilge pump access is through the floor hatch inboard of the cuddy cabin entry step.
• 2052: Aft bilge pump access is through the motor-box (see page 19 for view of location). Forward bilge pump
access is through the floor hatch inboard of the cuddy cabin entry step.
• 2302: Aft bilge pump access is through the motor-well deck-plate (see page 20 for view of location). Forward
bilge pump access is through the floor hatch inboard of the cuddy cabin entry step.
• 2352: Aft bilge pump access is through the motor-box (see page 21 for view of location). Forward bilge pump
access is through the floor hatch inboard of the cuddy cabin entry step.
• 2502: Aft bilge pump access is through the motor-well deck-plate (see page 22 for view of location). Forward
bilge pump access is through the utility room access hatch in the cabin.
BATTERY
SWITCH
1802/2002/2302
2052/2352
2502
